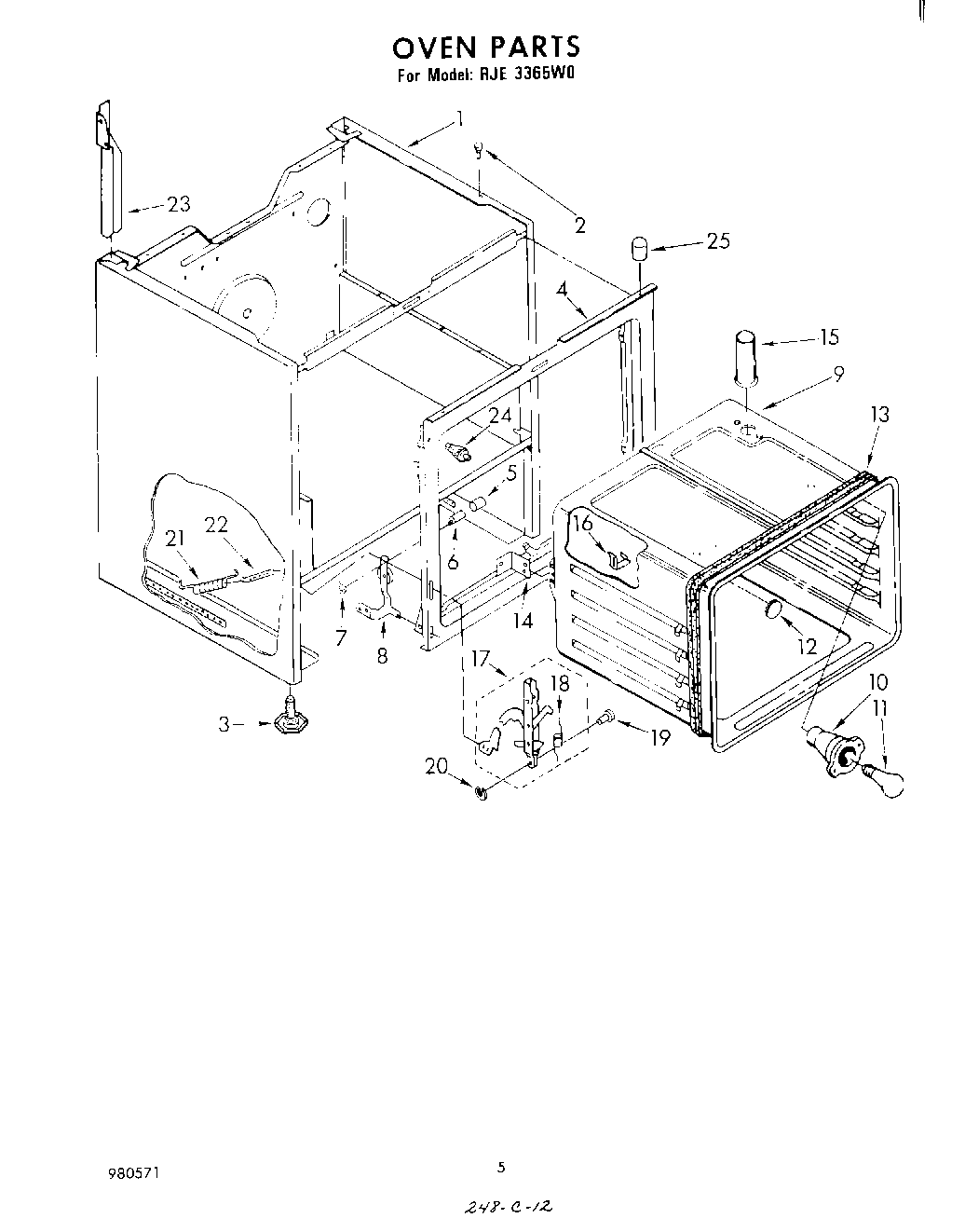

RJE3365W0 04 – OVEN

Products

Position	Product
1	Main Chassis (Coffee)
1	main chassis (almond)
1	Lining-Compartment Door (16331A,2A
1	Griddle Cover (Almond 1633L1A, L2A)
1	WPL 327872
2	238614 Whirlpool Bumper Hinge
3	WP233550 Whirlpool Leveling Feet
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Snubber, Door (2)
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
8	SCREW
9	oven (30“ continous clean)
9	Screw (3)
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light (Alt.)
10	Screw (10-12 x .875)
11	RANGE ONLY 40W 120V APPL BULB
12	Plug Button
13	Heat Seal
14	W10841059 Whirlpool Screw
14	Bracket, Oven (Mounting)
15	Vent, Oven
15	WP308685 Whirlpool Microwave Screw
16	98005642 Whirlpool Clip
17	Channel Arm (2)
18	Spring, Door Stop
19	WP307986 Whirlpool Hinge Pin
20	Retainer Ring (2)
21	Spring, Oven Door (2)
22	WP308125 Whirlpool Microwave Range/Cooktop Anchor
23	Support, Channel (R.H.)
23	Support, Channel (L.H.)
24	Switch, Door
25	Screw, 8-32 x 5/16 (2)
25	locator, cooktop
