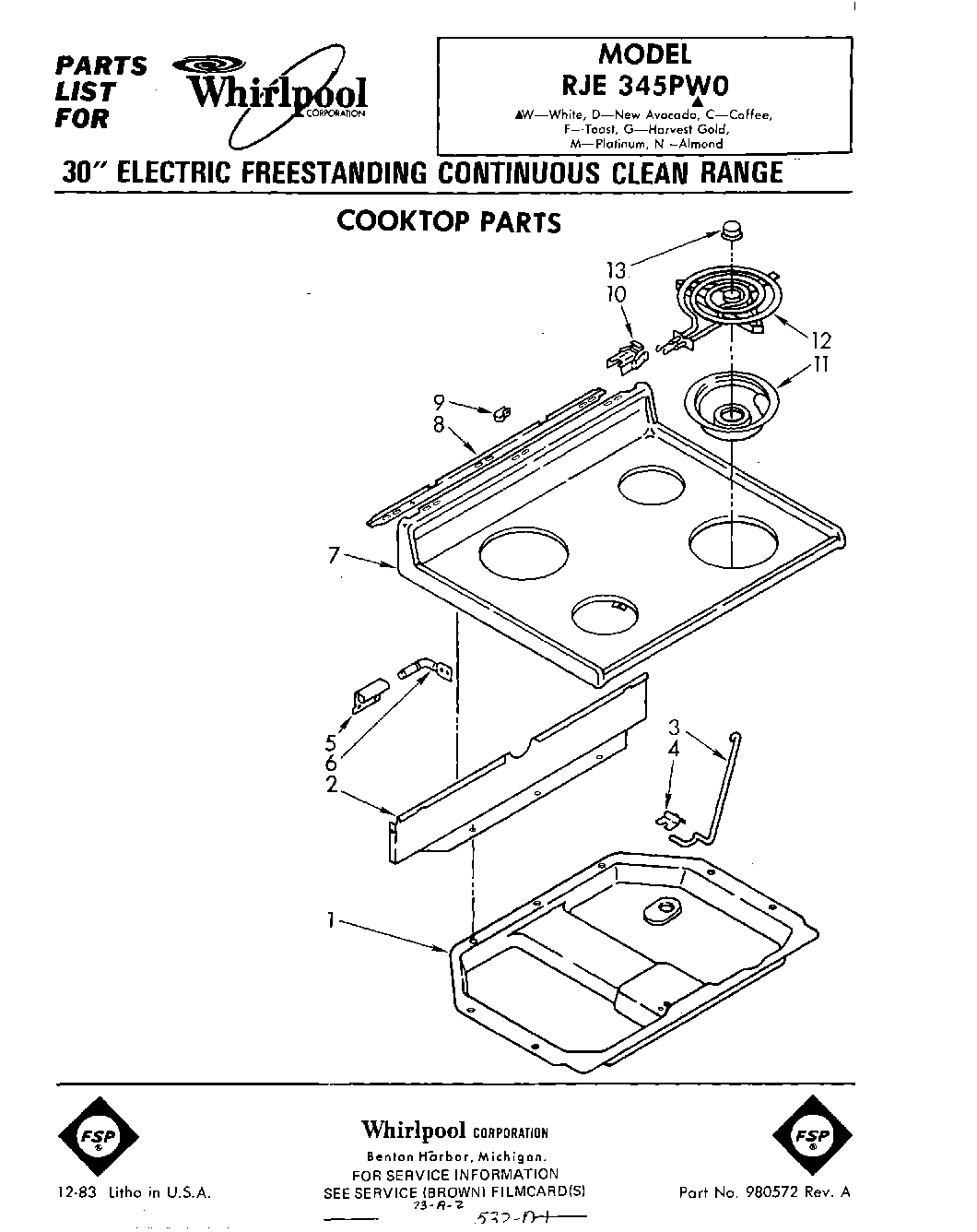

RJE345PW0 01 – COOKTOP

Products

PositionProduct
1Burner Box
2SCREW
2Shield, Wiring
3Rod, Cooktop
4WP3390631 Whirlpool Screw
4Retainer, Cooktop
5Bracket, Cooktop (2)
6Pin, Cooktop (2)
7Cooktop (New Avocado)
7Cooktop (Coffee)
7Cooktop (Platinum)
7Cooktop (Toast)
7Cooktop (Almond)
7Cooktop (White)
7Cooktop (Harvest Gold)
8Barrier
9WP308605 Whirlpool Refrigerator Clamp
9WP308544 Whirlpool Screw
10WP313808 Whirlpool Screw
10BURNER RECEPTACLE KIT
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12WP660533 Whirlpool Oven 8" Surface Element
12WP660532 Whirlpool Oven Surface Element
13Medallion (4)
