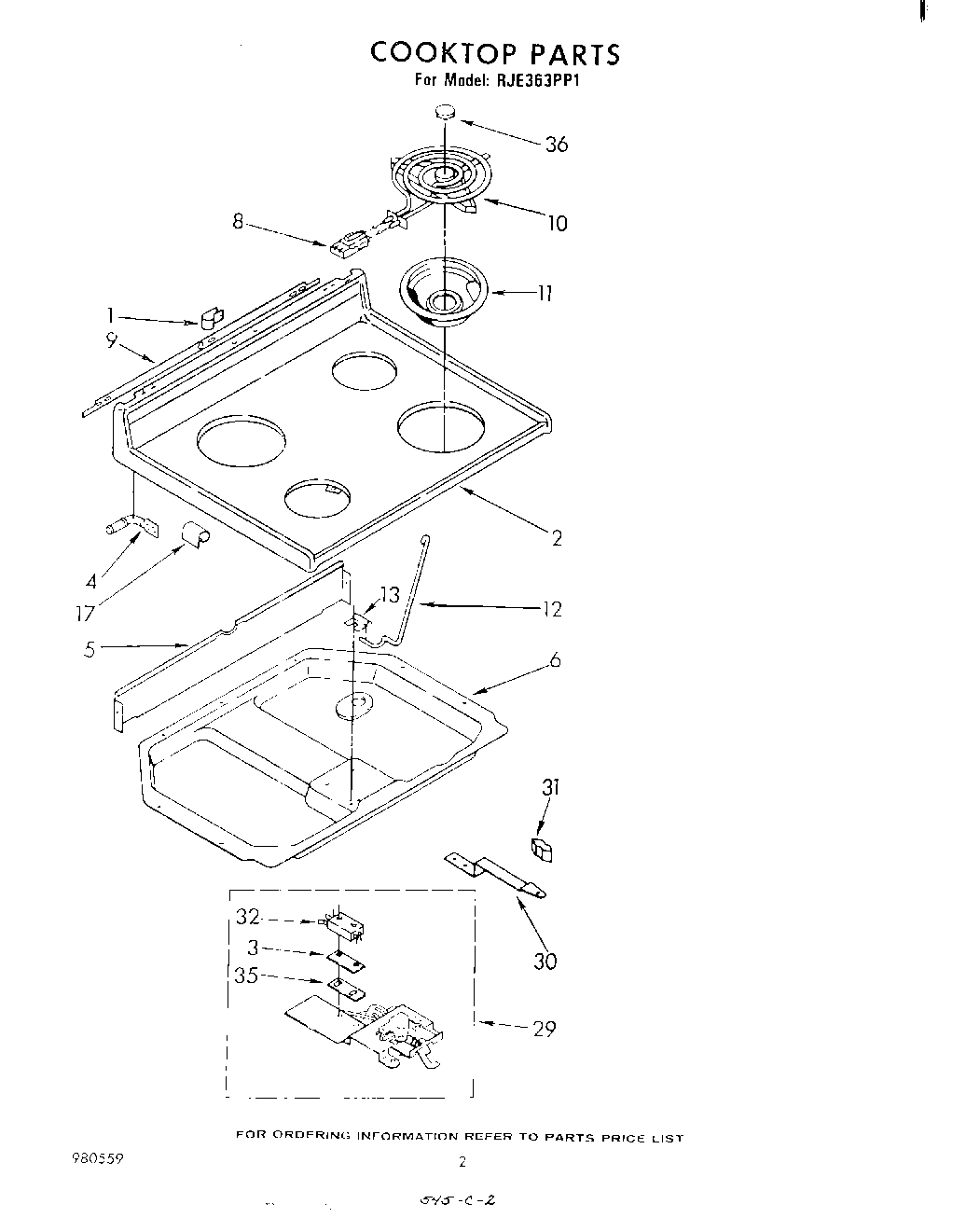

RJE363PP1 02 – COOK TOP

RJE363PP1 02 – COOK TOP

Written by

in

RJE363PP1 02 – COOK TOP

Products

PositionProduct
1WP308605 Whirlpool Refrigerator Clamp
2Cooktop (Chrome)
3Insulator, Switch
4Pin, Cooktop (2)
5Shield, Wiring
5Screw
6Burner Box
8WP486754 Whirlpool Compactor Screw
8BURNER RECEPTACLE KIT
9Barrier
10WP660532 Whirlpool Oven Surface Element
10WP660533 Whirlpool Oven 8" Surface Element
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12Rod, Cooktop
13WP3390631 Whirlpool Screw
13Retainer, Cooktop
17Bracket, Cooktop (2)
17WP308544 Whirlpool Screw
29SCREW
29Latch Assembly
30Screw (3)
30Screw
30Handle, Latch
31Knob, Latch
31WP488627 Whirlpool Refrigerator Screw
32Screw
32Safety Switch
35Terminal
36Medallion (4)
