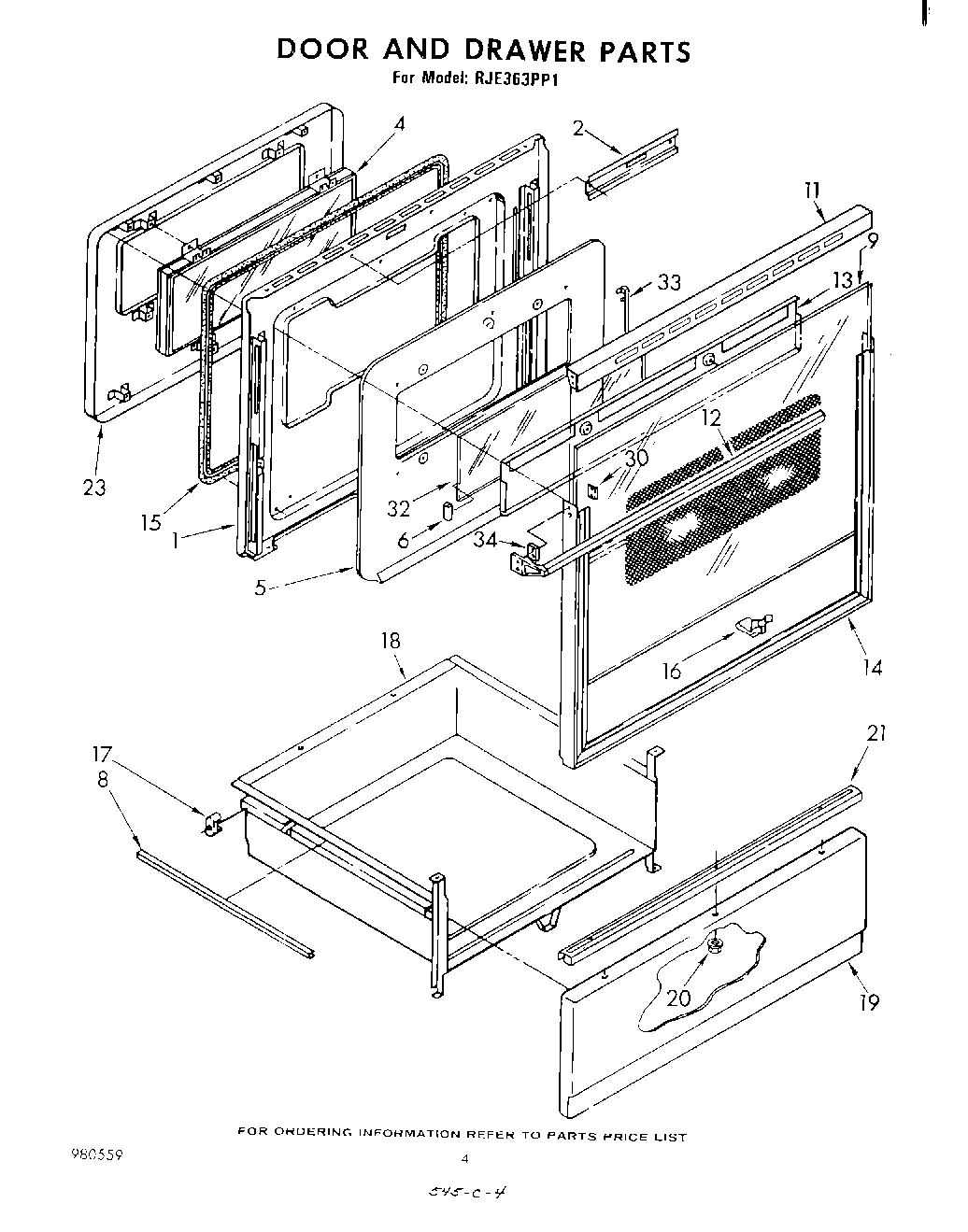

RJE363PP1 04 – DOOR AND DRAWER

Products

Position	Product
1	Clip (2)
1	Griddle Cover (Avocado 1633A1A, A2A)
1	Screw (3)
2	Channel, Latch
2	Screw (2)
4	Window Package
5	Retainer, Insulation
6	Seal, Foam
8	Protector, Drawer (2)
9	Glass, Outer
11	Top, Door Frame
11	Screw, 10A x 1/2 (2) (Black)
12	Handle, Door
13	WP90296 Whirlpool Clip
13	Baffle, Heat
14	frame, door 30“
15	Seal, Fiberglass
16	clip, glass (10)
17	WP308685 Whirlpool Microwave Screw
17	Glide, Rear (2)
18	Drawer, Utility
19	Panel, Drawer (Screw, 8-32 (3))
19	Panel Drawer (Black)
20	WP486255 Whirlpool Air Conditioner Nut
21	WP912618 Whirlpool Dishwasher Screw
21	Handle, Drawer
23	Panel, Inner
30	screw (3)
32	Glass (6.81“ x 18.31“)
33	Retainer, Glass (2)
34	Spacer, Door Handle (2)
