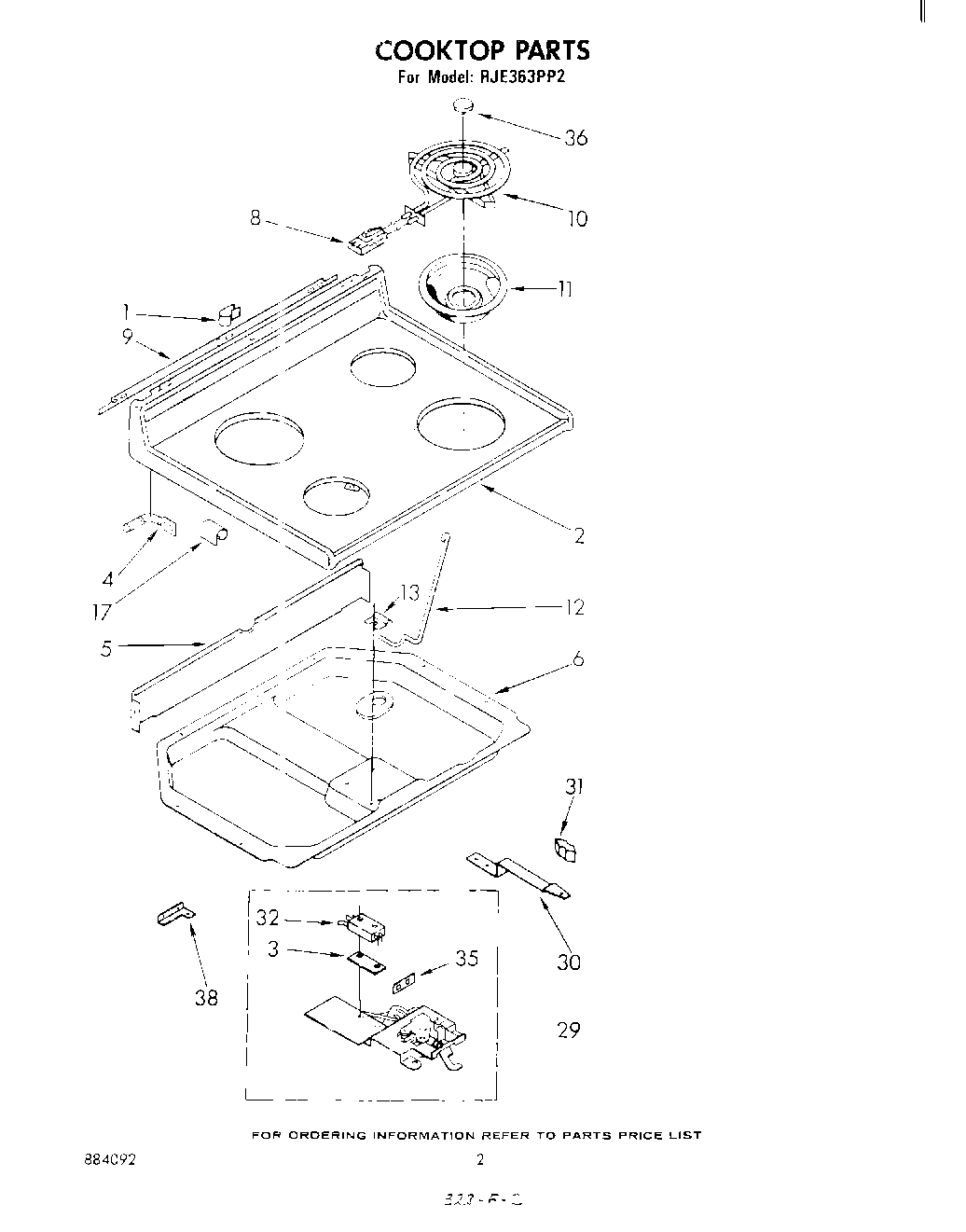

RJE363PP2 02 – COOKTOP

Products

Position	Product
1	WP308605 Whirlpool Refrigerator Clamp
2	Cooktop (Chrome)
3	Insulator, Switch
4	Pin, Cooktop (2)
5	Shield, Wiring
6	Burner Box
8	BURNER RECEPTACLE KIT
9	Barrier
10	WP660532 Whirlpool Oven Surface Element
10	WP660533 Whirlpool Oven 8" Surface Element
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11	DRIP BOWL 8" W/HOLE CHROME
12	Rod, Cooktop
13	Retainer, Cooktop
13	WP3390631 Whirlpool Screw
17	Bracket, Cooktop (2)
29	SCREW
29	Latch Assembly
30	Screw
30	Screw
30	Handle, Latch
31	WP488627 Whirlpool Refrigerator Screw
31	Knob, Latch
32	Safety Switch
32	Screw
35	Shield, Latch
35	WP313808 Whirlpool Screw
36	Medallion (4)
38	WPL 312320
38	Screw, 10A x 1/2 (2) (Black)
