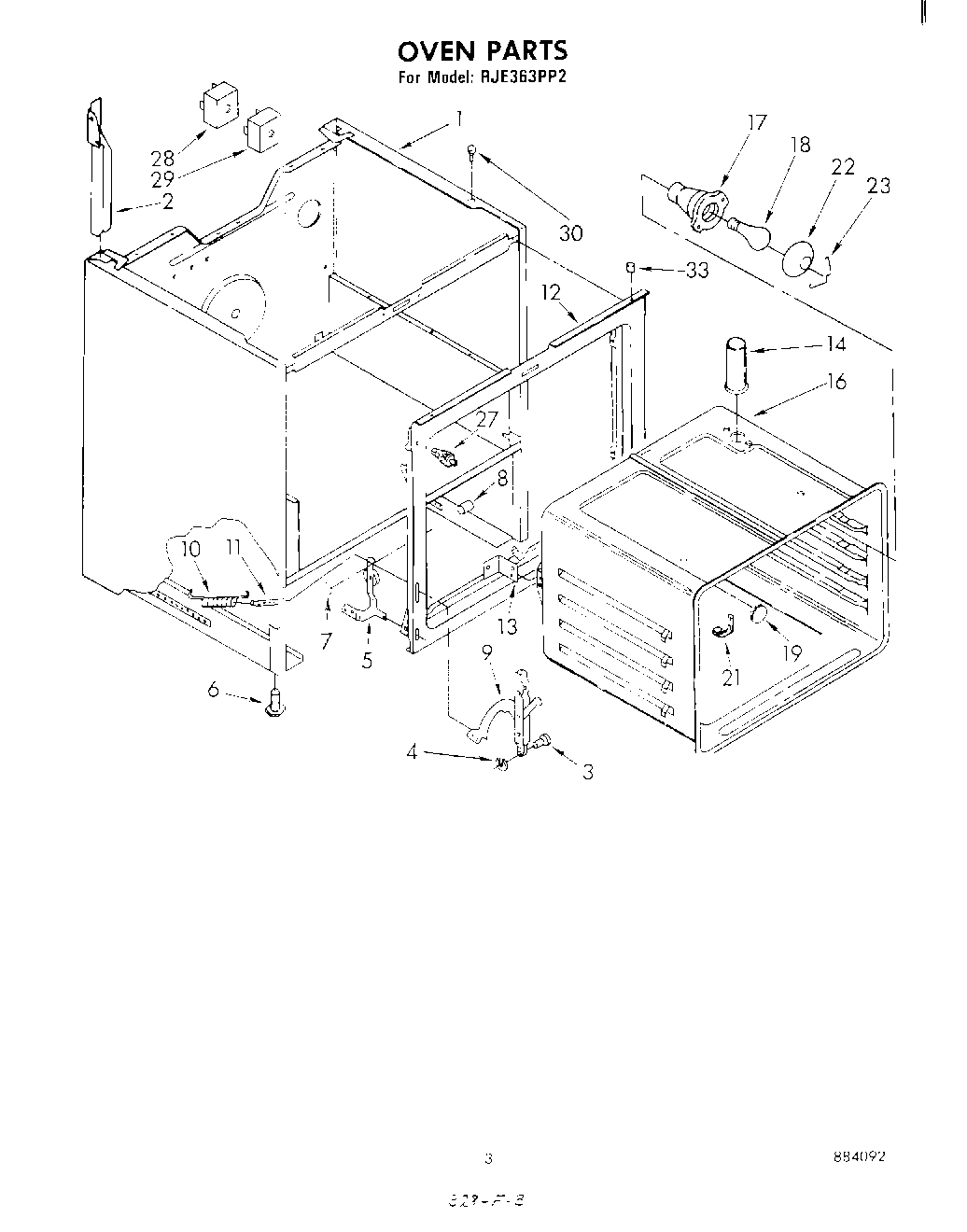

RJE363PP2 03 – OVEN

RJE363PP2 03 – OVEN

Written by

in

RJE363PP2 03 – OVEN

Products

PositionProduct
1Main Chassis (Platinum)
2Support, Channel (L.H.)
2Support, Channel (R.H.)
3WP307986 Whirlpool Hinge Pin
4Retainer Ring (2)
5Hinge (L.H.)
5Hinge (R.H.)
5SCREW
6WPW10058460 Whirlpool Appliance Levelling Leg
7Pushnut (2)
8Pin, Hinge Ear (2)
9Channel, Arm (2)
10WP308126 Whirlpool Door Spring
11WP308125 Whirlpool Microwave Range/Cooktop Anchor
12Frame, Front
13Bracket, Oven (Mounting)
14Vent, Oven
14Screw, 10A x 1/2 (2) (Black)
16Oven (30“ Pyro)
16Screw (3)
17Screw (10-12 x .875)
17Socket, Oven Light (Alt.)
17Socket, Oven Light (Alt.)
18RANGE ONLY 40W 120V APPL BULB
19Plug Button
2198005642 Whirlpool Clip
22Cover, Light
23Retainer, Light
27Switch, Door
28Switch, Broil
29Switch, Bake
30238614 Whirlpool Bumper Hinge
33locator, cooktop
33Screw, 8-32 x 5/16 (2)
