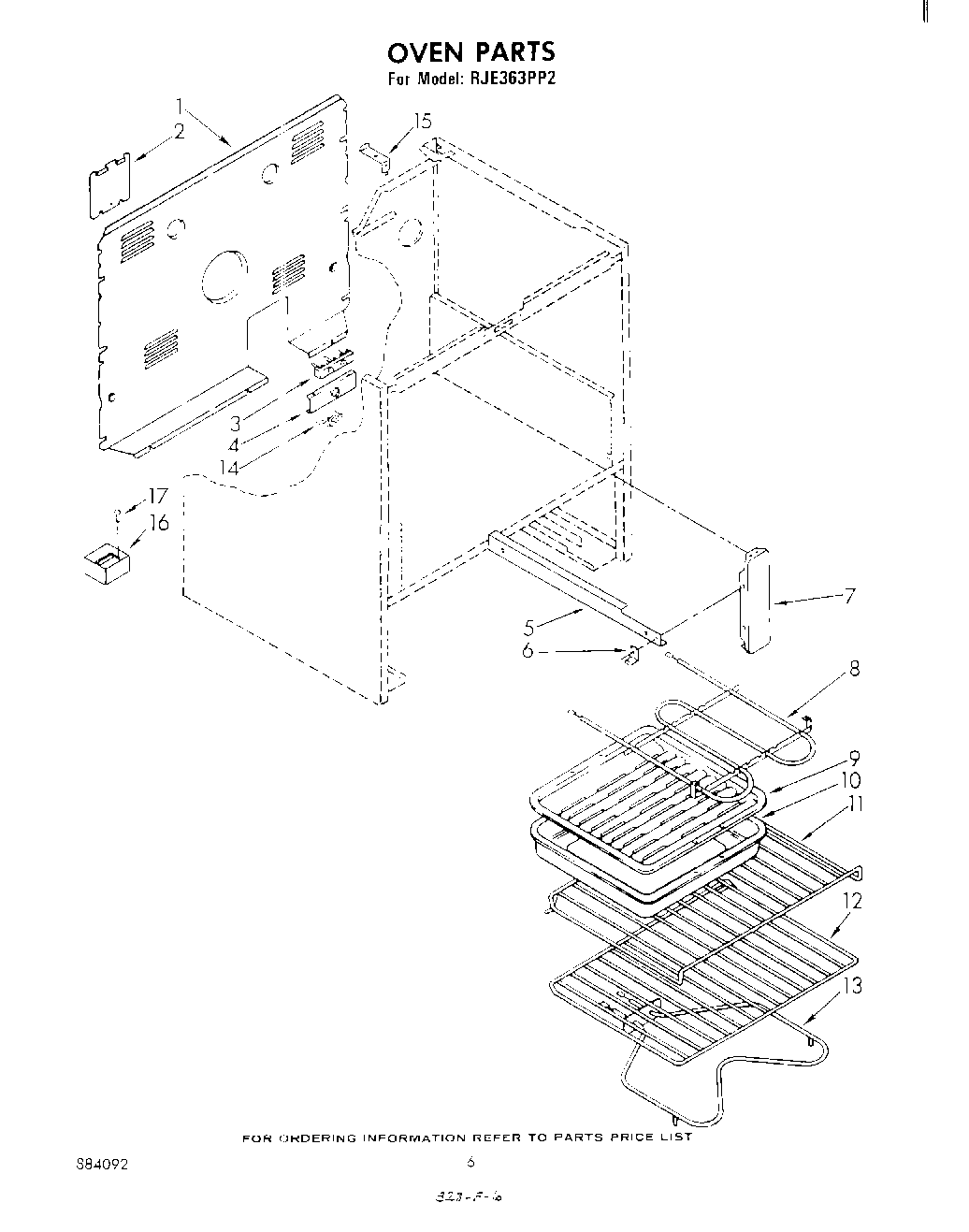

RJE363PP2 05 – OVEN (CONTINUED) , LITERATURE AND OPTIONAL

RJE363PP2 05 – OVEN (CONTINUED) , LITERATURE AND OPTIONAL

Written by

in

RJE363PP2 05 – OVEN (CONTINUED) , LITERATURE AND OPTIONAL

Products

PositionProduct
Platinum (Uncut)
511873 Whirlpool Refrigerator Paint
1Cover, Rear
2Cover, Service
3Screw, (2) 10-16 x 1
3WP8203546 Whirlpool Terminal Block
3WP112432 Whirlpool Nut Assembly
4Bracket, Service
5rail l.h. (includes illus. 3)
5Rail R.H. (Includes Illus. 3)
6Screw, 10A x 1/2 (2) (Black)
6Glide, Front (2)
7Bracket, Mounting (2)
8WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
94396923 Whirlpool Broil Pan Set Gray Porcelain
11WPL 308172
12WPL 308173
13Screw, 10-32 x 5/8 (4)
13ELMNT-BAKE
14WPL 308498
15WPL 309102
15SCREW
16Block, Balance
17Leveler (Thinner) (2oz.)
17Grease
17340184 Whirlpool Screw
17WPL 308500
17WPL 884092
17WPL 799351
17WPL 312718
17WPL 310604
171
17Wire (14 Ga. 200 c Brown)
17Wire, 25“ Roll (White 14 GA.)
17Wire, 25` Roll (Red 14 Ga.)
17Wire, 25` Roll (Black 14 Ga.)
17FOIL, ALUMINUM OVEN (18“ X 25 )
17WPW10208653 Whirlpool Insulation
17WPL 799832
17350942 Whirlpool Spray Paint
17Paint, Spray (13 Oz.) (Platinum)
17285006 Whirlpool Spray
1716515 Whirlpool Clip
17Touch-Up Oven (1 Oz.)
1718 Ga. 80~c Rating (Red)
17Wire (12 Ga. 150 c Black)
17Wire (14 Ga. 150 c Yellow)
17Wire (14 Ga. 150 c Orange)
17Wire (14 Ga. 150 c Green)
17Wire (14 Ga. 150 c Brown)
17Wire (14 Ga. 150 c Blue)
17242831 Whirlpool Oven Wire
1772113 Whirlpool Touch-Up Paint
