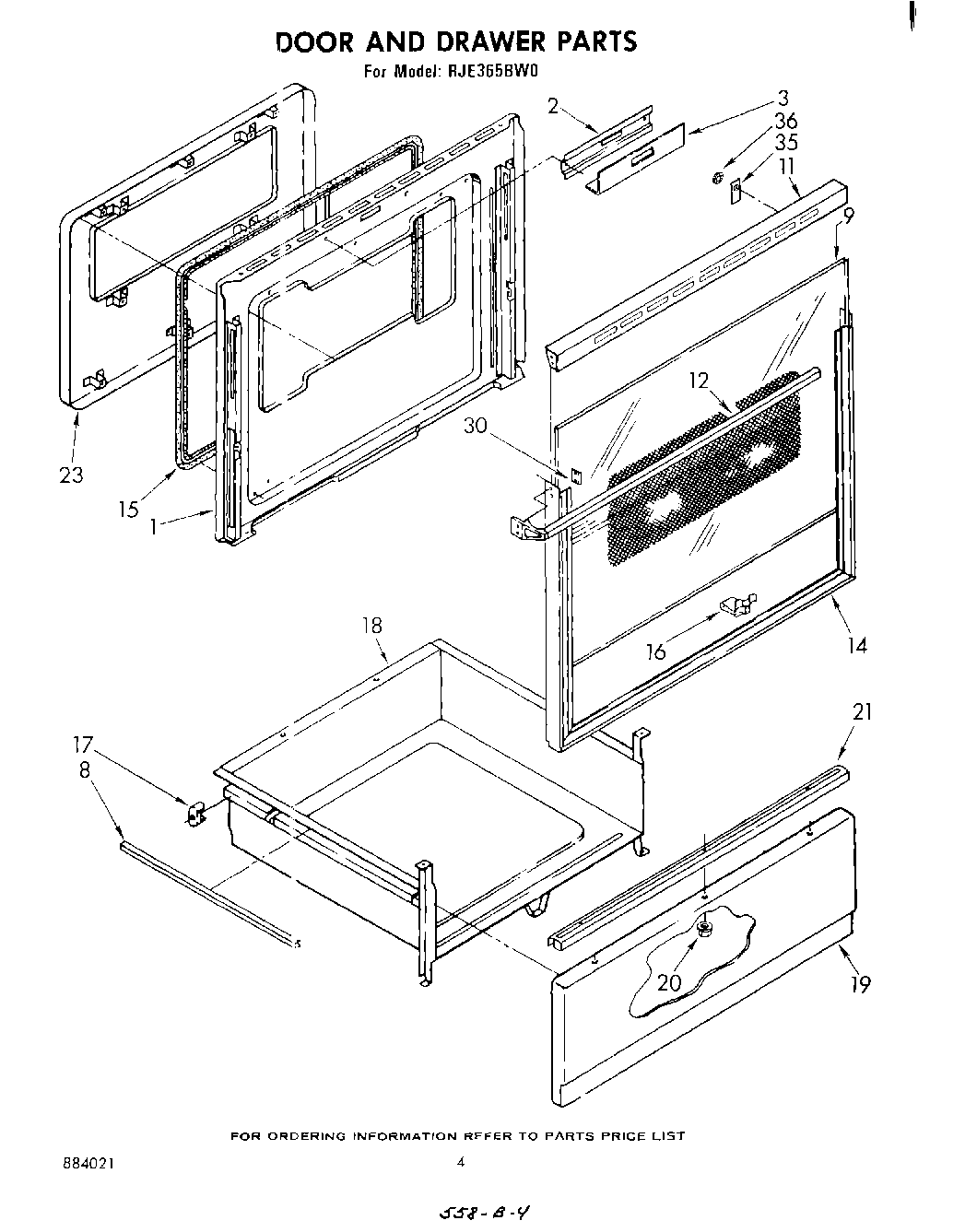

RJE365BW0 03 – DOOR AND DRAWER

RJE365BW0 03 – DOOR AND DRAWER

Written by

in

RJE365BW0 03 – DOOR AND DRAWER

Products

PositionProduct
1Clip (2)
1Liner, Door
2Screw (2)
2Screw (3)
2Channel, Latch
3Shield, Insulation
8Protector, Drawer (2)
9Glass, Outer
11Top, Door Frame
12Screw, 10A x 1/2 (2) (Black)
12Handle, Oven Door
14frame, door 30“
15Seal, Fiberglass
16clip, glass (10)
17Glide, Rear (2)
17WP308685 Whirlpool Microwave Screw
18Drawer, Utility
19Panel, Drawer (New Avocado)
19Panel, Drawer (Platinum)
19Panel, Drawer (Toast)
19Panel Drawer (Harvest Gold)
19Panel Drawer (Black)
19Panel, Drawer (Screw, 8-32 (3))
19Panel, Lower (Coffee)
19Panel, Drawer (Almond)
19Panel Drawer (White)
20WP486255 Whirlpool Air Conditioner Nut
21Handle, Drawer
21WP912618 Whirlpool Dishwasher Screw
23Panel, Inner
30screw (3)
35hold down, glass (2)
36WP90296 Whirlpool Clip
