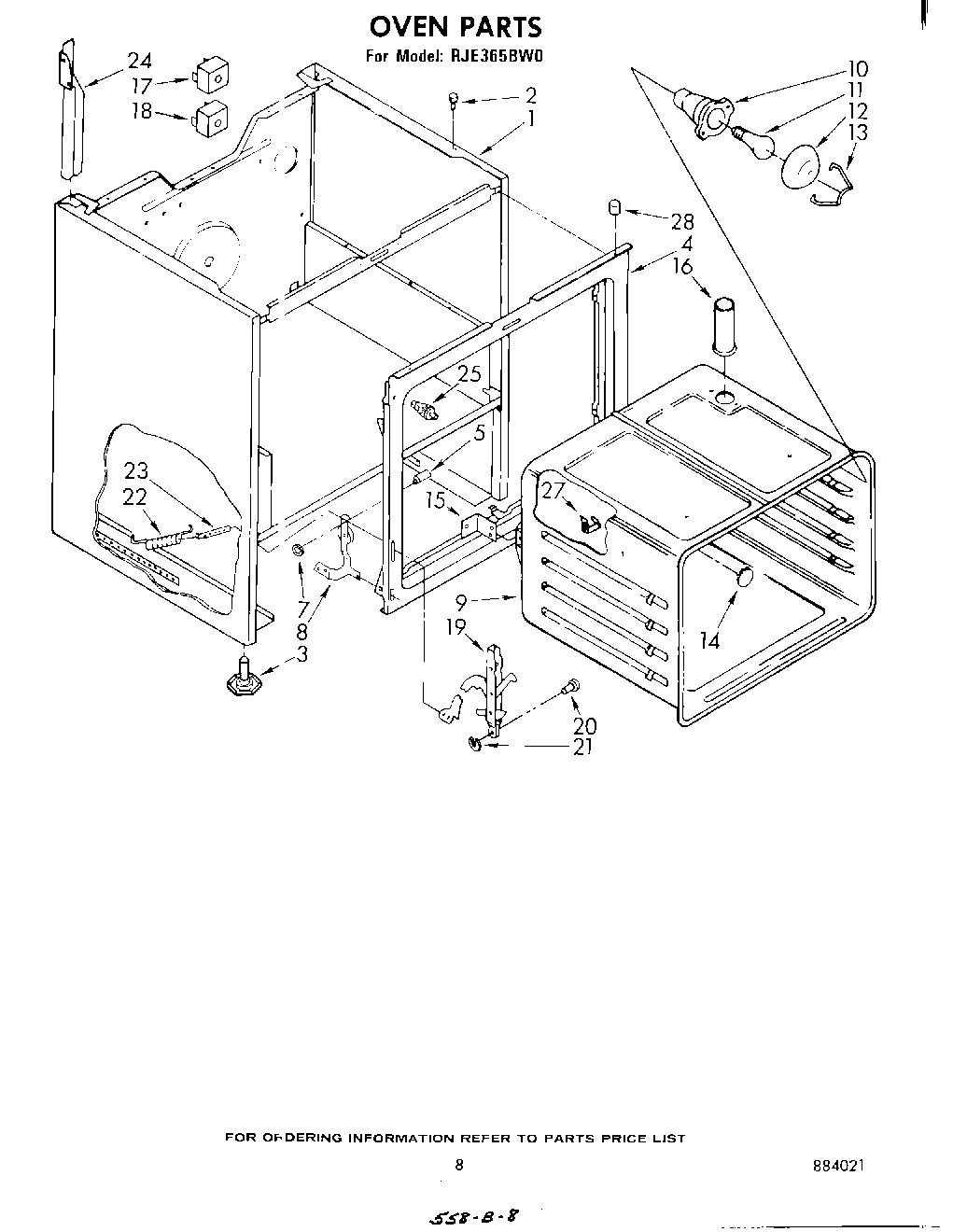

RJE365BW0 05 – SECTION

Products

PositionProduct
1Main Chassis (Platinum)
1Main Chassis (Toast)
1Main Chassis (Coffee)
1WPL 327872
1Griddle Cover (Almond 1633L1A, L2A)
1Lining-Compartment Door (16331A,2A
1main chassis (almond)
2238614 Whirlpool Bumper Hinge
3WPW10058460 Whirlpool Appliance Levelling Leg
4Frame, Front
5Pin, Hinge Ear (2)
7Pushnut (2)
8Hinge (L.H.)
8Hinge (R.H.)
8SCREW
9Oven (30“ Pyro)
9Screw (3)
10Socket, Oven Light (Alt.)
10Socket, Oven Light (Alt.)
10Screw (10-12 x .875)
11RANGE ONLY 40W 120V APPL BULB
12Cover, Light
13Retainer, Light
14Plug Button
15Bracket, Oven (Mounting)
16Vent, Oven
16WP308685 Whirlpool Microwave Screw
17Switch, Broil
18Switch, Bake
19Channel, Arm (2)
20WP307986 Whirlpool Hinge Pin
21Retainer Ring (2)
22Spring, Oven Door (2)
23WP308125 Whirlpool Microwave Range/Cooktop Anchor
24Support, Channel (R.H.)
24Support, Channel (L.H.)
25Switch, Door
2798005642 Whirlpool Clip
28locator, cooktop
28Screw, 8-32 x 5/16 (2)
