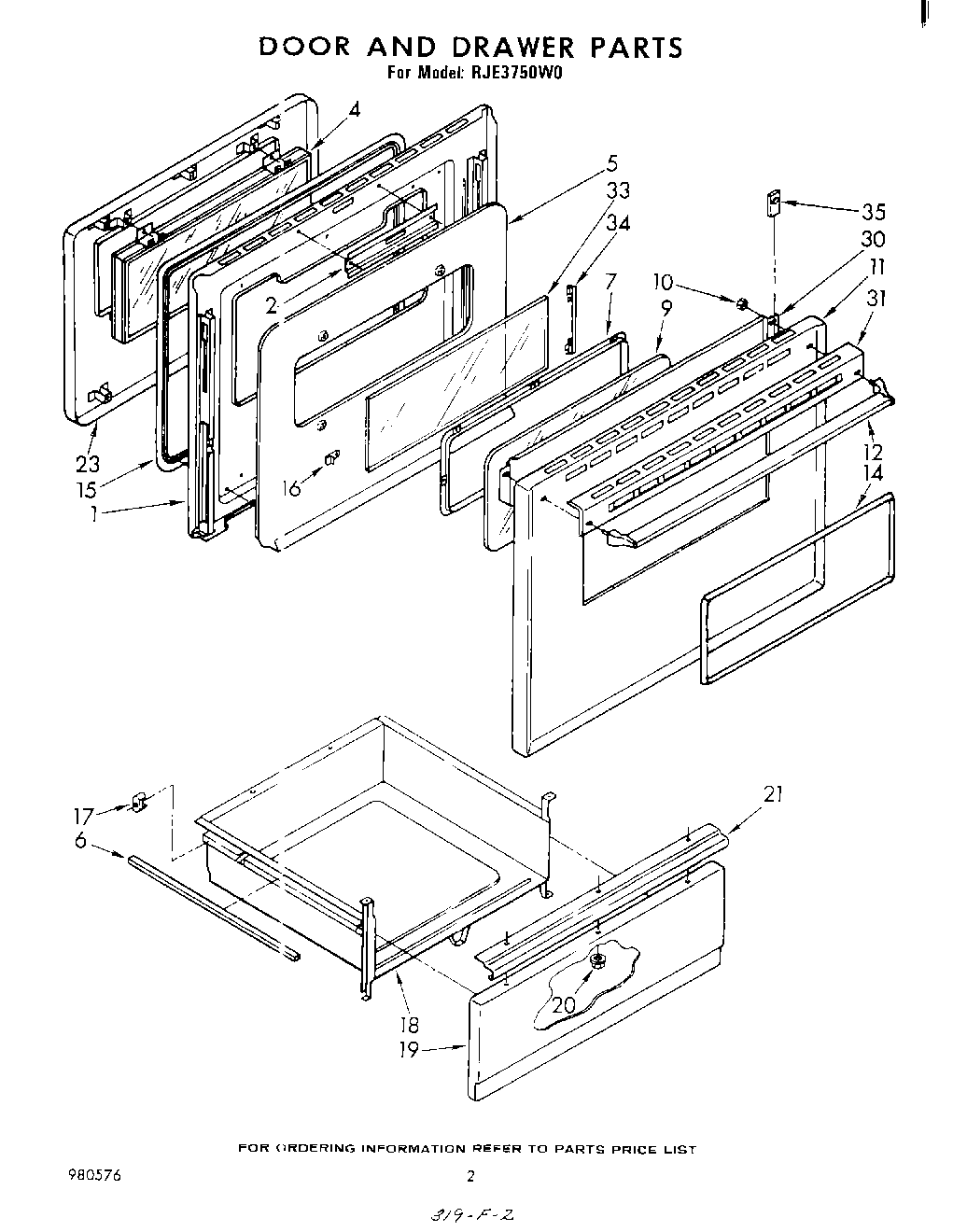

RJE3750W0 02 – DOOR AND DRAWER

Products

Position	Product
1	Screw, 10A x 1/2 (2) (Black)
1	panel, top (screw, 10a x 3/8 (3))
1	Clip (2)
1	Griddle Cover (Avocado 1633A1A, A2A)
2	Channel, Latch
2	Screw (3)
2	Screw (2)
4	Window Package
5	Retainer, Insulation
6	Protector, Drawer (2)
7	Retainer, Glass
9	Screw
9	Glass, Outer
10	WP308499 Whirlpool Nut
11	Panel, Door (White)
11	Panel, Door (New Avocado)
11	Panel, Door (Coffee)
11	Panel, Door (Harvest Gold)
11	Panel, Door (Almond)
12	Handle, Oven Door
14	Screw
14	Frame, Window
15	Seal, Fiberglass
16	Clip, Frame
17	WP308685 Whirlpool Microwave Screw
17	Glide, Rear (2)
18	Drawer, Utility
19	Panel, Lower (Coffee)
19	Panel Drawer (White)
19	Panel, Drawer (Almond)
19	Panel, Drawer (New Avocado)
19	Panel Drawer (Harvest Gold)
19	Panel, Drawer (Screw, 8-32 (3))
19	Panel Drawer (Black)
20	WP486255 Whirlpool Air Conditioner Nut
21	Handle, Drawer
21	WP912618 Whirlpool Dishwasher Screw
23	Panel, Inner
30	Shield
30	Baffle, Top
31	pushnut (2)
31	Trim, Panel
31	Clip
33	Glass (6.81“ x 18.31“)
34	Retainer, Glass (2)
35	Spacer (Fish Paper)
