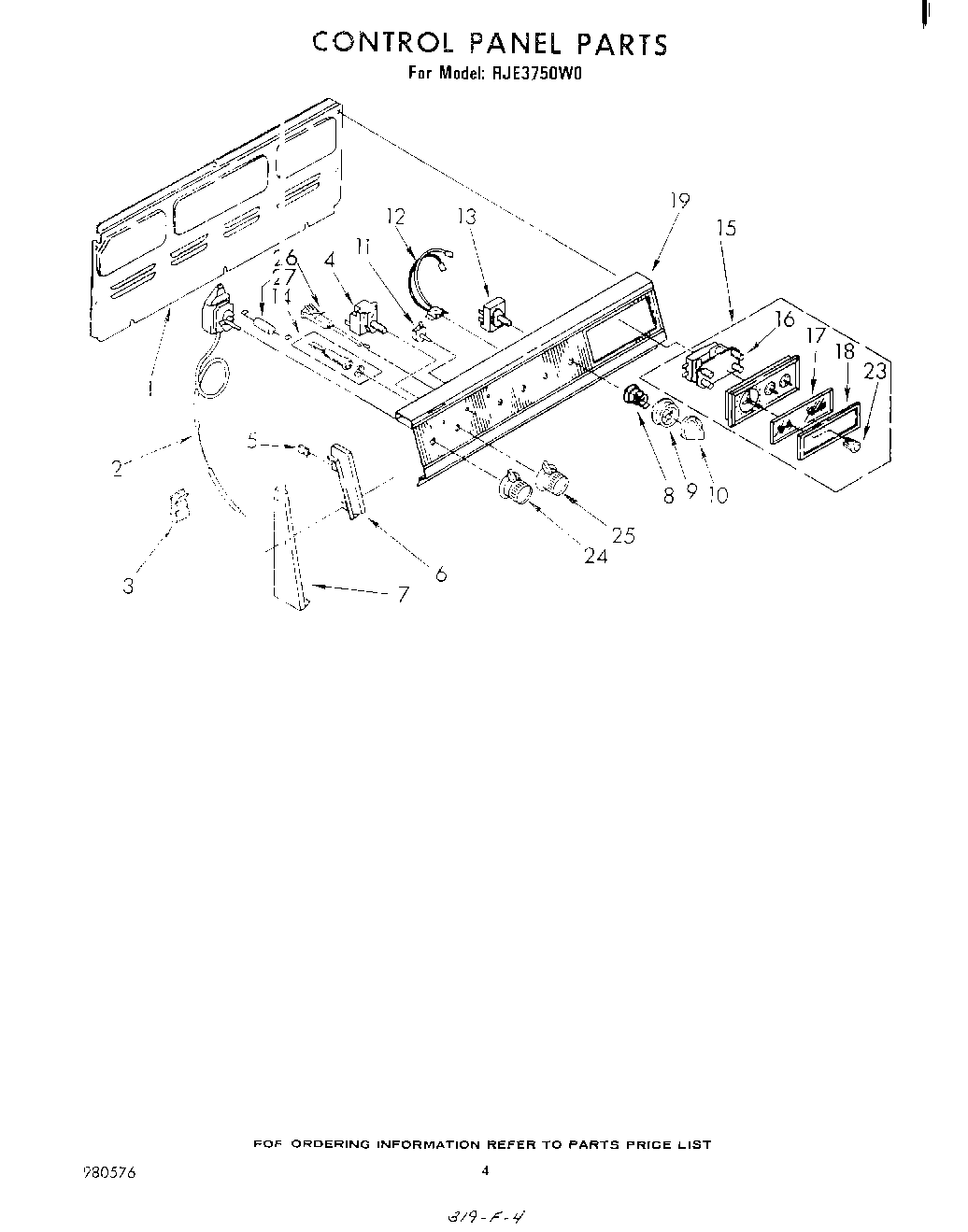

RJE3750W0 03 – CONTROL PANELadmin2025-04-26T12:10:20+00:00RJE3750W0 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Cover, Rear |
| 2 | Thermostat, Oven |
| 2 | screw, 6-32 x 1/4 (2) |
| 3 | WPL 309211 |
| 4 | Switch, Selector |
| 5 | Clip (4) |
| 6 | End Cap, R.H. |
| 6 | End Cap, L.H. |
| 7 | WP3390631 Whirlpool Screw |
| 7 | End Trim (R.H.) |
| 7 | End Trim (L.H.) |
| 8 | Spring, Bezel (4) |
| 9 | W11194997 Whirlpool Knob Bezel |
| 10 | WP307458 Whirlpool Knob |
| 11 | Switch, Pushbutton |
| 11 | Nut, 3/8-27 |
| 12 | Light, Indicator (Surface Unit) (Includes Illus. 22) |
| 13 | W10900107 Whirlpool Oven Surface Element Switch |
| 13 | WP486579 Whirlpool Air Conditioner Screw |
| 14 | Light, Indicator (Oven) |
| 15 | Speed Nut |
| 16 | Motor, Timer |
| 17 | Glass, Timer |
| 18 | Bezel, Timer |
| 19 | W11693756 Whirlpool Screw Assembly |
| 19 | SCREW |
| 19 | Screw |
| 19 | WP488627 Whirlpool Refrigerator Screw |
| 19 | Control Panel |
| 23 | Knob, Timer (3) |
| 24 | Knob, Thermostat |
| 25 | Knob, Selector |
| 26 | Insulation Oven Door Plug |
| 27 | Resistor & Terminal Assembly |
