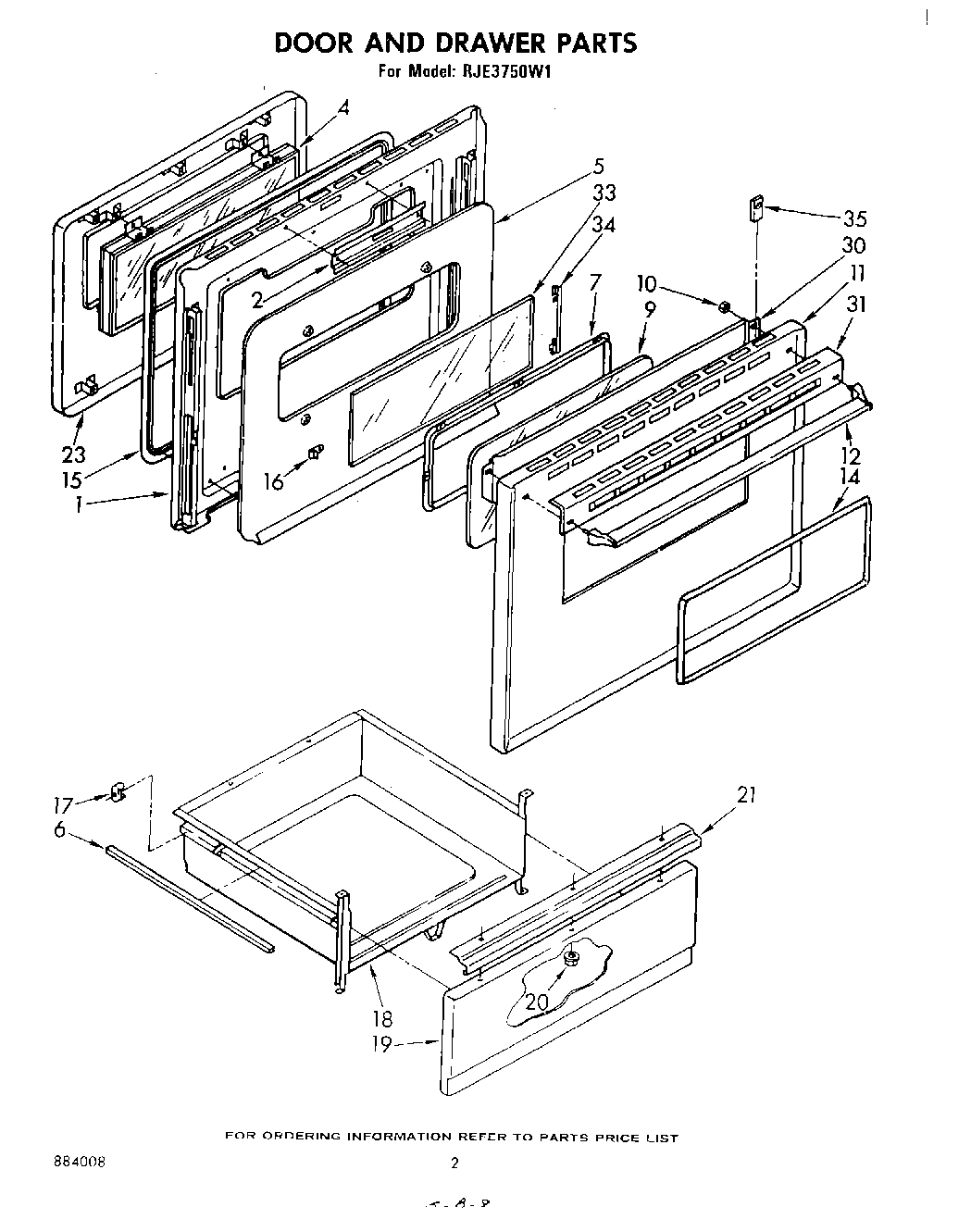

RJE3750W1 02 – DOOR AND DRAWER

Products

Position	Product
1	panel, top (screw, 10a x 3/8 (3))
1	Clip (2)
1	Liner, Door
1	WPL 312006
1	Screw, 10A x 1/2 (2) (Black)
2	Channel, Latch
2	Screw (3)
2	Screw (2)
4	Window Package
5	Retainer, Insulation
6	Protector, Drawer (2)
7	Retainer, Glass
9	Glass, Outer
9	Screw
10	WP308499 Whirlpool Nut
11	Panel, Door (White)
11	Panel, Door (Almond)
11	Panel, Door (New Avocado)
11	Panel, Door (Coffee)
11	Panel, Door (Harvest Gold)
12	Handle, Oven Door
14	Frame, Window
14	Screw
15	Seal, Fiberglass
16	Clip, Frame
17	WP308685 Whirlpool Microwave Screw
17	Glide, Rear (2)
18	Drawer, Utility
19	Panel, Drawer (New Avocado)
19	Panel Drawer (White)
19	Panel Drawer (Harvest Gold)
19	Panel, Drawer (Almond)
19	Panel Drawer (Black)
19	Panel, Lower (Coffee)
19	Panel, Drawer (Screw, 8-32 (3))
20	WP486255 Whirlpool Air Conditioner Nut
21	WP912618 Whirlpool Dishwasher Screw
21	Handle, Drawer
23	Panel, Inner
30	Shield
30	Baffle, Top
31	WP90296 Whirlpool Clip
31	Trim, Panel
31	Clip
33	Glass (6.81“ x 18.31“)
34	Retainer, Glass (2)
35	Spacer (Fish Paper)
