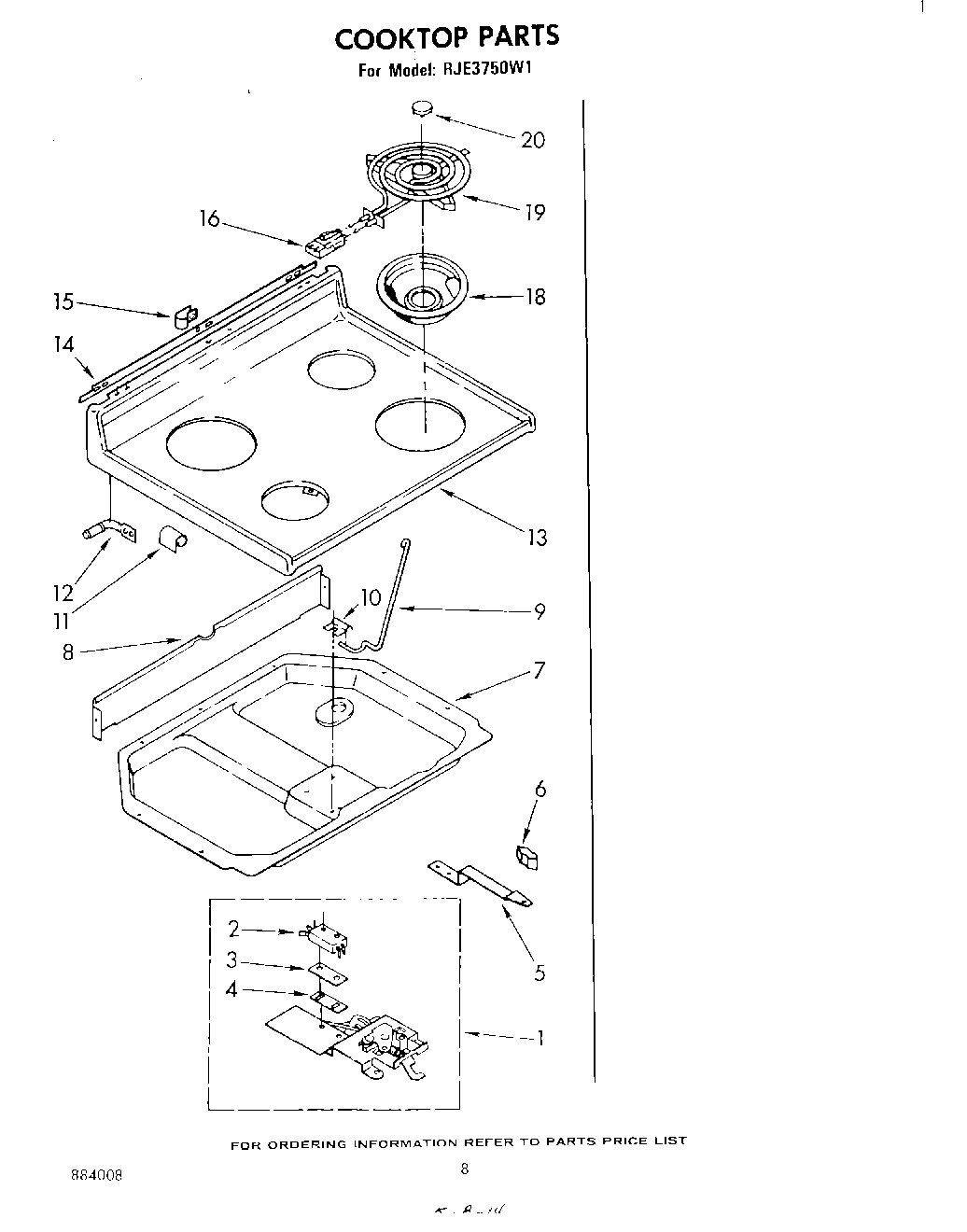

RJE3750W1 06 – COOKTOP

Products

Position	Product
1	Latch Assembly
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Terminal
5	WP488627 Whirlpool Refrigerator Screw
5	Handle, Latch
5	Screw (3)
5	Screw
6	Knob, Latch
7	Burner Box
8	Shield, Wiring
9	Rod, Cooktop
9	SCREW
10	Retainer, Cooktop
10	WP3390631 Whirlpool Screw
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (New Avocado)
13	Cooktop (Coffee)
13	Cooktop (Almond)
13	Cooktop (White)
13	Cooktop (Harvest Gold)
14	Barrier
15	WP308544 Whirlpool Screw
15	WP308605 Whirlpool Refrigerator Clamp
16	BURNER RECEPTACLE KIT
16	WP313808 Whirlpool Screw
18	WPW10196406 Whirlpool 6" Chrome Drip Bowl
18	DRIP BOWL 8" W/HOLE CHROME
19	WP660532 Whirlpool Oven Surface Element
19	WP660533 Whirlpool Oven 8" Surface Element
20	Medallion (4)
