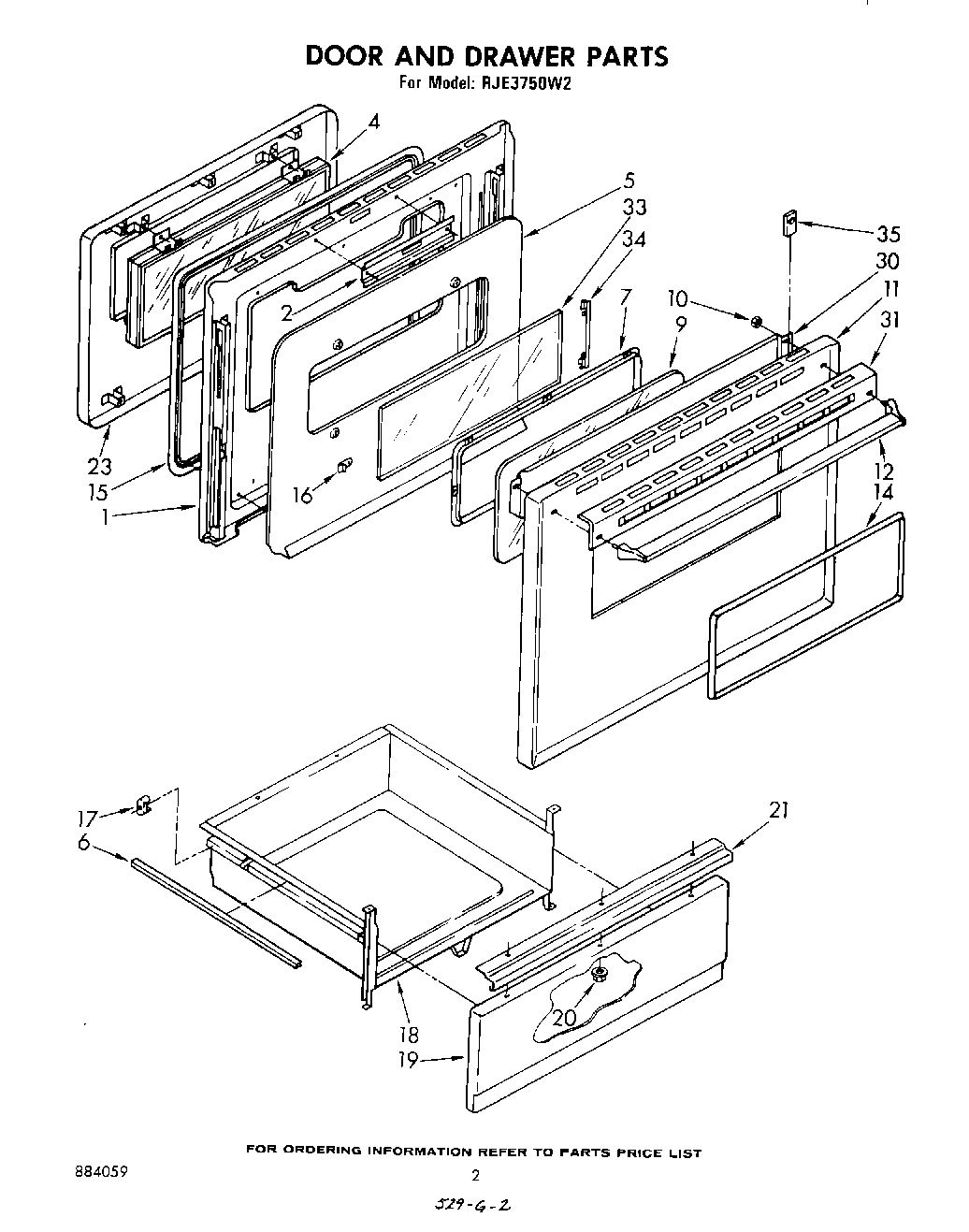

RJE3750W2 02 – DOOR AND DRAWER

Products

Position	Product
1	WPL 312006
1	Liner, Door
2	Channel, Latch
2	Screw (2)
2	Screw (3)
4	Window Package
5	Retainer, Insulation
6	Protector, Drawer (2)
7	Retainer, Glass
9	Hinge-Lt. or Rt.
9	Glass, Outer
10	WP308499 Whirlpool Nut
11	Panel, Door (Harvest Gold)
11	Panel, Door (White)
11	Panel, Door (Almond)
11	Panel, Door (New Avocado)
11	Panel, Door (Coffee)
11	WP308685 Whirlpool Microwave Screw
11	Panel, Door (Platinum)
11	Panel, Door (Toast)
12	Handle, Oven Door
14	Screw
14	Frame, Window
15	Seal, Fiberglass
16	Clip, Frame
17	Screw, 10A x 1/2 (2) (Black)
17	Glide, Rear (2)
18	Drawer, Utility
19	Panel, Lower (Coffee)
19	Panel, Drawer (New Avocado)
19	WP488787 Whirlpool Refrigerator Screw
19	Panel Drawer (White)
19	Panel, Drawer (Almond)
19	Panel Drawer (Black)
19	Panel Drawer (Harvest Gold)
19	Panel, Drawer (Toast)
19	Panel, Drawer (Platinum)
20	WP486255 Whirlpool Air Conditioner Nut
21	Handle, Drawer
21	WP912618 Whirlpool Dishwasher Screw
23	Panel, Inner
30	Baffle, Top
30	Shield
31	WP90296 Whirlpool Clip
31	Trim, Panel
31	Clip
33	Glass (6.81“ x 18.31“)
34	Retainer, Glass (2)
35	Spacer (Fish Paper)
