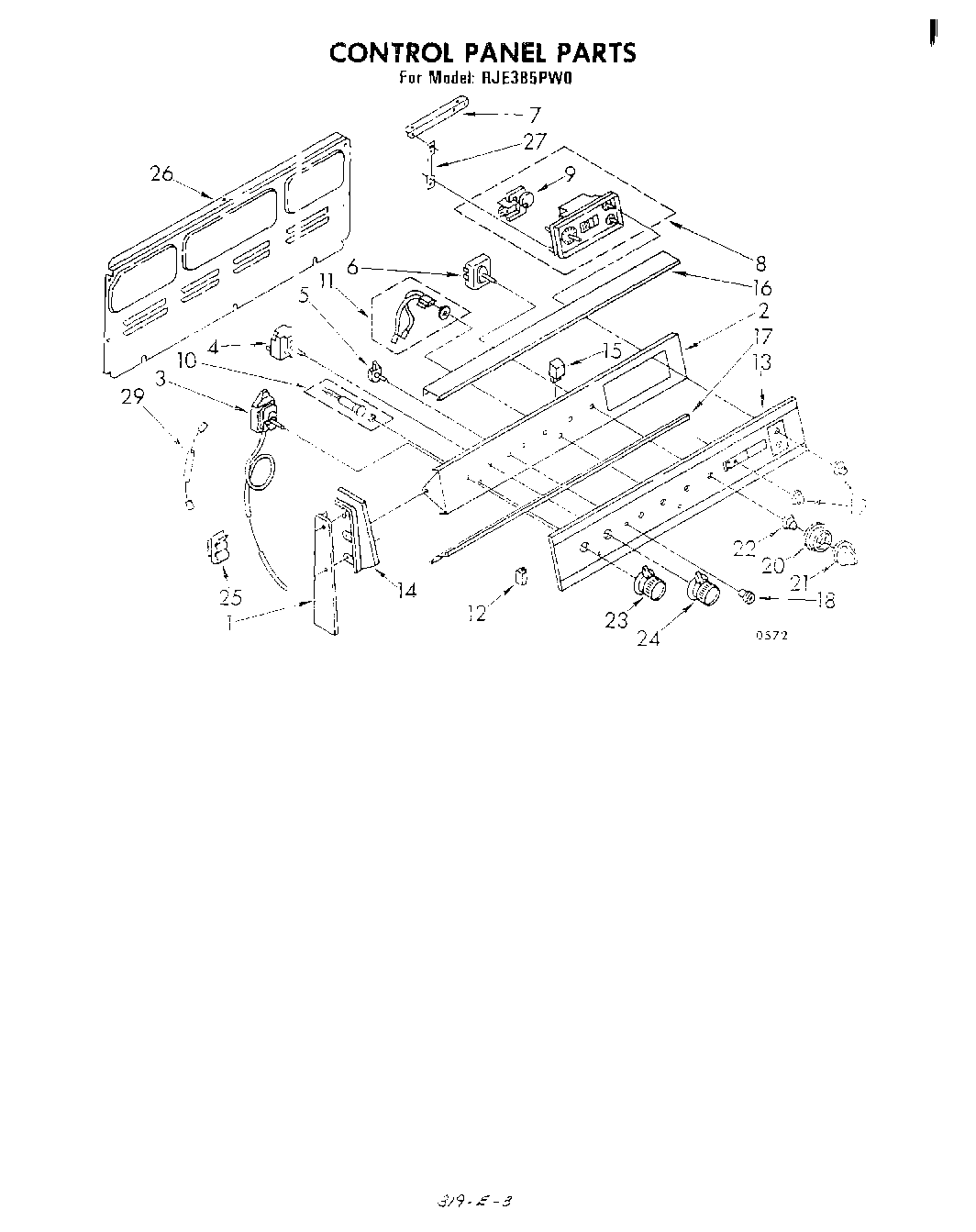

RJE385PW0 03 – CONTROL PANEL

RJE385PW0 03 – CONTROL PANEL

Written by

in

RJE385PW0 03 – CONTROL PANEL

Products

PositionProduct
1WP3390631 Whirlpool Screw
1End Trim (R.H.)
1End Trim (L.H.)
2Screw
2Control Bracket
3Thermostat
3screw, 6-32 x 1/4 (2)
4Selector Switch (5 Position)
5nut, 3/8 x 27
5Switch, Oven Light
6WP486579 Whirlpool Air Conditioner Screw
6Switch, Infinite (Use W/8“ Surface Unit (2))
6WP3149404 Whirlpool Oven Surface Element Switch
7Angle, Timer Mounting (2)
8Timer, Digital (Includes Illus. 29)
8Timer, Automatic (Palnut (Timer))
9Motor, Timer
10Insulation Oven Door Plug
10Light, Indicator (Oven)
11Light, Indicator (Surface Unit) (Includes Illus. 22)
12channel, rubber (4)
13Control Panel, Glass
14End Cap (L.H.)
14End Cap (R.H.)
15Support, Trim
16Trim, Top
17Screw,
17Trim, Bottom
18bezel, switch (2)
19Knob, Timer (3)
20W11194997 Whirlpool Knob Bezel
21WP307458 Whirlpool Knob
22Spring, Bezel (4)
23Knob, Thermostat
24Knob, Selector
25WPL 309211
26SCREW
26Cover, Rear
27Plate, Timer Mounting
29Resistor & Terminal Assembly
