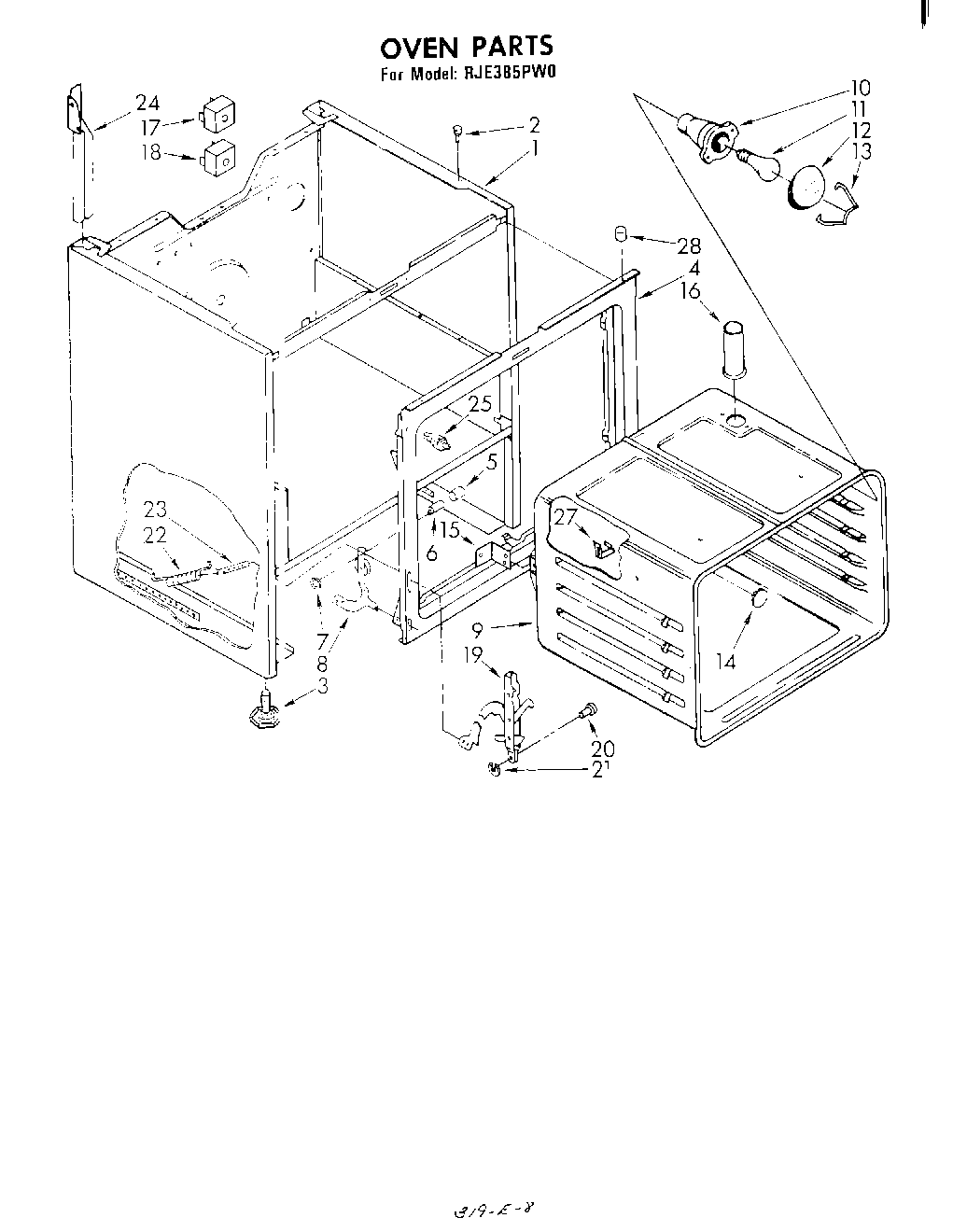

RJE385PW0 06 – SECTION

Products

Position	Product
1	Main Chassis (Coffee)
1	WPL 327872
1	Griddle Cover (Almond 1633L1A, L2A)
1	Lining-Compartment Door (16331A,2A
1	main chassis (almond)
2	238614 Whirlpool Bumper Hinge
3	WP233550 Whirlpool Leveling Feet
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Snubber, Door (2)
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
8	SCREW
9	Oven (30“ Pyro)
9	Screw (3)
10	Screw (10-12 x .875)
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light (Alt.)
11	RANGE ONLY 40W 120V APPL BULB
12	Cover, Light
13	Retainer, Light
14	Plug Button
15	W10841059 Whirlpool Screw
15	Bracket, Oven (Mounting)
16	Vent, Oven
16	WP308685 Whirlpool Microwave Screw
17	Switch, Broil
18	Switch, Bake
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	WP308126 Whirlpool Door Spring
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Support, Channel (L.H.)
24	Support, Channel (R.H.)
25	Switch, Door
27	98005642 Whirlpool Clip
28	locator, cooktop
28	Screw, 8-32 x 5/16 (2)
