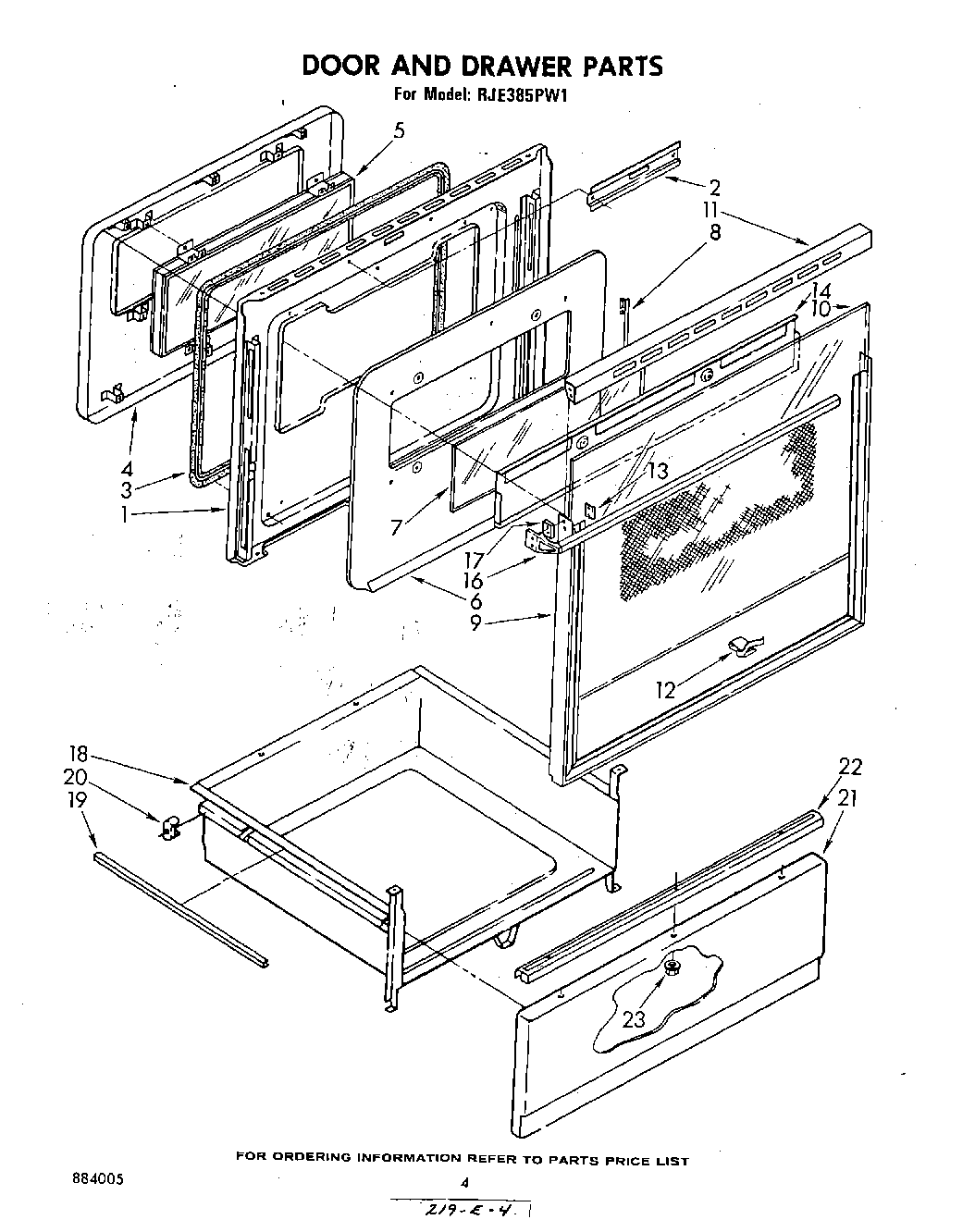

RJE385PW1 03 – DOOR AND DRAWER

Products

PositionProduct
1Clip (2)
1Screw (3)
1Liner, Door
2Channel, Latch
2Screw (2)
3Seal, Fiberglass
4Panel, Inner
5Window Package
6Retainer, Insulation
7Glass (6.81“ x 18.31“)
8Retainer, Glass (2)
9frame, door 30“
10Glass, Outer
11Top, Door Frame
11Screw, 10A x 1/2 (2) (Black)
12clip, glass (10)
13screw (3)
14WP90296 Whirlpool Clip
14Baffle, Heat
16WP912618 Whirlpool Dishwasher Screw
16Handle, Oven Door
17Spacer, Door Handle (2)
18Drawer, Utility
19Protector, Drawer (2)
20Glide, Rear (2)
20WP308685 Whirlpool Microwave Screw
21Panel, Drawer (Platinum)
21Panel, Drawer (Almond)
21Panel, Drawer (New Avocado)
21Panel, Drawer (Toast)
21Panel Drawer (Harvest Gold)
21Panel Drawer (Black)
21Panel, Lower (Coffee)
21Panel, Drawer (Screw, 8-32 (3))
21Panel Drawer (White)
22Handle, Drawer
23WP486255 Whirlpool Air Conditioner Nut
