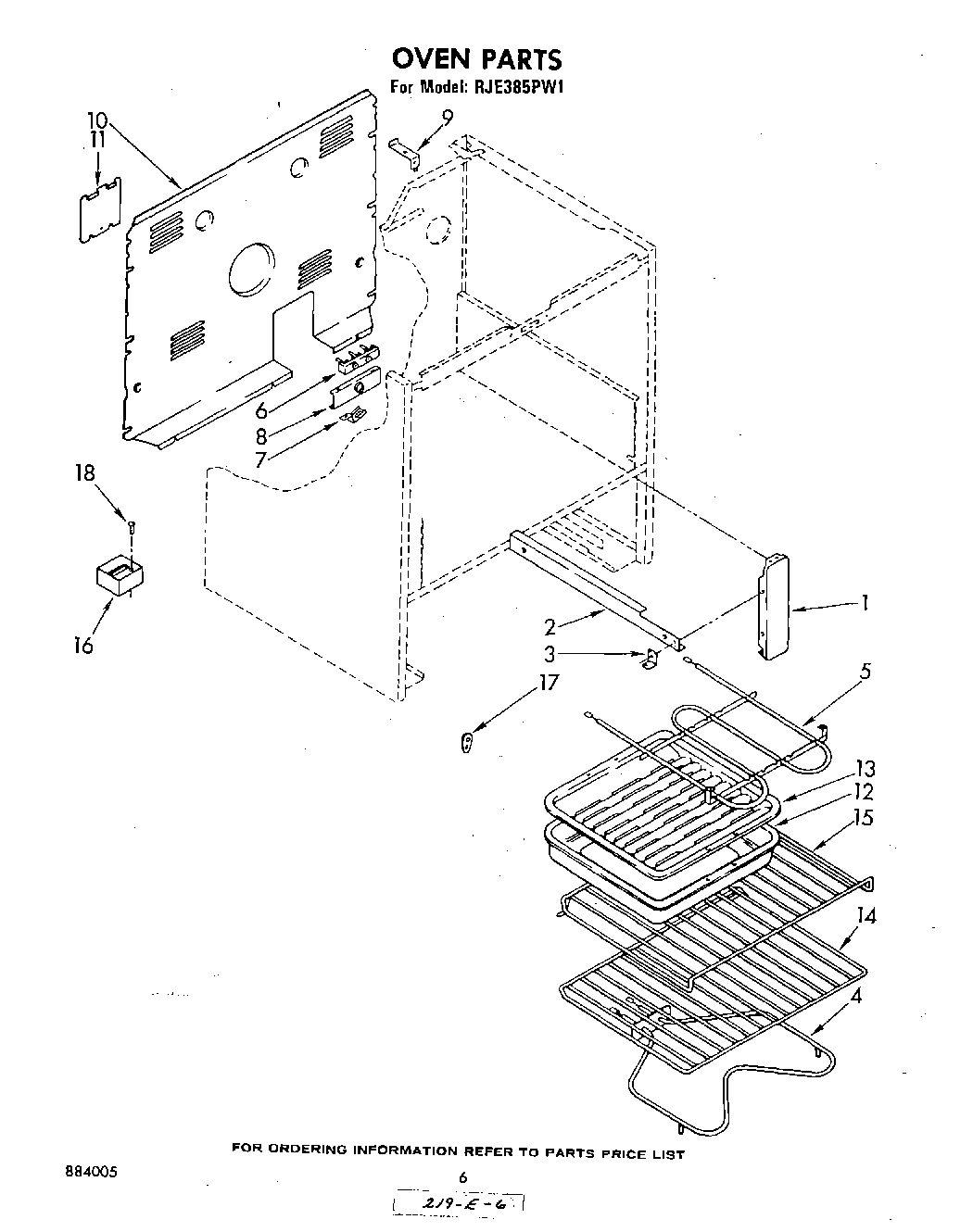

RJE385PW1 04 – OVEN , LITERATURE AND OPTIONAL

RJE385PW1 04 – OVEN , LITERATURE AND OPTIONAL

RJE385PW1 04 – OVEN , LITERATURE AND OPTIONAL

Products

PositionProduct
511873 Whirlpool Refrigerator Paint
Enamel, New Avocado (1 Qt. Uncut)
Almond (Uncut)
Enamel, Coffee (1 Qt. Uncut)
799344 Whirlpool Refrigerator Paint
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
Golden Harvest (Uncut)
1Bracket, Mounting (2)
2WP308685 Whirlpool Microwave Screw
2Rail R.H. (Includes Illus. 3)
2rail l.h. (includes illus. 3)
3Glide, Front (2)
4ELMNT-BAKE
5Screw, 10-32 x 5/8 (4)
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6WP112432 Whirlpool Nut Assembly
6W10841059 Whirlpool Screw
6WP8203546 Whirlpool Terminal Block
7WPL 308498
7SCREW
8Bracket, Service
9WPL 309102
10Cover, Rear
11Cover, Service
11WP308544 Whirlpool Screw
134396923 Whirlpool Broil Pan Set Gray Porcelain
14WPL 308173
15WPL 308172
16Block, Balance
17WPL 311982
188212471 Whirlpool Oven Paint
18Grease
18Leveler (Thinner) (2oz.)
18Toast
18Paint, Spray (13 Oz.) (Platinum)
181
1872113 Whirlpool Touch-Up Paint
18340184 Whirlpool Screw
18WPL 312488
18WPL 312718
18350956 Whirlpool Spray Assembly
1872017 Whirlpool Appliance Touch-Up Paint White
18WP72107 Whirlpool Touchup
18Golden Harvest
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18WPL 308500
18WPL 799351
18WPL 884005
18Wire (14 Ga. 200 c Brown)
18Paint, Spray 13 Oz. (Avocado)
18paint, spray 13 oz. (coffee)
18Paint, Touch-Up 1/2 Oz. (Coffee)
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18285006 Whirlpool Spray
18WPW10208653 Whirlpool Insulation
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18WPL 799832
18350930 Whirlpool White Spray Paint
18350942 Whirlpool Spray Paint
1818 Ga. 80~c Rating (Red)
18Wire (12 Ga. 150 c Black)
18Wire (14 Ga. 150 c Yellow)
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18WPL 72112
18242831 Whirlpool Oven Wire
18FOIL, ALUMINUM OVEN (18“ X 25 )
