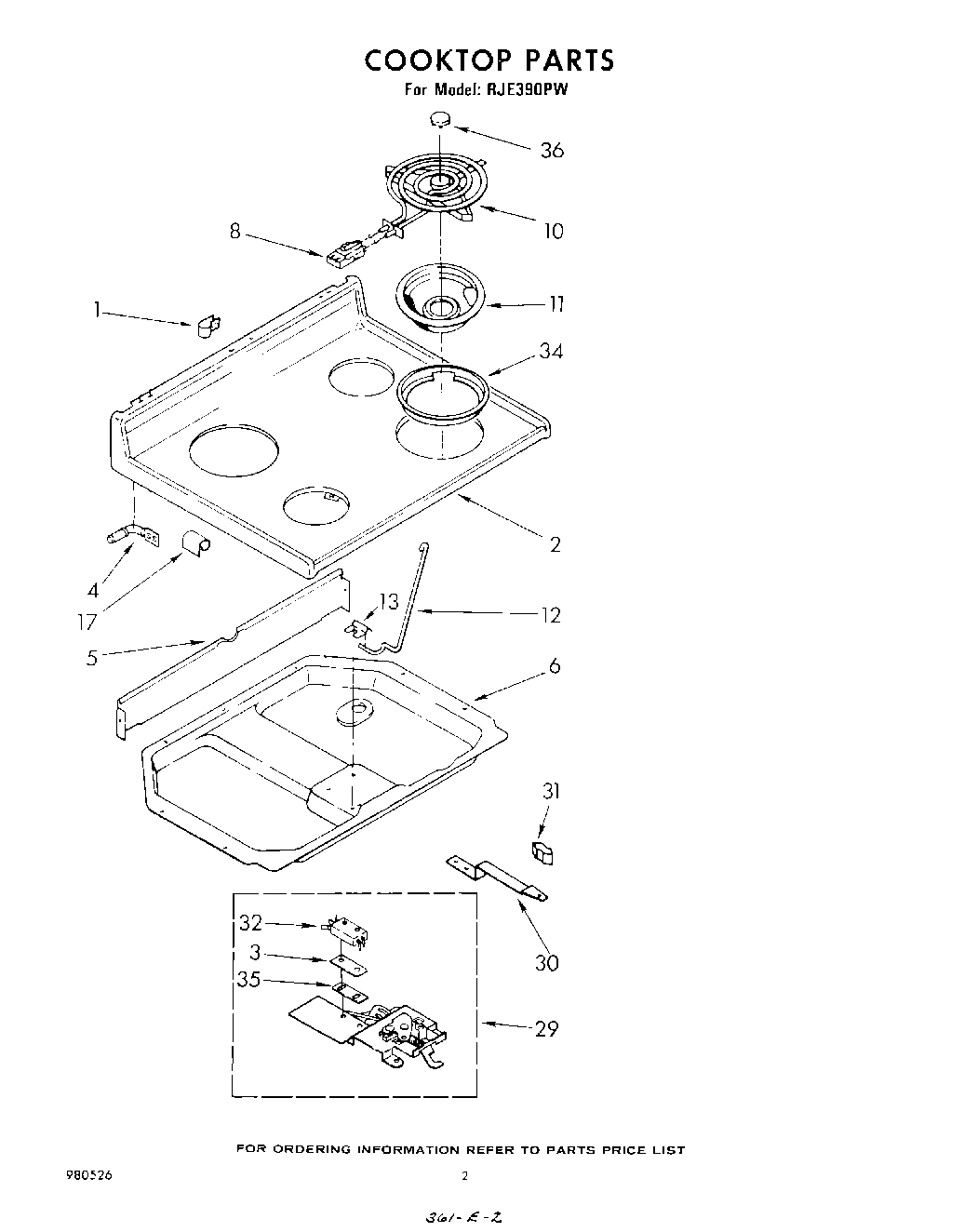

RJE390PW 02 – COOK TOP

RJE390PW 02 – COOK TOP

Written by

in

RJE390PW 02 – COOK TOP

Products

PositionProduct
1WP308605 Whirlpool Refrigerator Clamp
2Cooktop (New Avocado)
2Cooktop (Coffee)
2Cooktop (Almond)
2Cooktop (White)
2Cooktop (Harvest Gold)
3Insulator, Switch
4Pin, Cooktop (2)
5Screw, 10 x .5HH
5Shield, Wiring
6Burner Box
8WP486754 Whirlpool Compactor Screw
8BURNER RECEPTACLE KIT
10WP660533 Whirlpool Oven 8" Surface Element
10WP660532 Whirlpool Oven Surface Element
11W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
12Rod, Cooktop
13WP3390631 Whirlpool Screw
13Retainer, Cooktop
17Bracket, Cooktop (2)
17WP308544 Whirlpool Screw
29Latch Assembly
29SCREW
30Handle, Latch
30Screw
30Screw, 10A x 1/2
31WP488627 Whirlpool Refrigerator Screw
31Knob, Latch
32Safety Switch
32Screw
34W10854470 Whirlpool Trim Ring
34W10858781 Whirlpool Trim Ring
35Terminal
36Medallion (4)
