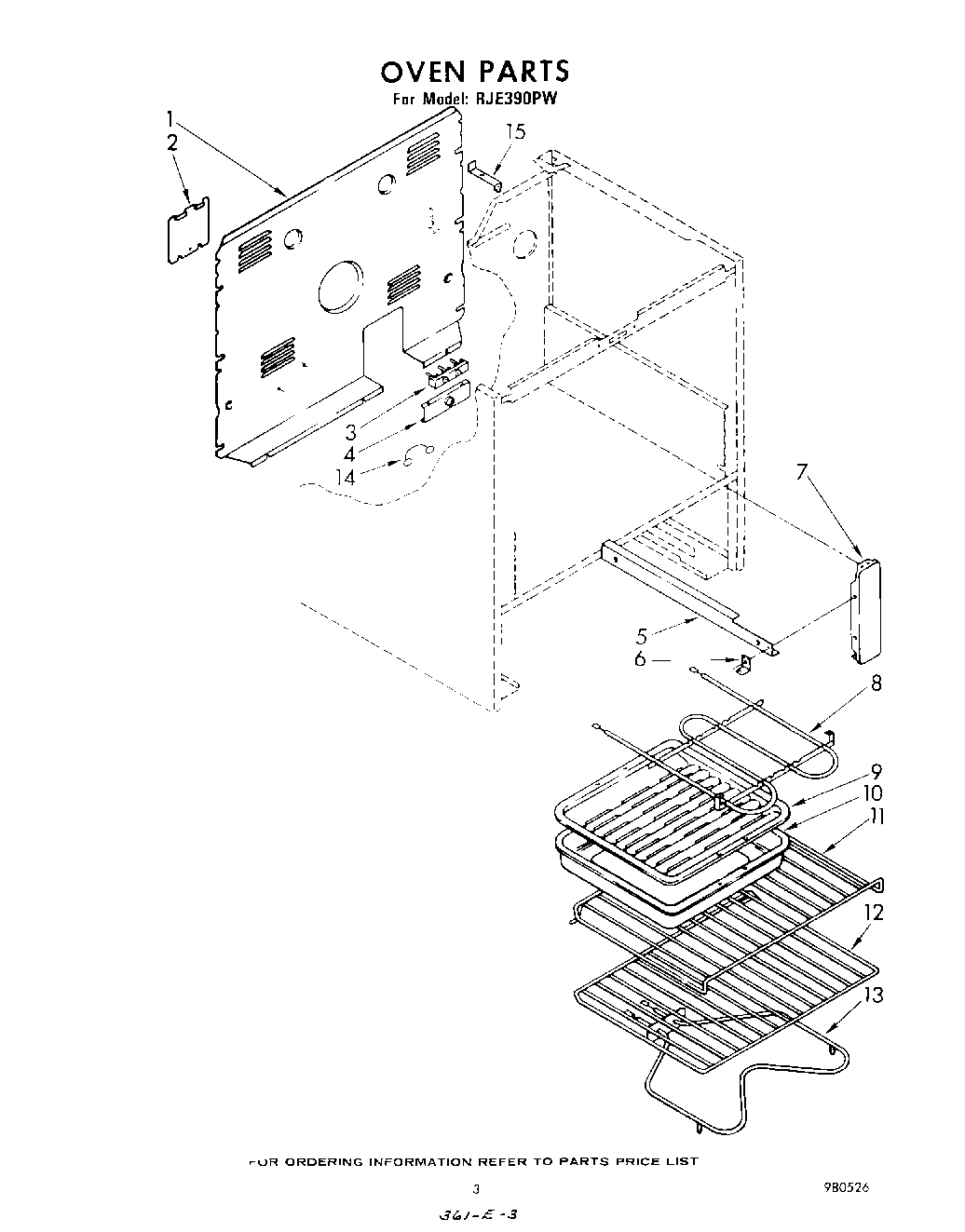

RJE390PW 03 – OVEN

Products

Position	Product
1	Cover, Rear
2	WP308544 Whirlpool Screw
2	Cover, Service
3	Terminal, 1/4
3	WP8203546 Whirlpool Terminal Block
3	W10841059 Whirlpool Screw
3	WP112432 Whirlpool Nut Assembly
4	Bracket, Service
5	rail l.h. (includes illus. 3)
5	Rail R.H. (Includes Illus. 3)
5	WP308685 Whirlpool Microwave Screw
6	Glide, Front (2)
7	Bracket, Mounting (2)
8	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
9	Rack, Broiler
10	Pan, Broiler
11	WPL 308172
12	WPL 308173
13	ELMNT-BAKE
13	Screw, 10-32 x 5/8 (4)
14	WPL 308498
14	SCREW
15	WPL 309102
