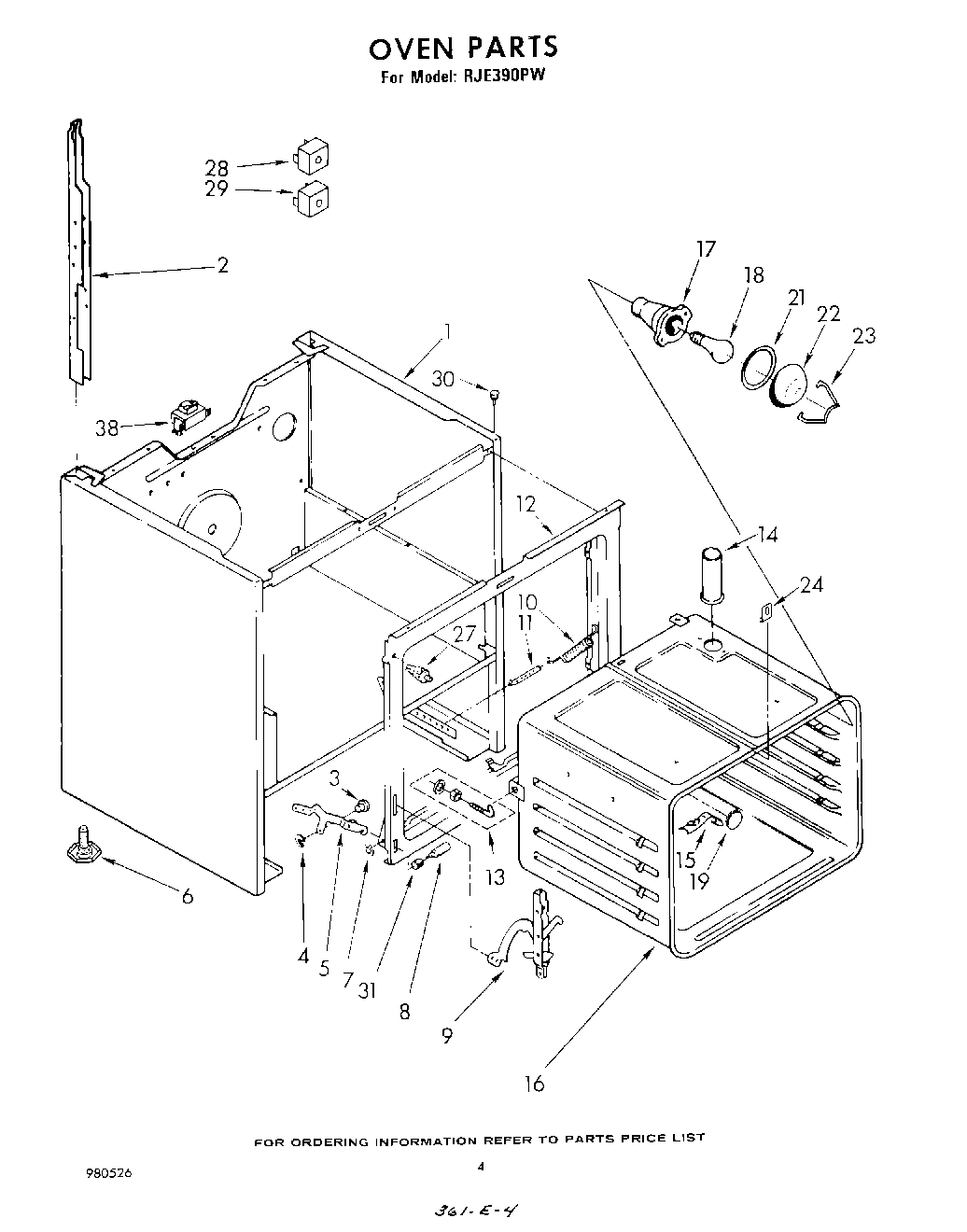

RJE390PW 04 – SECTION

Products

Position	Product
1	Lining-Compartment Door (16331A,2A
1	Main Chassis (Coffee)
1	WPL 327872
1	Griddle Cover (Almond 1633L1A, L2A)
1	main chassis (almond)
2	Support, R.H. Channel
2	Support, L.H. Channel
3	WP307986 Whirlpool Hinge Pin
4	Retainer Ring (2)
5	SCREW
5	Hinge (R.H.)
5	Hinge (L.H.)
6	WP233550 Whirlpool Leveling Feet
7	Pushnut (2)
8	Pin, Hinge Ear (2)
9	Channel, Arm (2)
10	WP308126 Whirlpool Door Spring
11	WP308125 Whirlpool Microwave Range/Cooktop Anchor
12	Frame, Front
13	Oven Mounting Kit
14	WP308685 Whirlpool Microwave Screw
14	Vent, Oven
15	98005642 Whirlpool Clip
16	Plate-Orifice Fitting
16	Screw, 10A x 1/2
17	Socket, Oven Light (Alt.)
17	Screw (10-12 x .875)
17	Socket, Oven Light (Alt.)
18	RANGE ONLY 40W 120V APPL BULB
19	Plug Button
21	Gasket, Light
22	Cover, Light
23	Retainer, Light
24	Clip, Oven
27	Switch, Door
28	Switch, Broil
29	Switch, Bake
30	238614 Whirlpool Bumper Hinge
31	Snubber, Door (2)
38	Ballast (Alt.)
38	Ballast (Alt.)
