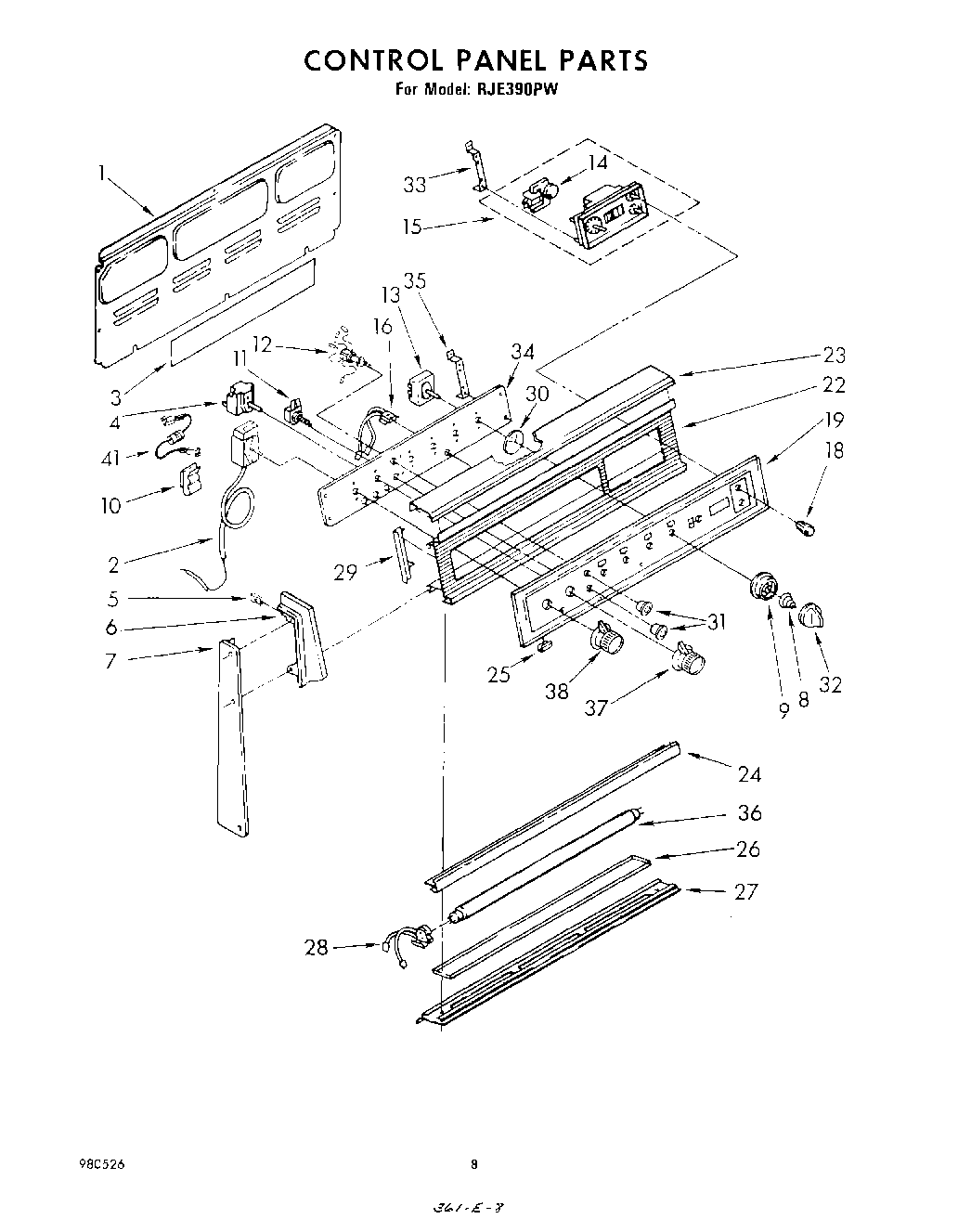

RJE390PW 06 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

PositionProduct
1WPL 309239
2Thermostat, Oven Pyro
2screw, 6-32 x 1/4 (2)
3Barrier Strip
4Switch, Selector (5 Position)
5Clip (4)
6W11693756 Whirlpool Screw Assembly
6End Cap, R.H.
6End Cap, L.H.
7WP965173 Whirlpool Dishwasher Screw
7End Trim, L.H.
7End Trim, R.H.
7SCREW
8spring, bezel (4)
9bezel control knob (4)
10WPL 309211
11Switch, Oven Light
12Switch, Fluorescent Light
12nut, 3/8 x 27
13WP3149399 Whirlpool Infinite Switch
13WP486579 Whirlpool Air Conditioner Screw
13WP3149401 Whirlpool Infinite Burner Switch
14Motor, Timer
15Timer, Automatic (Palnut (Timer))
15Timer, Digital (Includes Illus. 29)
16Light, Indicator (Surface Units (1))
16Indicator Light (250V)
18Knob, Timer (3)
19Glass Panel
22Panel, Backup
23Rail, Top
24Rail, Bottom
24Screw,
25Retainer, Glass
26Lens, Lamp
27Retainer, Lamp Glass
28Socket, Fluorescent Light R.H.
28Socket, Fluorescent Light L.H.
28WP3390631 Whirlpool Screw
28fastener, speed nut
28WP488366 Whirlpool Refrigerator Clamp
29Screw
29Filler, Side (2)
30Skirt, Knob (4)
31bezel, switch (2)
32knob, control
33Bracket, Timer (2)
34Plate, Control Panel
35Bracket, Control Mounting
35Screw (2)
36WP488627 Whirlpool Refrigerator Screw
36WP95292 Whirlpool Fluorescent Light Bulb
37Knob, Selector
38Knob, Thermostat
41WPL 980526
41WPL 328891
41350930 Whirlpool White Spray Paint
41Wire (14 Ga. 150 c Orange)
41WPL 310607
41WPL 308500
4172109 Whirlpool Dacor Avocado Touch-Up Paint
41285006 Whirlpool Spray
41Wire, 25“ Roll (White 14 GA.)
41Wire, 25` Roll (Red 14 Ga.)
41Wire, 25` Roll (Black 14 Ga.)
41FOIL, ALUMINUM OVEN (18“ X 25 )
41WPW10208653 Whirlpool Insulation
41WPL 799832
41511873 Whirlpool Refrigerator Paint
41350942 Whirlpool Spray Paint
41Golden Harvest (Uncut)
41Golden Harvest
4172110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41Almond (Uncut)
41WP72107 Whirlpool Touchup
41799344 Whirlpool Refrigerator Paint
4172017 Whirlpool Appliance Touch-Up Paint White
41Paint, Touch-Up 1/2 Oz. (Coffee)
41paint, spray 13 oz. (coffee)
41WPL 308494
41WPL 799351
41Grease
41Leveler (Thinner) (2oz.)
41Enamel, New Avocado (1 Qt. Uncut)
41Enamel, Coffee (1 Qt. Uncut)
411
41Wire (14 Ga. 200 c Brown)
4118 Ga. 80~c Rating (Red)
41Wire (12 Ga. 150 c Black)
41Wire (14 Ga. 150 c Yellow)
41Wire (14 Ga. 150 c Green)
41Wire (14 Ga. 150 c Brown)
41Wire (14 Ga. 150 c Blue)
41242831 Whirlpool Oven Wire
41Touch-Up Oven (1 Oz.)
41Paint, Spray 13 Oz. (Avocado)
41350956 Whirlpool Spray Assembly
