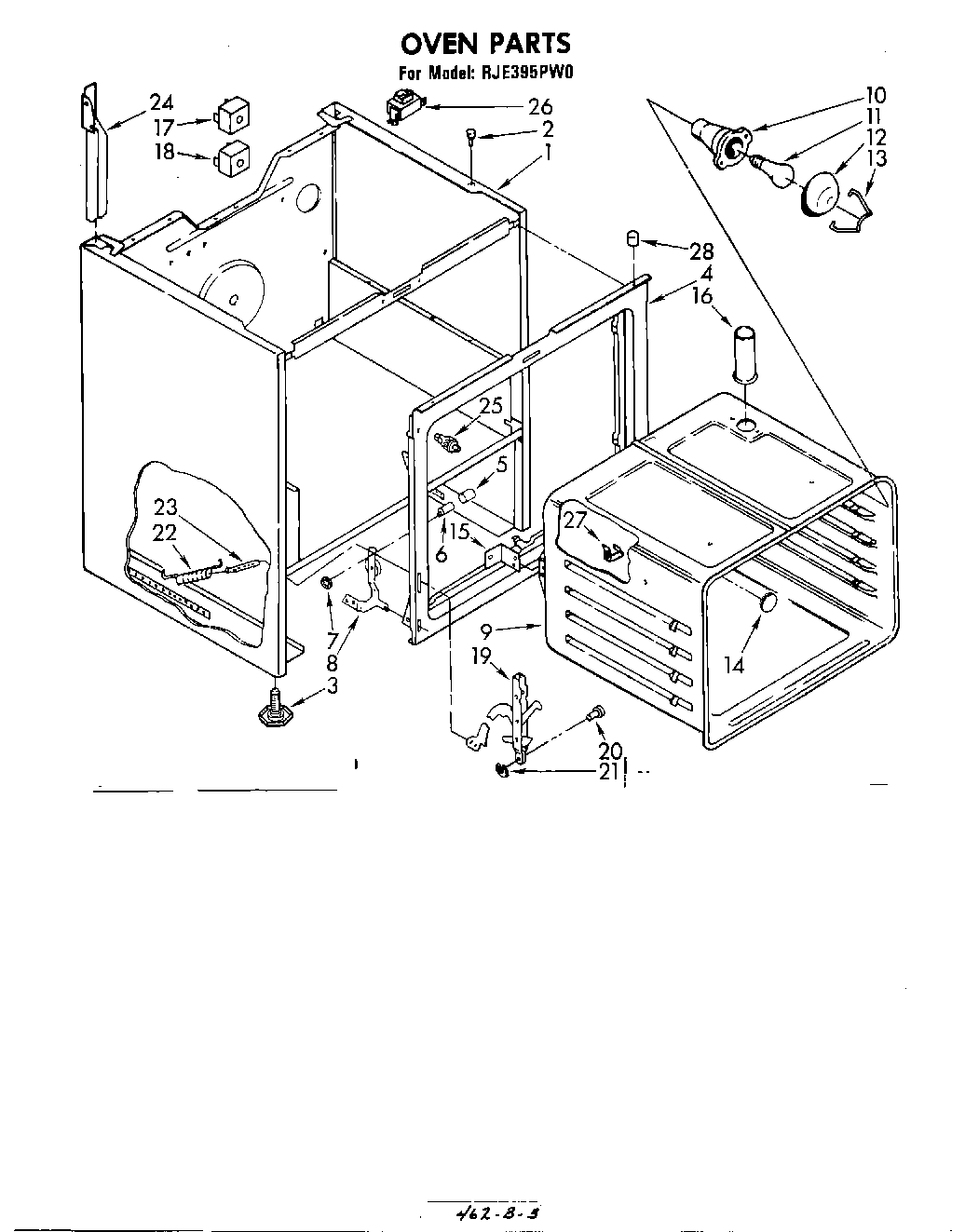

RJE395PW0 03 – OVEN

Products

Position	Product
1	Lining-Compartment Door (16331A,2A
1	Main Chassis (Coffee)
1	WPL 327872
1	Griddle Cover (Almond 1633L1A, L2A)
1	main chassis (almond)
2	238614 Whirlpool Bumper Hinge
3	WP233550 Whirlpool Leveling Feet
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Snubber, Door (2)
7	Pushnut (2)
8	Hinge (L.H.)
8	SCREW
8	Hinge (R.H.)
9	Oven (30“ Pyro)
9	Screw (3)
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light (Alt.)
10	Screw (10-12 x .875)
11	RANGE ONLY 40W 120V APPL BULB
12	Cover, Light
13	Retainer, Light
14	Plug Button
15	W10841059 Whirlpool Screw
15	Bracket, Oven (Mounting)
16	Vent, Oven
16	WP308685 Whirlpool Microwave Screw
17	Switch, Broil
18	Switch, Bake
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	WP308126 Whirlpool Door Spring
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Support, L.H. Channel
24	Support, R.H. Channel
25	Switch, Door
26	Ballast (Alt.)
26	Ballast (Alt.)
27	98005642 Whirlpool Clip
28	locator, cooktop
28	Screw, 8-32 x 5/16 (2)
