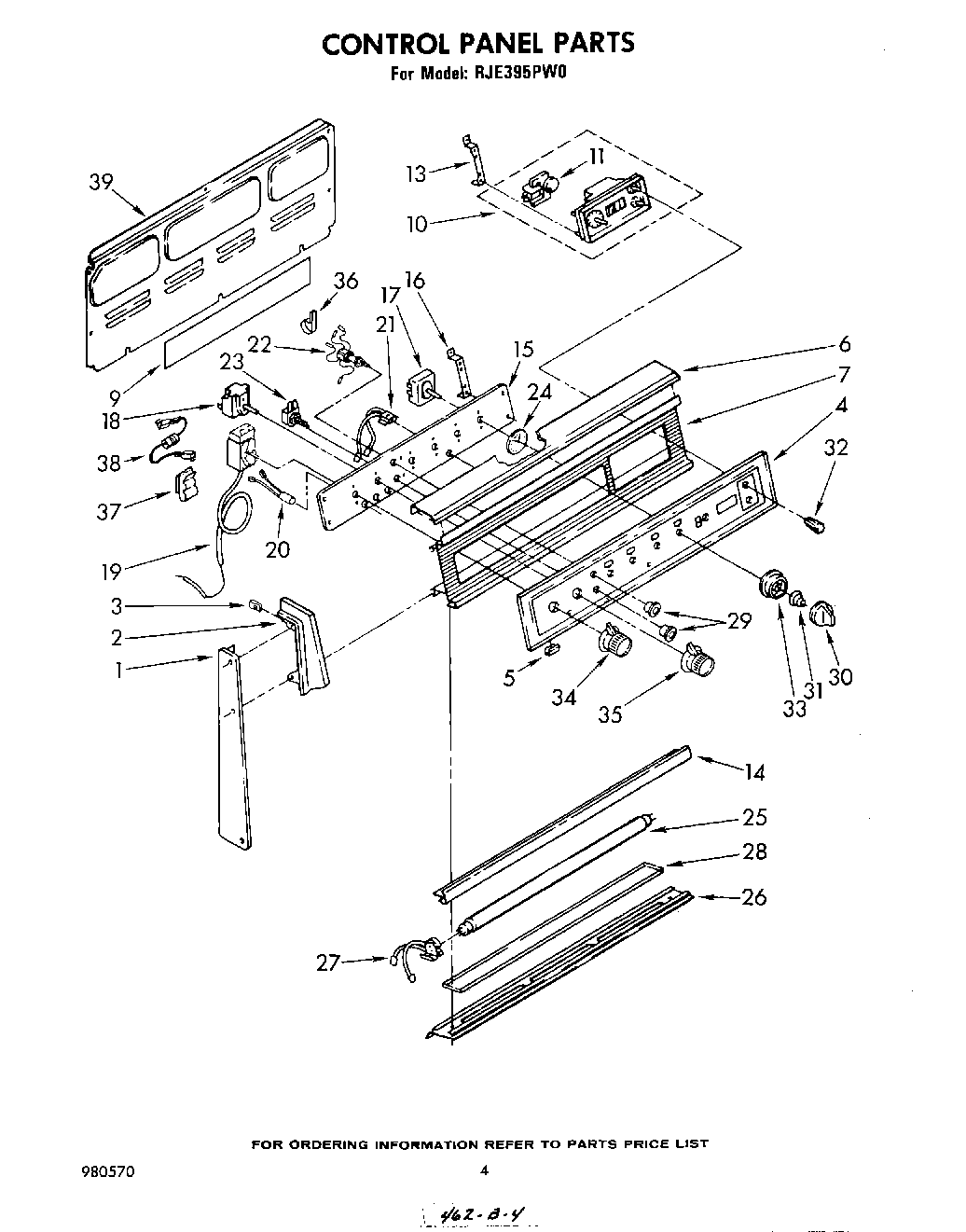

RJE395PW0 04 – CONTROL PANEL

Products

Position	Product
1	End Trim, R.H.
1	End Trim, L.H.
2	W11693756 Whirlpool Screw Assembly
2	End Cap, L.H.
2	End Cap, R.H.
3	Clip (4)
4	Control Panel, Glass
5	Retainer, Glass
6	Rail, Top
7	Oven Door Gasket
7	SCREW
7	Screw
9	Barrier Strip
10	Timer, Digital (Includes Illus. 29)
11	Timer, Automatic (Palnut (Timer))
11	Motor, Timer
13	Bracket, Timer (2)
14	Rail, Bottom
14	Screw,
15	Plate, Control Panel
16	Bracket, Control Mounting
16	Screw (2)
17	WP3149401 Whirlpool Infinite Burner Switch
17	WP3149399 Whirlpool Infinite Switch
18	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector (5 Position)
19	Thermostat, Oven Pyro
19	screw, 6-32 x 1/4 (2)
20	Light, Indicator 250V (6)
21	Bracket-Igniter
22	Switch, Fluorescent Light
23	nut, 3/8 x 27
23	Switch, Oven Light
24	Skirt, Knob (4)
25	WP95292 Whirlpool Fluorescent Light Bulb
26	Retainer, Lamp Glass
27	Socket, Fluorescent Light R.H.
27	fastener, speed nut
27	WP488627 Whirlpool Refrigerator Screw
27	Socket, Fluorescent Light L.H.
28	Lens, Lamp
29	bezel, switch (2)
30	knob, control
31	spring, bezel (4)
32	Knob, Timer (3)
33	bezel control knob (4)
34	Knob, Thermostat
35	Knob, Selector
36	WP488366 Whirlpool Refrigerator Clamp
36	WP3390631 Whirlpool Screw
37	WPL 309211
38	Resistor & Terminal Assembly
39	WPL 309239
