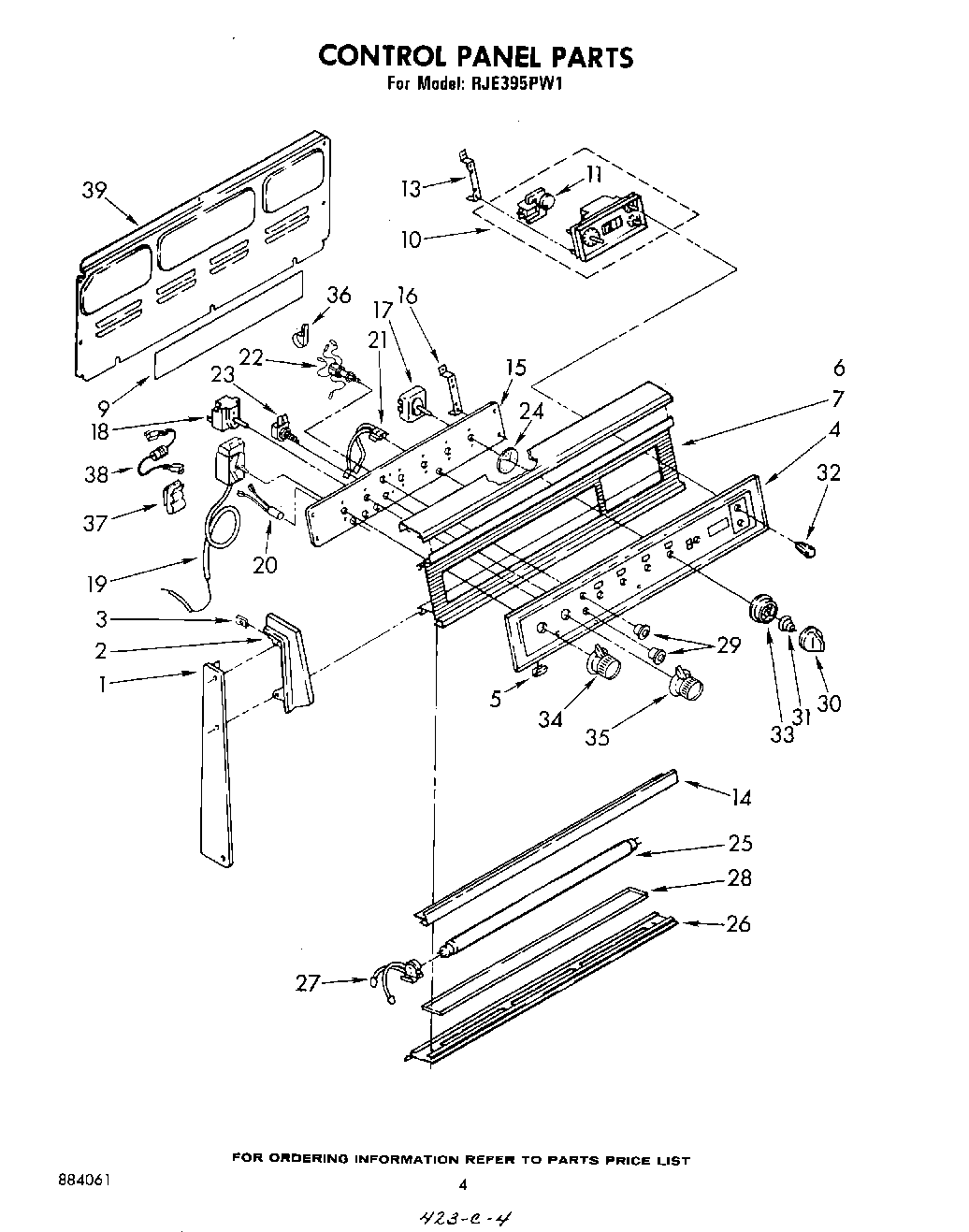

RJE395PW1 03 – CONTROL PANEL

Products

Position	Product
1	End Trim, R.H.
1	End Trim, L.H.
2	End Cap, L.H.
2	End Cap, R.H.
2	W11693756 Whirlpool Screw Assembly
3	Clip (4)
4	Control Panel, Glass
5	Retainer, Glass
6	Rail, Top
7	Screw
7	Oven Door Gasket
9	Barrier Strip
10	Timer, Digital (Includes Illus. 29)
11	Timer, Automatic (Palnut (Timer))
11	Motor, Timer
13	Bracket, Timer (2)
14	Rail, Bottom
14	Screw,
15	Plate, Control Panel
16	Bracket, Control Mounting
16	Screw (2)
17	WP3149401 Whirlpool Infinite Burner Switch
17	WP3149399 Whirlpool Infinite Switch
18	Switch, Selector (5 Position)
18	WP486579 Whirlpool Air Conditioner Screw
19	screw, 6-32 x 1/4 (2)
19	Thermostat, Oven Pyro
20	Light, Indicator 250V (6)
21	Bracket-Igniter
22	Switch, Fluorescent Light
23	nut, 3/8 x 27
23	Switch, Oven Light
24	Skirt, Knob (4)
25	WP95292 Whirlpool Fluorescent Light Bulb
26	Retainer, Lamp Glass
27	fastener, speed nut
27	Socket, Fluorescent Light L.H.
27	Socket, Fluorescent Light R.H.
27	WP488627 Whirlpool Refrigerator Screw
28	Lens, Lamp
29	Bezel Switch (1)
30	Knob, Control (4)
31	spring, bezel (4)
32	Knob, Timer (3)
33	bezel control knob (4)
34	Knob, Thermostat
35	WP688805 Whirlpool Spring Clip
35	Knob, Selector
36	WP488366 Whirlpool Refrigerator Clamp
36	WP3390631 Whirlpool Screw
37	WPL 309211
38	Resistor & Terminal Assembly
39	WPL 309239
39	SCREW
