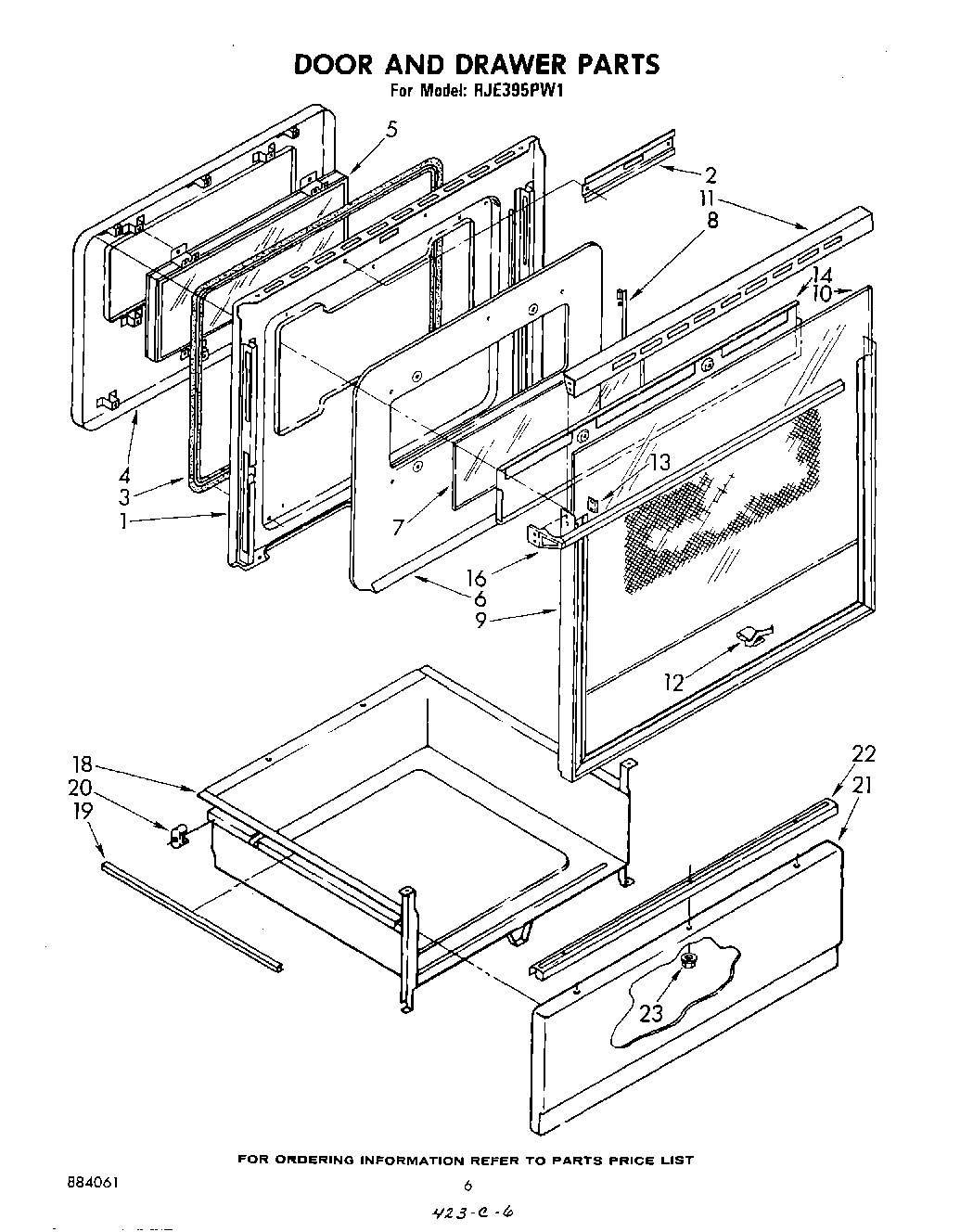

RJE395PW1 04 – DOOR AND DRAWER

Products

Position	Product
1	Screw (3)
1	Liner, Door
2	Screw (2)
2	Channel, Latch
3	Seal, Fiberglass
4	Panel, Inner
5	Window Package
6	Retainer, Insulation
7	Glass (6.81“ x 18.31“)
8	Retainer, Glass (2)
9	frame, door 30“
10	Glass, Outer
11	Screw, 10A x 1/2 (2) (Black)
11	Top, Door Frame
12	clip, glass (10)
13	screw (3)
14	Baffle, Heat
16	Handle, Oven Door
16	WP912618 Whirlpool Dishwasher Screw
16	WP355515 Whirlpool Screw
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
20	WP308685 Whirlpool Microwave Screw
21	Panel, Drawer (New Avocado)
21	Panel, Drawer (Platinum)
21	Panel, Drawer (Toast)
21	Panel Drawer (Harvest Gold)
21	Panel Drawer (Black)
21	Panel, Drawer (Screw, 8-32 (3))
21	Panel, Drawer (Almond)
21	Panel Drawer (White)
21	Panel, Lower (Coffee)
22	Handle, Drawer
23	WP486255 Whirlpool Air Conditioner Nut
