RJGR3663A 03 – OVEN BODY/GAS CONTROLS
Written by
in

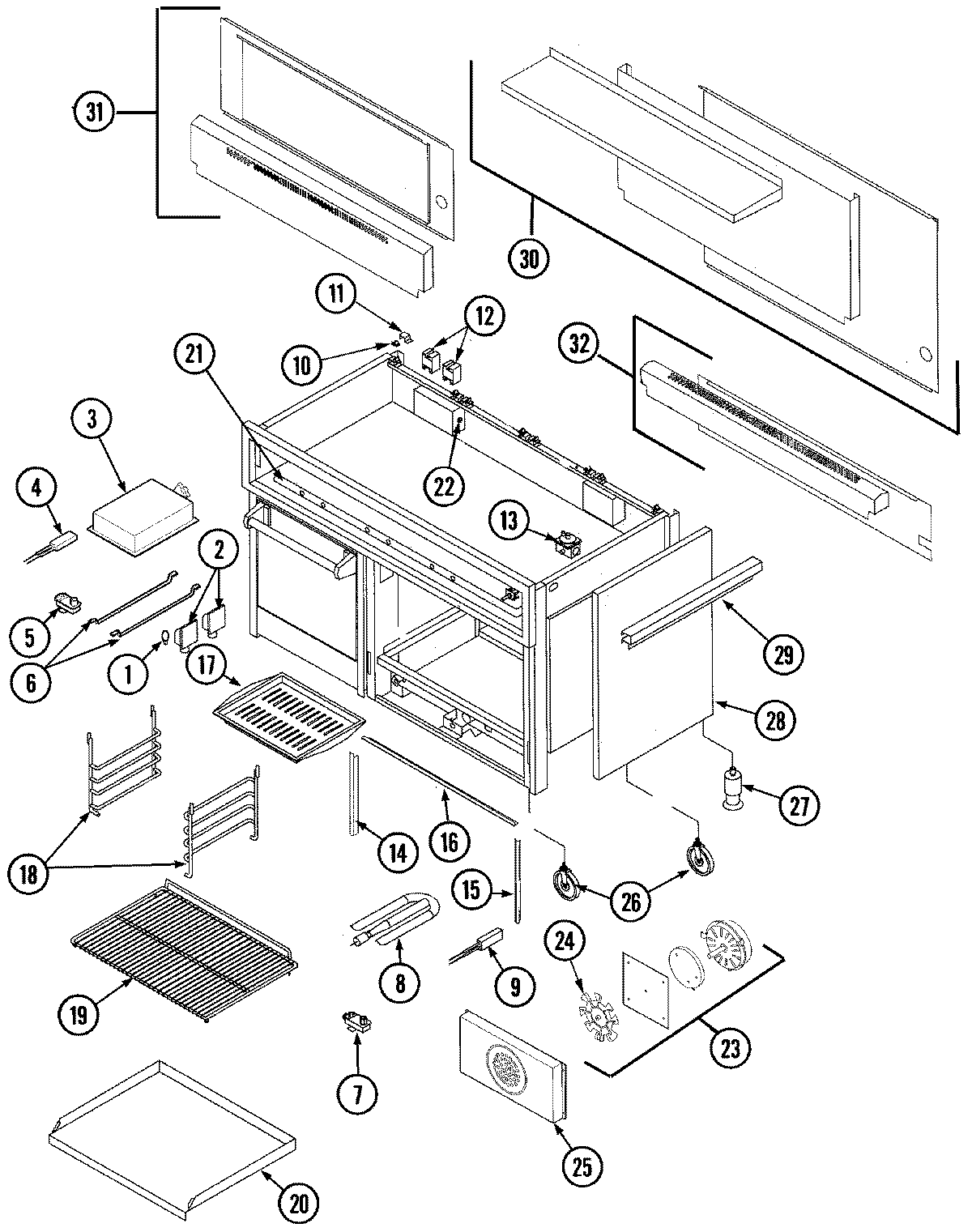

RJGR3663A 03 – OVEN BODY/GAS CONTROLS
Products
Position
Product
NI
MAY 70001885
NI
MAY 70002591
1
MAY 70001024
2
MAY 70001906
3
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
3
MAY 70001088
3
MAY 70001903
5
MAY 70001031
7
MAY 70001071
7
MAY 70001756
7
MAY 70001785
7
MAY 70001274
7
MAY 70001152
7
MAY 70001103
7
MAY 70001485
8
MAY 70002618
9
MAY 70001036
10
MAY 70001229
11
MAY 70001230
12
MAY 70001044
13
MAY 70001753
13
MAY 70002762
13
MAY 70001041
14
MAY 70001198
15
MAY 70001199
16
MAY 70001202
18
MAY 70001097
19
MAY 70001093
20
MAY 70001096
21
MAY 70001867
22
MAY 70001232
22
MAY 70001231
23
MAY 70001932
24
MAY 70001028
25
MAY 70001045
26
MAY 70001290
26
MAY 70001289
27
MAY 70001237
28
MAY 70001240
29
MAY 70001234
30
MAY 70003029
30
MAY 70003031
30
MAY 70003032
31
MAY 70003025
32
MAY 70003036
←
