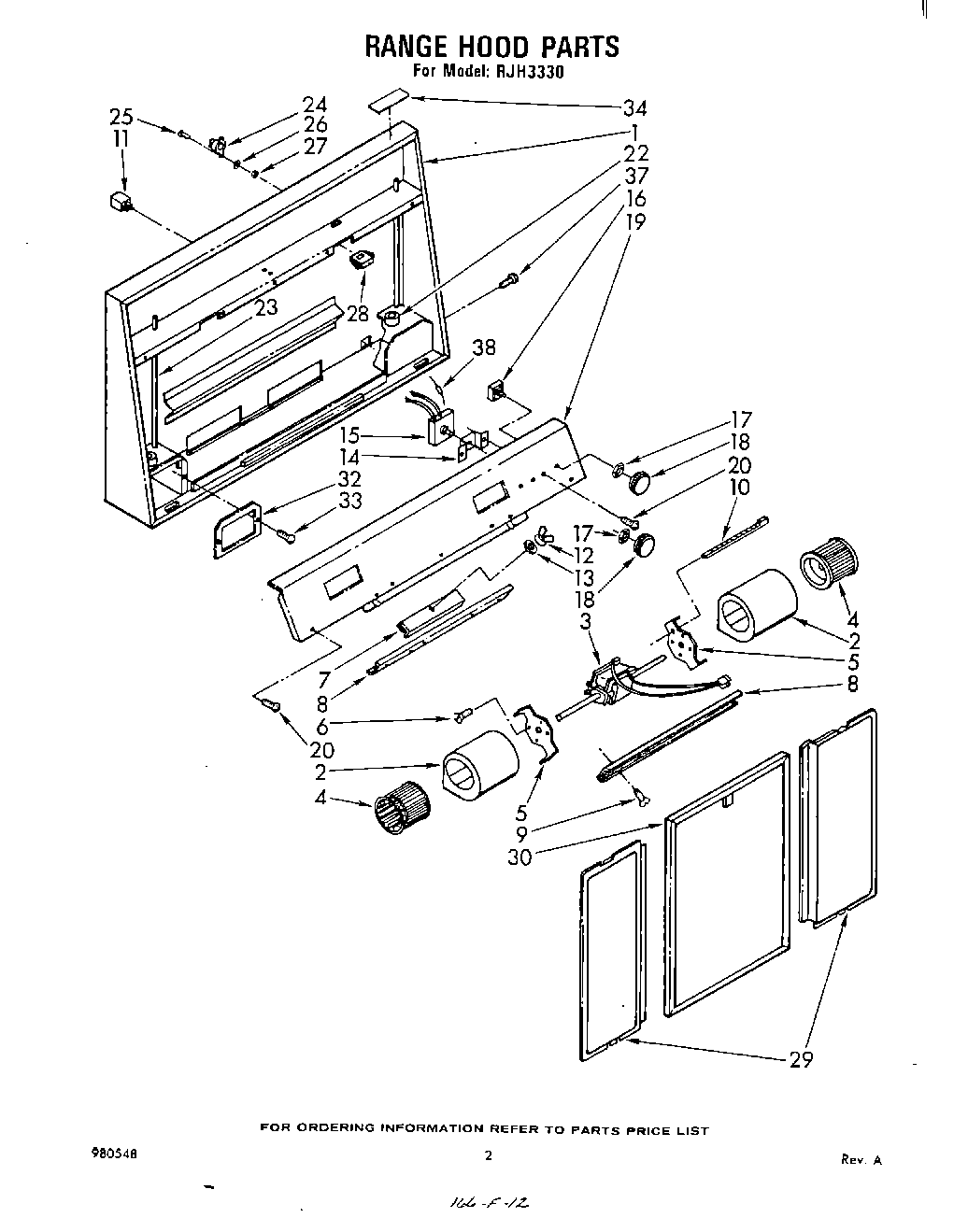

RJH3330 02 – SECTION

Products

Position	Product
	List, Repair Parts
	Instructions, Installation
	LITERATURE PARTS
1	Main Body (Not a Serviceable Part)
2	Wrapper (2)
3	Motor
4	Blower Wheel (2)
5	Bracket, Motor (2)
6	WP489128 Whirlpool Refrigerator Screw
7	Bracket, Blower Mounting
8	Channel, Blower (2)
10	WPW10339879 Whirlpool Wire Tie
11	Outlet, 120V
12	W10080180 Whirlpool Nut
13	Washer
14	Bracket, Switch
15	Switch, Fan Motor
16	Switch, Light
17	Nut, 15/32-32
18	Knob (2)
19	Front Panel
20	Screw, 8 x 1/4 (7)
22	Receptacle, Light
23	Tubing, Aluminum (2)
24	Switch, Thermal
25	Screw, 6-32 x 1/4 (2)
26	Washer (2)
27	Nut, 6-32 (2)
28	Receptacle, Motor Wire
29	Lens, Light
30	Filter, Aluminum
32	Cover, Wiring Box (2)
33	Screw, 8 x 1/2 (4)
34	Nameplate
37	Screw, 10-32 x 3/8
38	Diode, Wire
38	285006 Whirlpool Spray
38	Ductless Kit Model RCH3630
