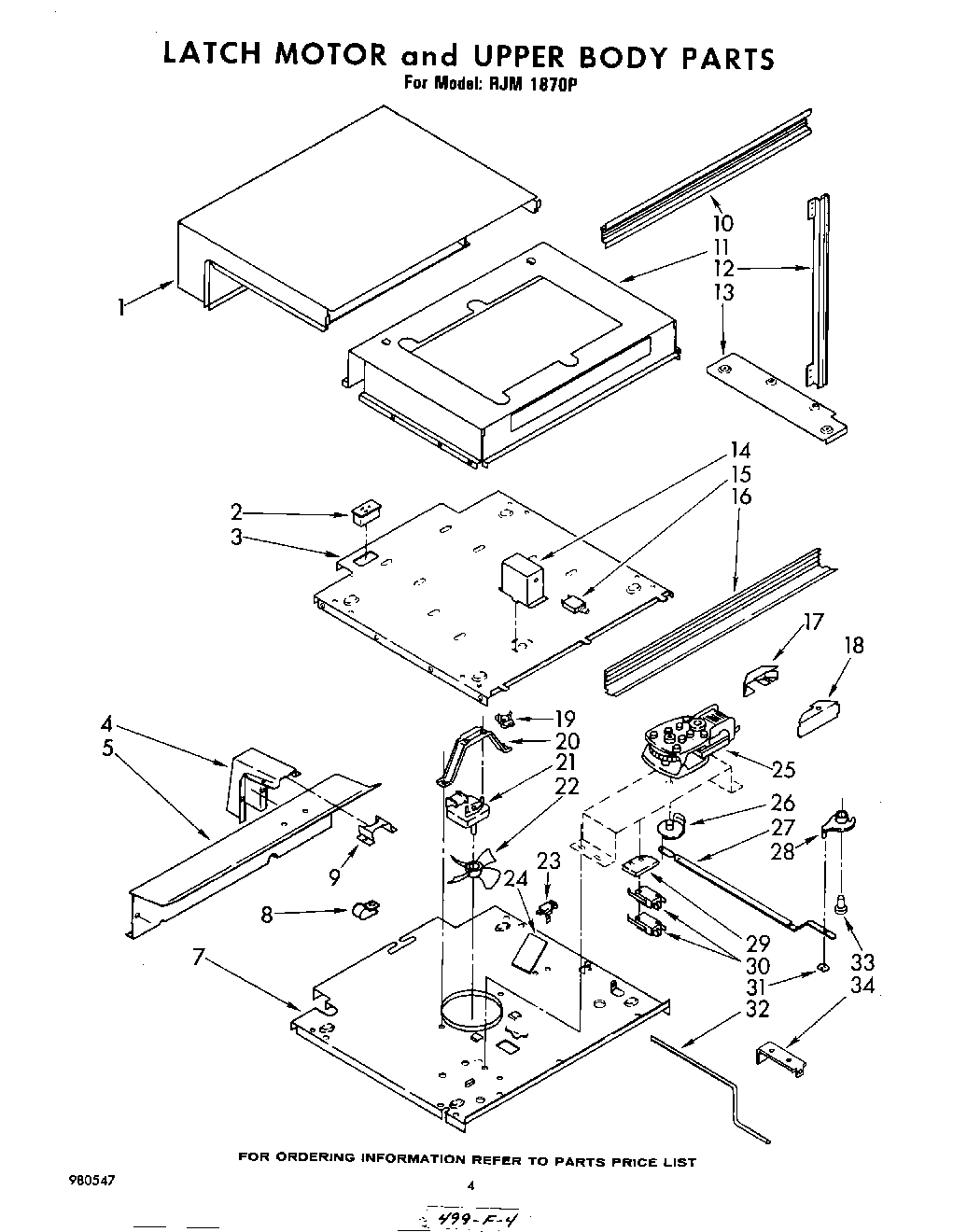

RJM1870P 03 – LATCH AND UPPER BODY

Products

PositionProduct
1Duct, Top
2Outlet, Grounded
3Top Casing
4WPL 866412
5WPL 866411
7Casing, Fan
8WPL 865797
9WPL 868222
10Trim, Top Vent
11Base, Support
12Trim, L.H. (Vertical)
12Trim, R.H. (Vertical)
12WPL 595119
12Screw, 6-32 x 5/16 (10)
13Rail, Mounting R.H.
13Rail, Mounting L.H.
13Screw, 5/16-18 x 1/2
14Box, Circuit Breaker
15Plate, Reset
15Circuit Breaker (20 Amp)
15WPL 98754
16Trim, Bottom Vent
17Cover, Latch Housing
18Housing, Latch
19WP486754 Whirlpool Compactor Screw
19279080 Whirlpool Thermostat
19Washer (3)
20Bracket, Fan Motor
21Motor, Fan
21Nut
22Fan Blade
22WPL 866392
23Switch, Limit
23Screw (2)
24Insulator, Switch
25Motor (Alternate)
25WPL 273225
26cam, door latch (alternate)
26Cam, Door Latch (Pin, Spring)
27Tie Bar
28Washer (2)
28Latch, Door
28Screw 10-24 x 1/2
29Insulator, Limit Switch (3)
30Screw, 10-24 x 1/2 (3)
30Switch, Upper Limit (Alternate)
30Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
30Switch, Lower Limit (2) (Alternate)
31Cam, Door Latch (Pushnut, 3/16“)
32Rod Switch Interlock
33Axle, Latch
33Pushnut, 1/4
34WPL 868799
