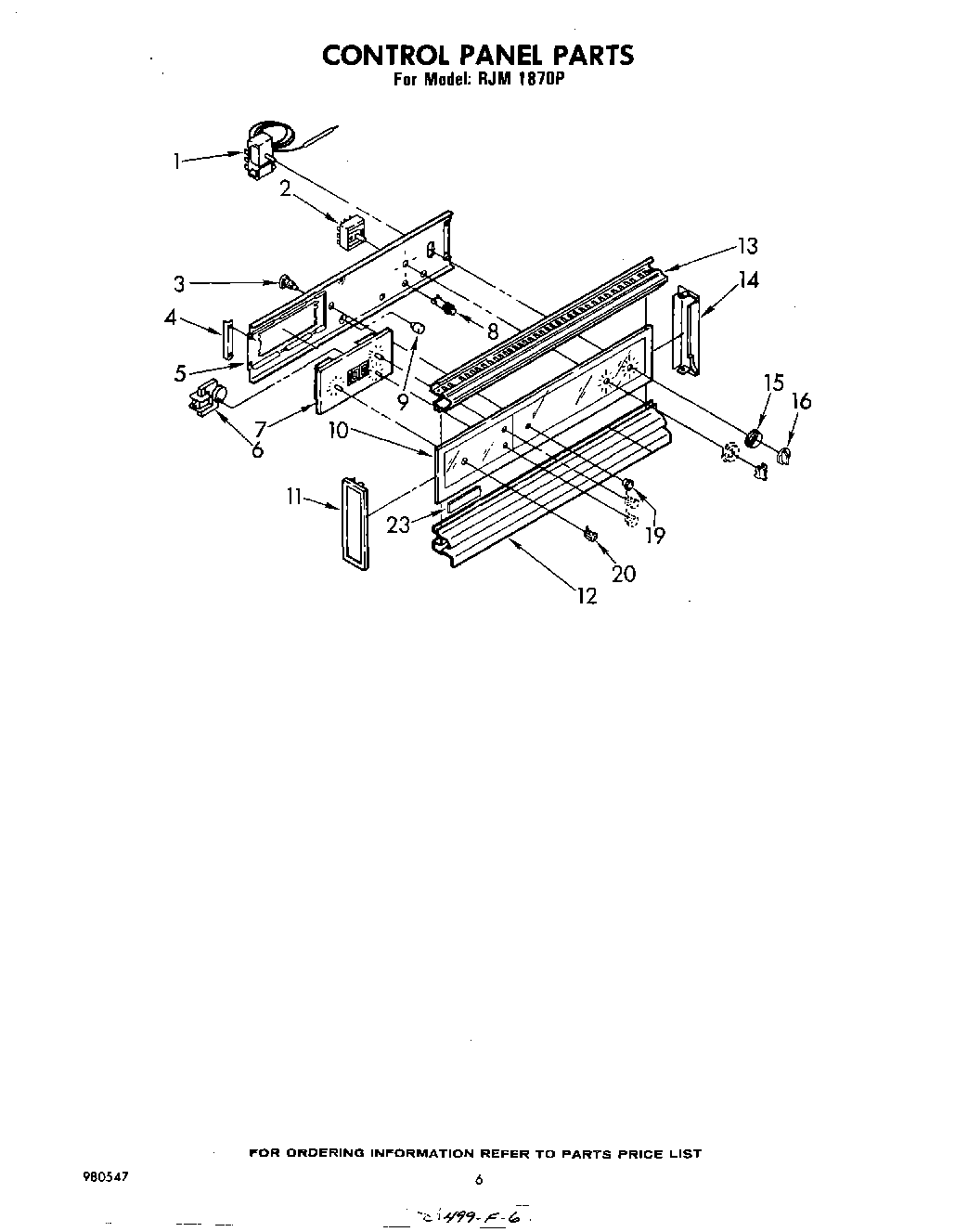

RJM1870P 04 – CONTROL PANELadmin2025-04-26T12:08:50+00:00RJM1870P 04 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Thermostat |
| 2 | WPL 486525 |
| 2 | Switch, Oven Selector |
| 3 | WPL 98754 |
| 3 | WPL 866138 |
| 4 | WPL 866395 |
| 5 | WPL 868402 |
| 5 | Screw, 10-24 x 1/2 (3) |
| 6 | WPL 866403 |
| 7 | Timer, Digital (Complete) (Includes Illus. 6 & 20) |
| 7 | Hex Nut, 10-32 (6) |
| 8 | Light, Pilot Oven |
| 8 | Light, Pilot (Clean/Lock) (2) |
| 9 | WPL 834956 |
| 10 | Glass, Control Panel |
| 11 | End Cap (L.H.) |
| 12 | Screw 10-24 x 1/2 |
| 12 | WPL 868531 |
| 13 | Top, Control Panel |
| 13 | WPL 595119 |
| 14 | End Cap (R.H.) |
| 15 | Bezel, Knob (2) |
| 16 | Knob, Control (2) |
| 19 | WPL 866053 |
| 20 | WPL 241383 |
| 23 | WPL 866454 |
