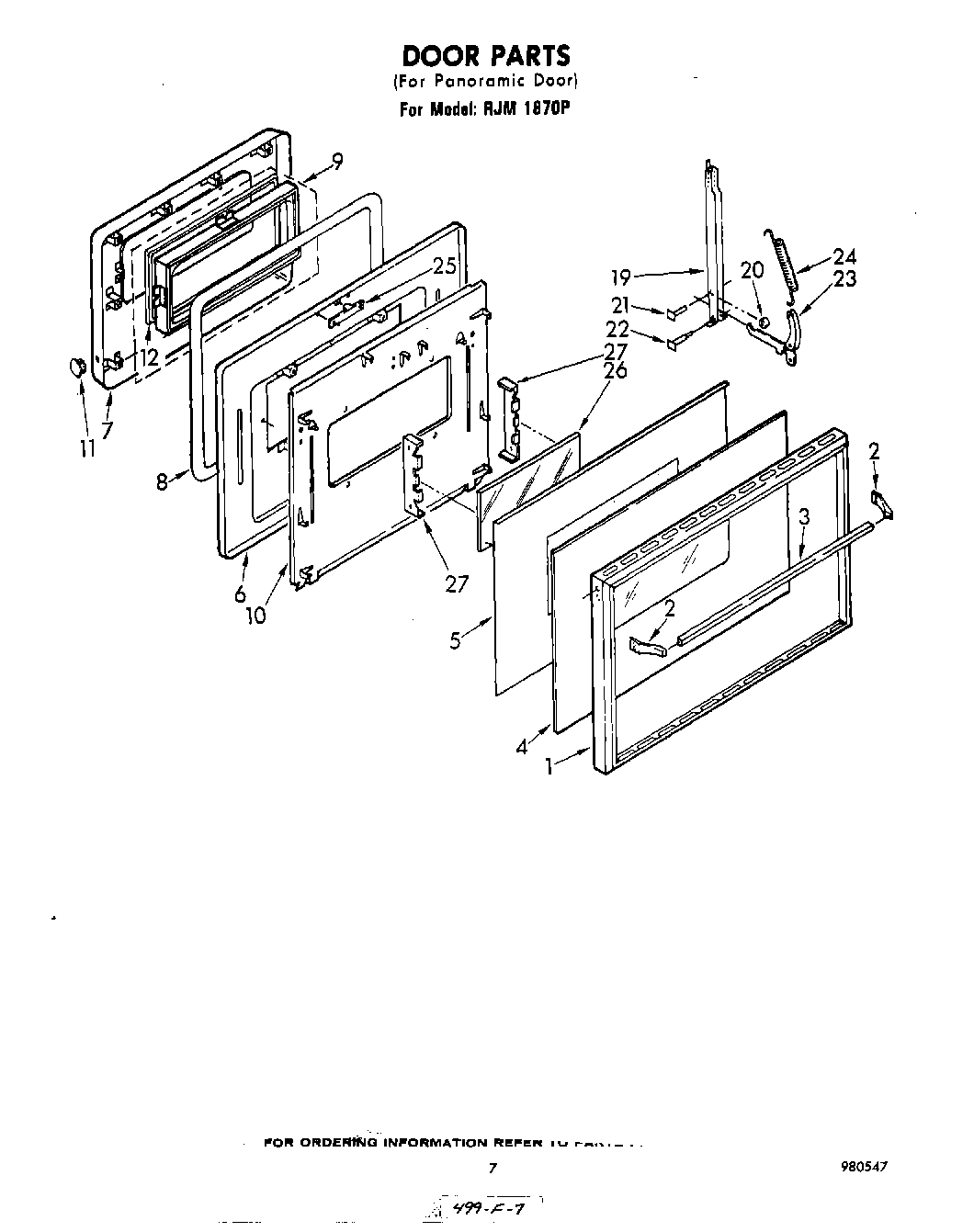

RJM1870P 05 – DOOR

RJM1870P 05 – DOOR

Written by

in

RJM1870P 05 – DOOR

Products

Position	Product
1	Frame, Oven Door
2	Nut
2	Stanchion, Handle (2)
2	Screw, 6-32 x 3/8 (4)
3	Grip, Handle
4	Glass, Outer
5	Panel, Heat Reflector
6	Liner, Oven Door
7	Baffle
8	Seal, Door
9	Window
10	Panel, Air Wash
11	Plug Button 3/16“ (2)
12	“J“ Moulding
19	Screw
19	Channel Assembly (2)
19	Screw 10-24 x 1/2
19	Washer (2)
20	Roller, Stop (2)
21	Rivet (2)
21	Nut, Speed
22	Pin, Hinge (2)
23	Arm, Hinge (2)
24	Spring, Door (2)
25	Strike Assy (Door)
25	Screw, 10-24 x 1/2
25	Washer (4)
25	W10080180 Whirlpool Nut
26	Glass, Inner
27	Retainer, Glass
27	Screw, 10-24 x 1/2 (3)
