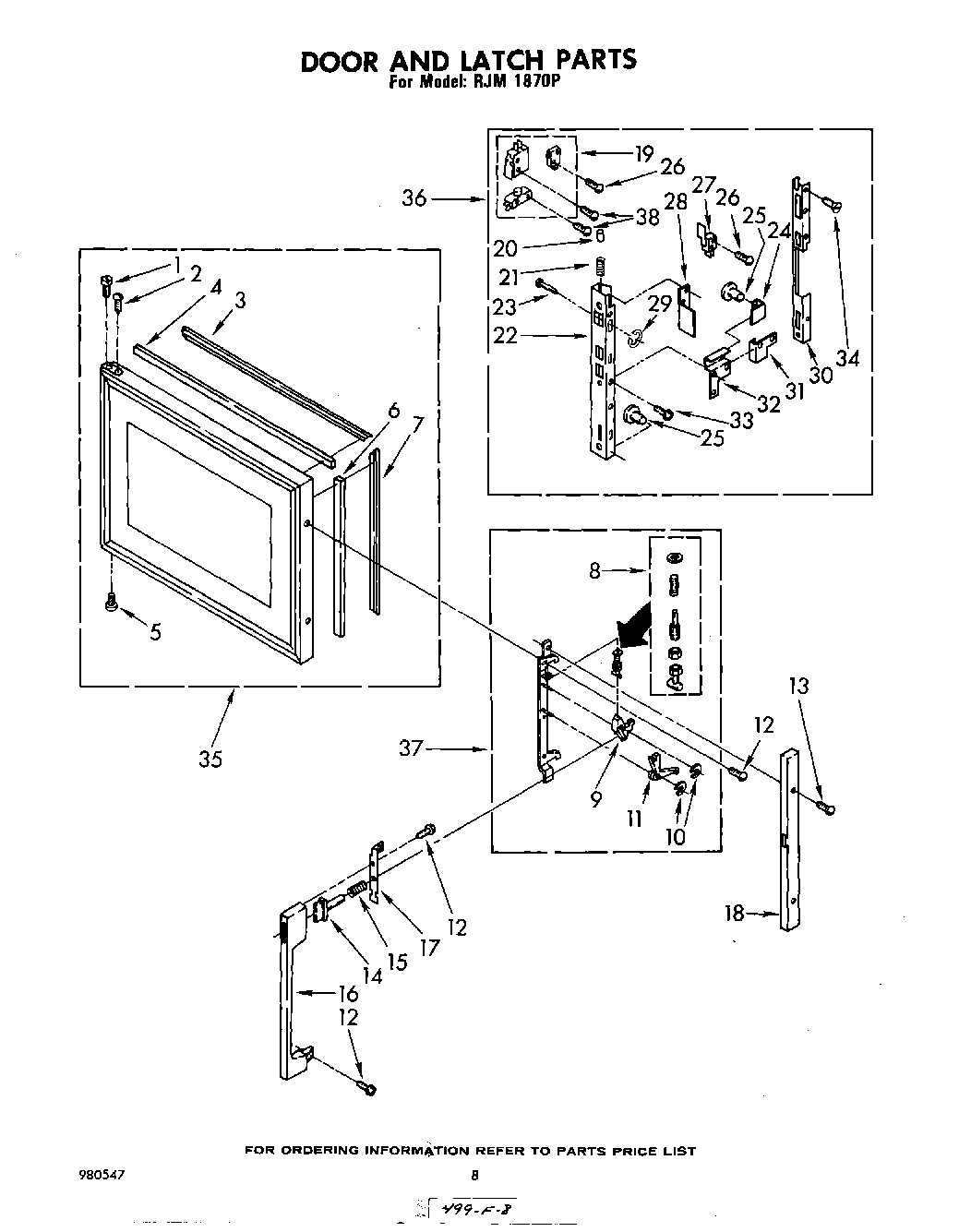

RJM1870P 06 – DOOR AND LATCH

Products

Position	Product
1	Screw, 8D x .312 (2)
2	Panel, Drawer (Screw, 8-32 (3))
3	Retainer, Top & Bottom Seal (2)
4	Seal, Top & Bottom (2)
5	Pin, Hinge
6	Seal, Side (2)
7	Retainer, Side Seal (2)
8	Plunger, Latch
9	Cam
10	WPL 310386
11	WPL 310120
12	WP489128 Whirlpool Refrigerator Screw
13	Screw, 8-32 x 5/16 (2)
14	Button, Door Handle
15	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
16	Handle, Door
17	Bracket, Door Handle
18	End Cap, Door
19	switch kit, door (kit contains primary, monitor & secondary switches. All 3 switchs must be replace
20	WPL 310124
21	Rear Top Burner-Rt. or Lt. (Inc`s. 32 & 33)
22	Guide, Interlock (Not a Serviceable Part)
23	Pin, Roller (2)
24	Foam Strip 14`` x 3/8`` x 1/2``xxx
25	WPL 310951
26	Screw, 4-40 x 10 (2)
27	Switch, Light
28	WPL 310154
29	Ring, Retaining (2)
30	Slide, Interlock (Not a Serviceable Part)
31	Insulator, Switch (Top)
32	Bracket, Primary Switch
33	WPL 310629
34	WPL 309080
35	Door, Complete
36	WPL 328655
37	Latch, Door
38	Screw
