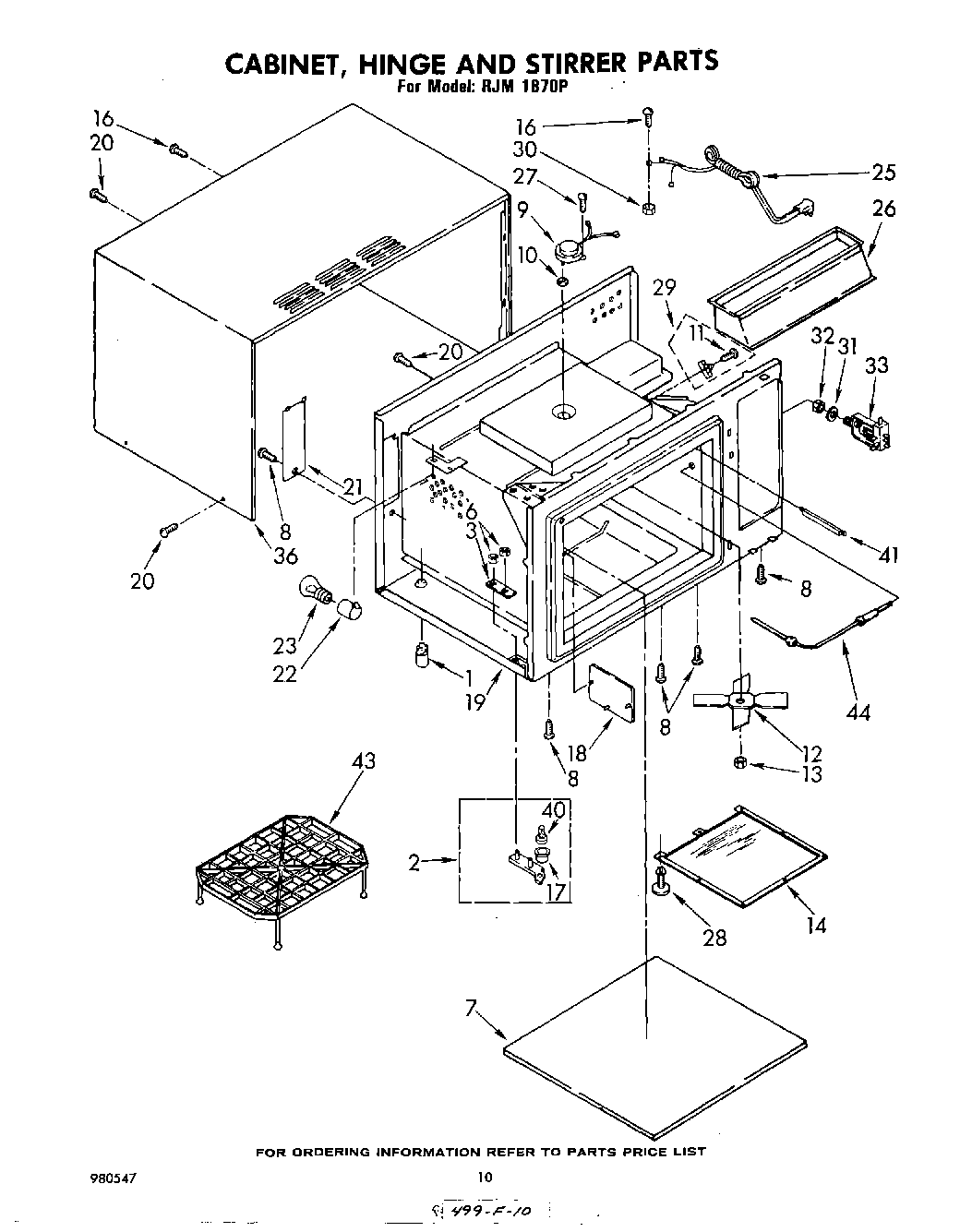

RJM1870P 07 – CABINET, HINGE, AND STIRRER , LITERATURE

Products

Position	Product
1	Foot, Mounting
2	Hinge, Door (Top)
2	WPL 328127
3	Plate, Hinge
7	Base, Ceramic (Install W/Silastic No. 482338)
8	panel, top (screw, 10a x 3/8 (3))
9	Motor, Stirrer
10	Gasket, Stirrer Motor
11	Screw
12	Stirrer Blade
13	Nut, Hex (1/4-20)
14	Cover, Stirrer
16	Main Chassis (Screw, 10-32 x 1/2)
17	Bushing
18	Shield, Exhaust Probe
19	Base & Cavity Assembly (Not Serviceable)
20	Screw, 10A x 1/2 (2) (Black)
21	Cover, Lamp
22	Socket, Snap-In
23	RANGE ONLY 40W 120V APPL BULB
25	Cord, Power (Alternate)
26	Baffle, Air Exhaust
27	WP486754 Whirlpool Compactor Screw
28	Fastener (2)
29	Fuse, Thermal
30	Hex Nut, 10-32 (2)
31	Washer
32	Nut
33	Jack, Probe
36	Wrapper, Cabinet
40	Pin, Hinge
41	Cover, Rivet
43	Rack, Meat (Micro)
44	FOIL, ALUMINUM OVEN (18“ X 25 )
44	Wire, 25` Roll (Black 14 Ga.)
44	Wire, 25` Roll (Red 14 Ga.)
44	WP482338 Whirlpool Refrigerator Adhesive
44	242831 Whirlpool Oven Wire
44	WPW10208653 Whirlpool Insulation
44	WPL 310930
44	WPL 310619
44	WPL 310039
44	350956 Whirlpool Spray Assembly
44	WPL 980547
44	WPL 868547
44	WPL 261819
44	WP72107 Whirlpool Touchup
44	Wire, 25“ Roll (White 14 GA.)
44	Almond (Uncut)
44	Wire (14 Ga. 150 c Blue)
44	Wire (14 Ga. 150 c Brown)
44	Spacer-Oven Door Glass (Lt. or Rt.)
44	WPL 591014
44	Touch-Up, Oven
44	WPL 308500
44	1
44	Wire (14 Ga. 200 c Brown)
44	18 Ga. 80~c Rating (Red)
44	Wire (12 Ga. 150 c Black)
44	WPL 834469
44	WPL 834470
44	Wire (14 Ga. 150 c Yellow)
44	Meat Probe
44	WPL 307843
44	WPL 310848
44	Wire (14 Ga. 150 c Orange)
44	Wire (14 Ga. 150 c Green)
44	WPL 799351
