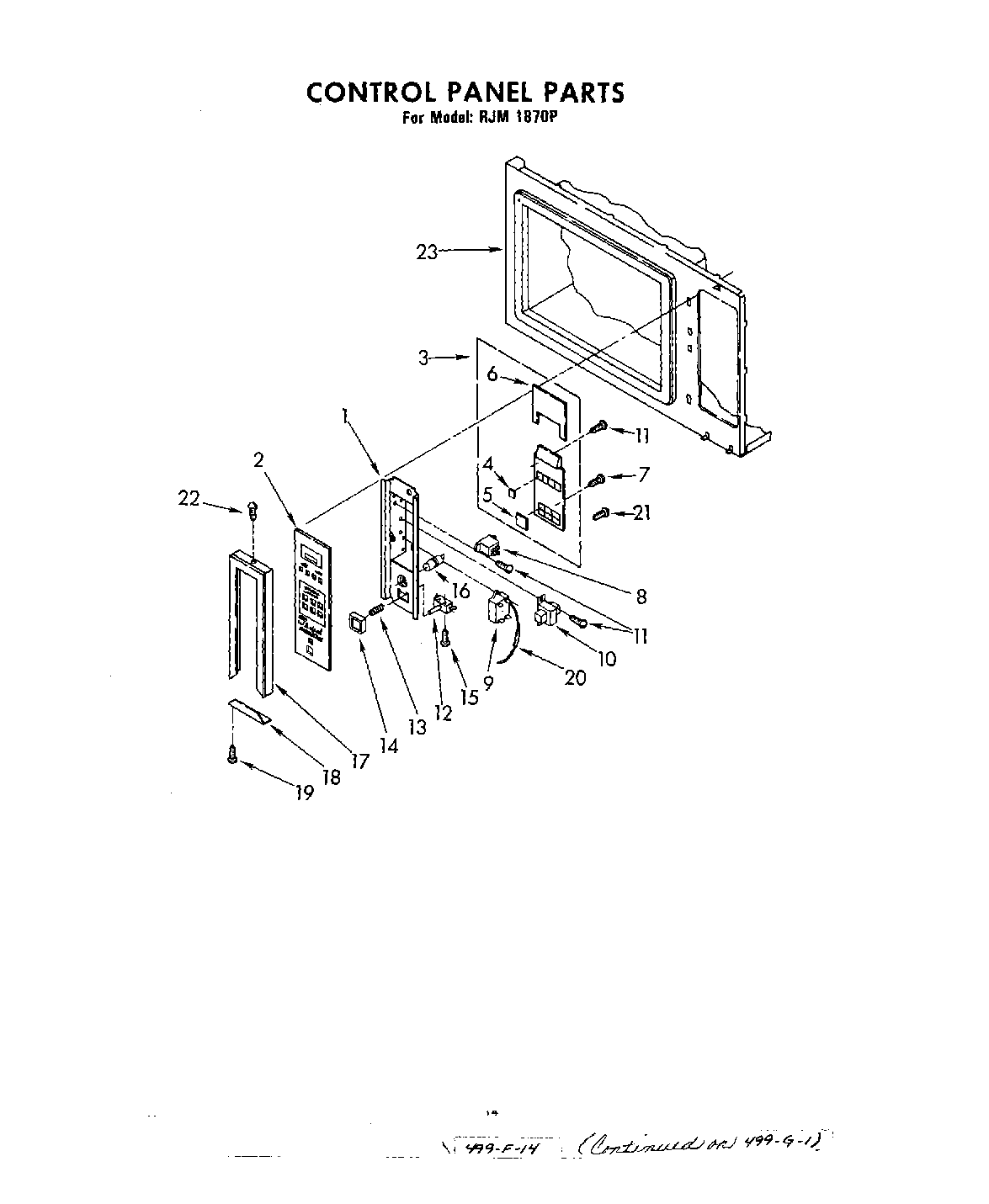

RJM1870P 09 – CONTROL
Written by
in
RJM1870P 09 – CONTROL
Products
Position
Product
1
Bracket, Control
2
Panel, Control
3
Control & Button Assembly
4
Button, Small
5
Button, Large
6
Barrier
7
Screw, 6-18 x 3/8 (6)
8
relay power (12 v.d.c.) (alternate)
8
relay power (12 v.d.c.) (alternate)
9
Relay, Latching
10
Transformer, Control
11
WP486754 Whirlpool Compactor Screw
12
Switch, Start
13
Spring, Compression
14
Button, Push To Start
15
Screw
16
Light, Indicator (On)
17
Frame, Control Panel
18
End Cap, Control Panel
19
Screw, 8-18BT x .88 (2)
20
Resistor, 30HM
21
Screw, 80 x 5/16
22
WP488627 Whirlpool Refrigerator Screw
←
