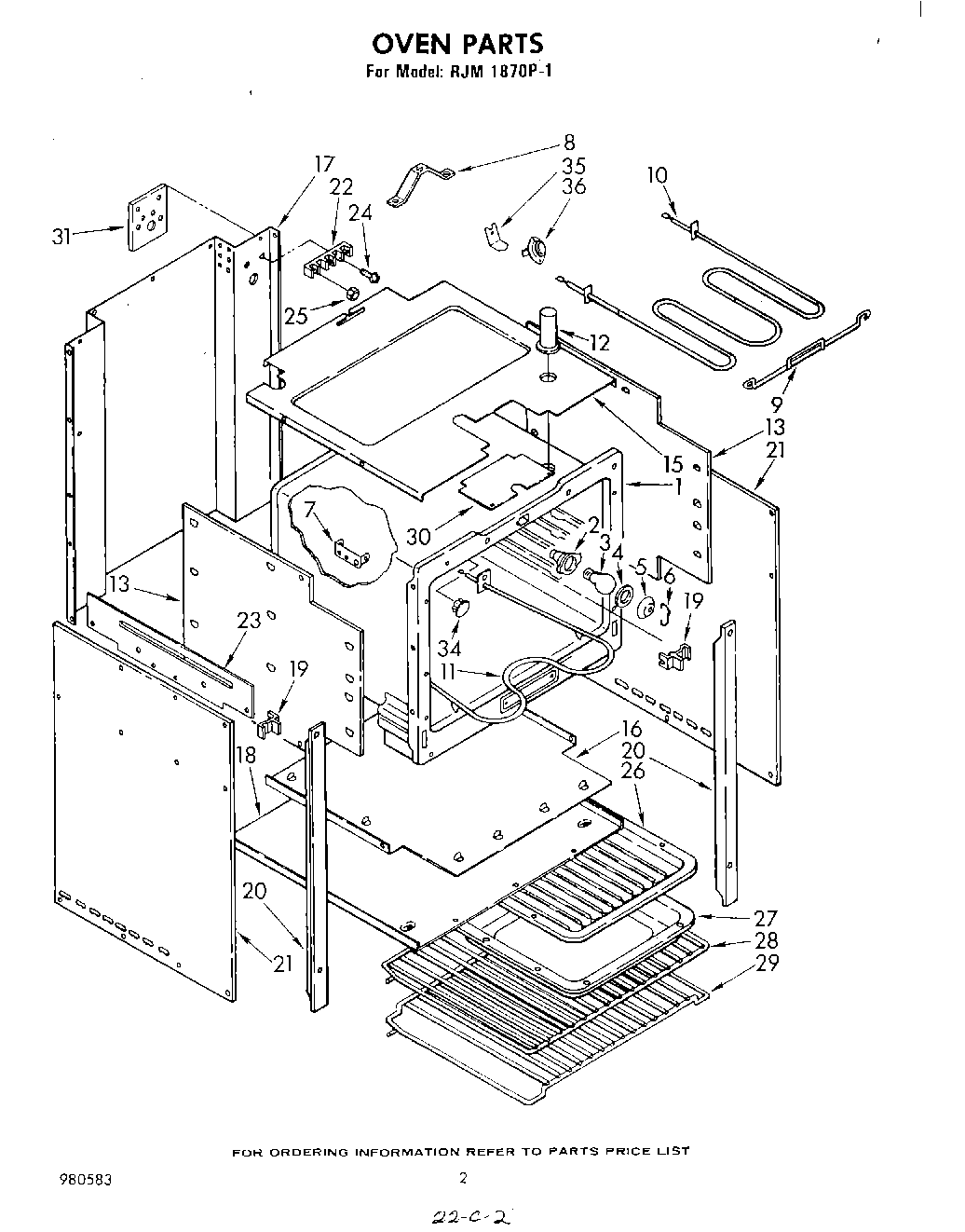

RJM1870P1 02 – DOOR

Products

Position	Product
1	Oven Body
2	Socket, Light
2	Washer (2)
3	RANGE ONLY 40W 120V APPL BULB
4	Gasket, Light
5	Cover, Light
6	retainer, oven light
7	Bracket, Thermo Bulb
8	Spacer, Fan Casing
9	Hanger, Broil Unit
10	Unit Bake (Screw, 10-24 x 1/2 (2))
10	Unit, Broil
11	WP866375 Whirlpool Range Bake Element
12	Screw, 10-24 x 3/8 (2)
12	vent tube (alternate)
12	vent tube (alternate)
13	Retainer, Insulation Side (2)
15	Retainer, Insulation (Top)
16	Retainer, Insulation Bottom
17	Casing, Back
18	Casing, Bottom
19	Spacer Trim (4)
20	Trim, Oven Front (2)
21	Casing, Side (2)
22	WP8203546 Whirlpool Terminal Block
23	Reinforcement, Side Panel
24	Screw,10-24 x 1/2
25	Hex Nut, 10-32 (6)
26	4396923 Whirlpool Broil Pan Set Gray Porcelain
27	Pan, Broiler
28	Rack, Oven Regular
29	Rack, Oven (Offset)
30	Cover, Access
31	WPL 834649
31	Plate, Conduit
34	Plug, Button
35	Screw, 10-24 x 1/2 (3)
35	Bracket, Switch
36	Washer (3)
36	Switch, Thermal
