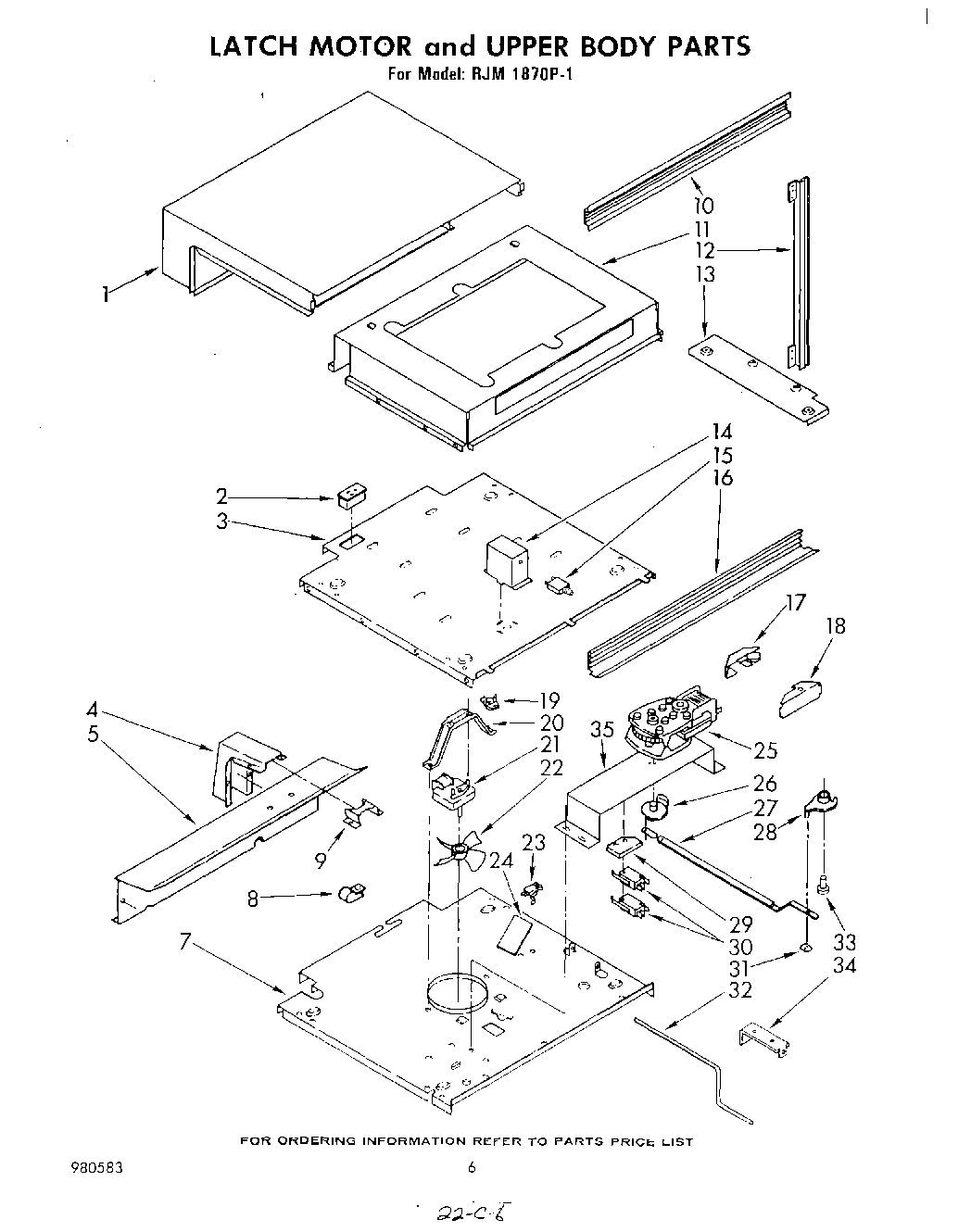

RJM1870P1 05 – SHELF

Products

Position	Product
1	WPL 866454
1	Duct, Top
2	Outlet, Grounded
3	Top Casing
4	WPL 866412
5	WPL 866411
7	Casing, Fan
8	WPL 865797
9	WPL 868222
10	Trim, Top Vent
11	Base, Support
12	Trim, R.H. (Vertical)
12	Trim, L.H. (Vertical)
12	WPL 595119
12	Screw, 6-32 x 5/16 (10)
13	Rail, Mounting L.H.
13	Screw, 5/16-18 x 1/2
13	Rail, Mounting R.H.
14	Box, Circuit Breaker
15	Plate, Reset
15	WPL 98754
15	Circuit Breaker (20 Amp)
16	Trim, Bottom Vent
17	Cover, Latch Housing
18	Housing, Latch
19	279080 Whirlpool Thermostat
19	Washer (3)
19	WP486754 Whirlpool Compactor Screw
20	Bracket, Fan Motor
21	Motor, Fan
21	Nut
21	Motor, Fan (Alternate)
22	WPL 866392
22	Fan Blade (Alternate)
22	Fan Blade
23	Switch, Limit
23	Screw (2)
24	Insulator, Switch
25	Motor (Alternate)
25	Motor, Door Latch (Alternate)
25	WPL 273225
26	cam, door latch (alternate)
26	Cam, Door Latch (Pin, Spring)
26	Cam, Door Latch (Alternate)
27	Tie Bar
28	Screw 10-24 x 1/2
28	Washer (2)
28	Latch, Door
29	Insulator, Limit Switch (3)
30	Switch, Upper Limit (Alternate)
30	Switch, Lower Limit (2) (Alternate)
30	Switch, Upper Limit (Alternate)
30	Switch, Lower Limit (2) (Alternate)
30	Switch, Upper Limit (Alternate)
30	Screw, 10-24 x 1/2 (3)
30	Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
30	Switch, Lower Limit (2) (Alternate)
31	Cam, Door Latch (Pushnut, 3/16“)
32	Rod Switch Interlock
33	Pushnut, 1/4
33	Axle, Latch
34	WPL 868799
35	Support Latch Motor
