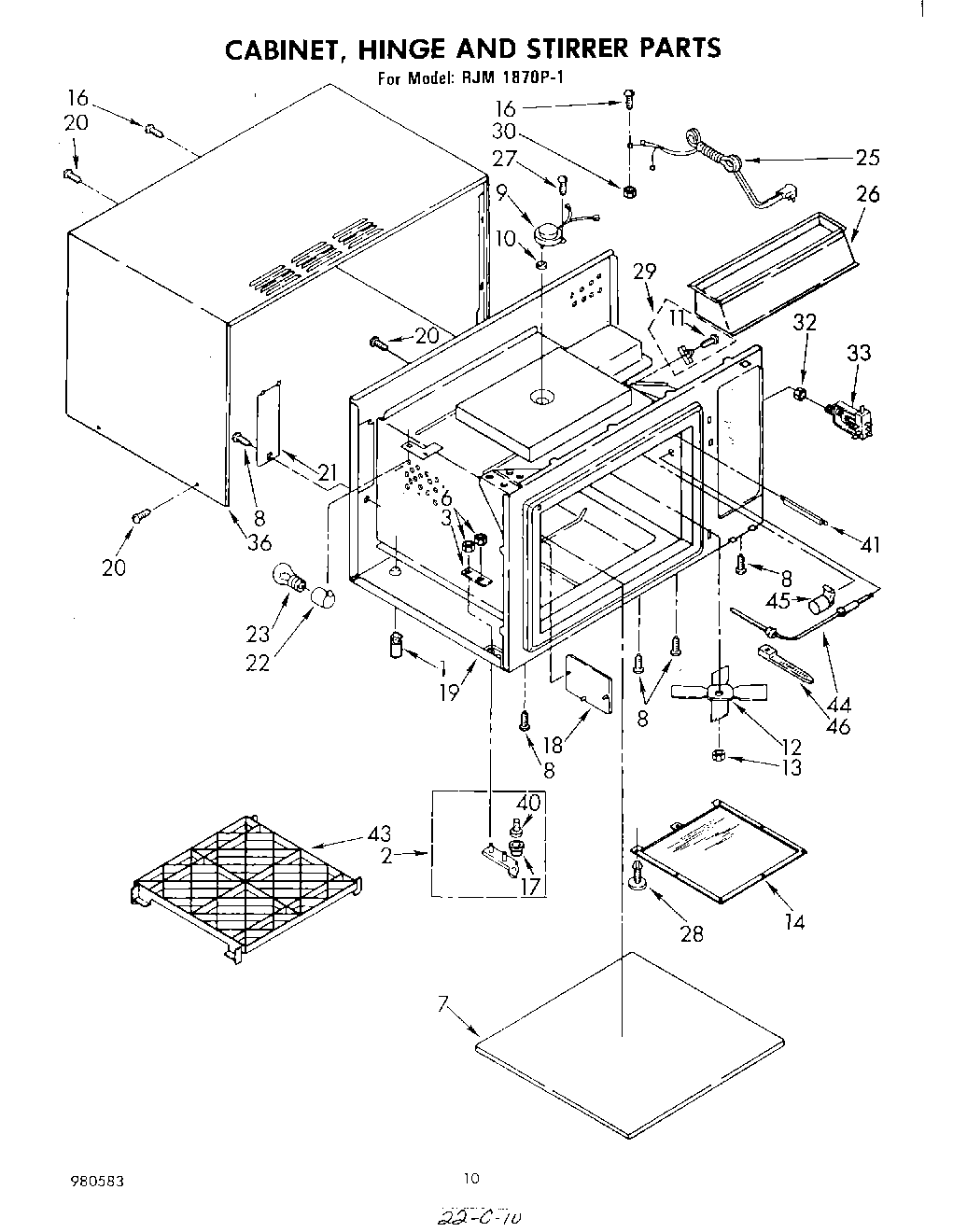

RJM1870P1 07 – UNIT , NOT ILLUSTRATED AND OPTIONAL

Products

PositionProduct
1Foot, Mounting
2WPL 328127
2Hinge, Door (Top)
3Plate, Hinge
6WP487939 Whirlpool Refrigerator Nut
7Shelf, Microwave (Alt.)
7Base, Ceramic (Install W/Silastic No. 482338)
8panel, top (screw, 10a x 3/8 (3))
9motor, stirrer (alternate)
9Washer, Internal Lock
9Motor, Stirrer (Alternate)
10Nut
11Screw
12Stirrer Blade
13Nut, Hex (1/4-20)
14Cover, Stirrer
16Main Chassis (Screw, 10-32 x 1/2)
17Bushing
18Shield, Exhaust Probe
19Base & Cavity Assembly (Not Serviceable)
20Screw, 10A x 1/2 (2) (Black)
21Cover, Lamp
22Socket, Snap-In
23RANGE ONLY 40W 120V APPL BULB
25Cord, Power (Alternate)
26Baffle, Air Exhaust
27WP486754 Whirlpool Compactor Screw
28Fastener (2)
29Fuse, Thermal
30Hex Nut, 10-32 (2)
32Nut, Probe Flange
33Jack, Probe
36Wrapper, Cabinet
40Pin, Hinge
41Cover, Rivet
43Rack, Meat (Micro)
44Meat Probe
45Support, Shelf (4)
46Almond (Uncut)
46WP482338 Whirlpool Refrigerator Adhesive
46Wire, 25“ Roll (White 14 GA.)
46Wire, 25` Roll (Red 14 Ga.)
46Wire, 25` Roll (Black 14 Ga.)
46FOIL, ALUMINUM OVEN (18“ X 25 )
46WPL 310930
46WPW10208653 Whirlpool Insulation
46WPW10339879 Whirlpool Wire Tie
46WP72107 Whirlpool Touchup
46WPL 261819
46WPL 311307
46WPL 868547
46WPL 868924
46WPL 980583
46242831 Whirlpool Oven Wire
46Wire (14 Ga. 150 c Blue)
46Wire (14 Ga. 150 c Brown)
46Touch-Up, Oven
46Spacer-Oven Door Glass (Lt. or Rt.)
46WPL 799351
46WPL 591014
46WPL 834469
46WPL 834470
461
46Wire (14 Ga. 200 c Brown)
46WPL 308500
46WPL 307843
46WPL 310848
4618 Ga. 80~c Rating (Red)
46Wire (12 Ga. 150 c Black)
46Wire (14 Ga. 150 c Yellow)
46Wire (14 Ga. 150 c Orange)
46Wire (14 Ga. 150 c Green)
46350956 Whirlpool Spray Assembly
