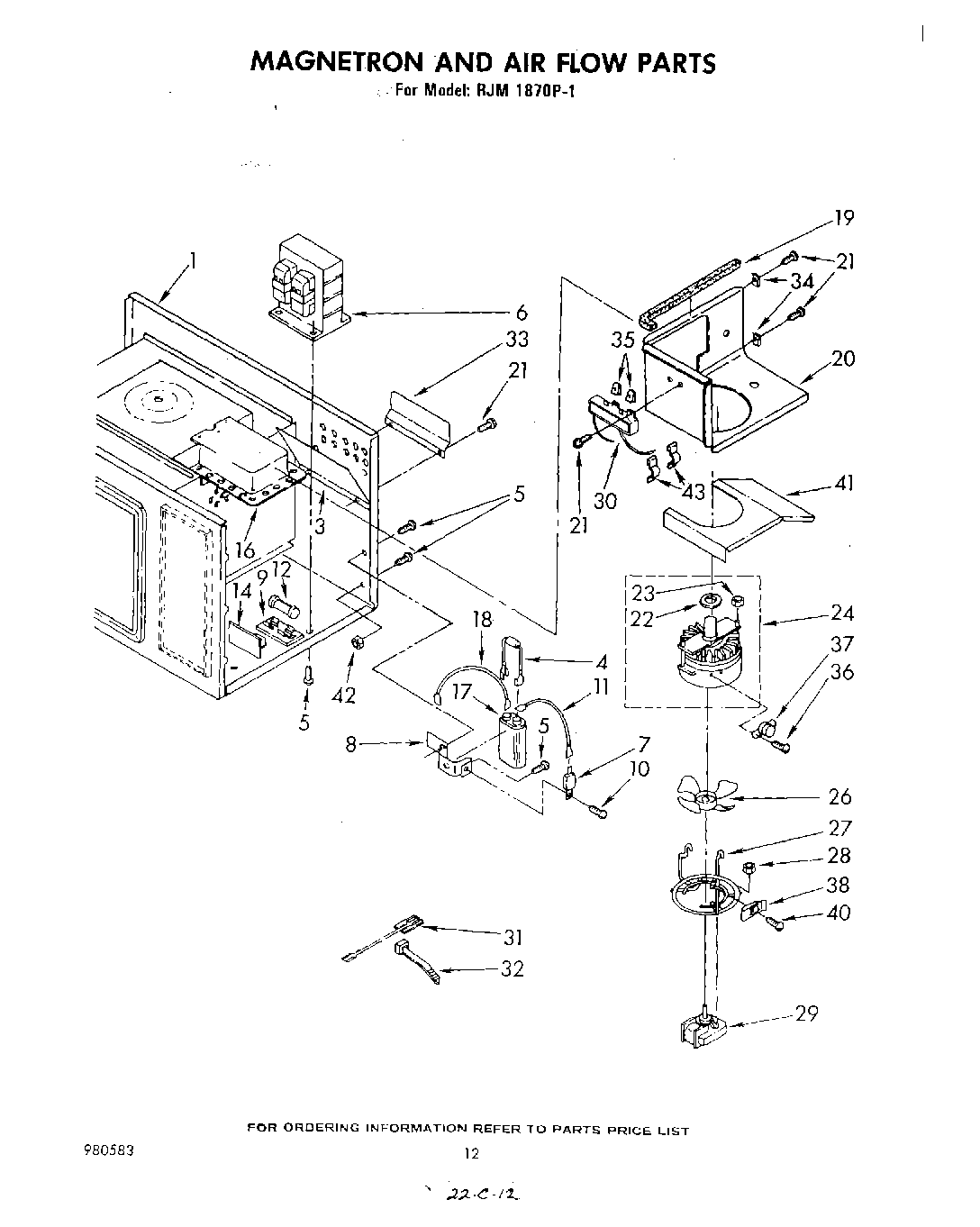

RJM1870P1 08 – SECTION

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
3	Deflector, Air
4	resistor (2 watt 10m ohm)
5	Main Chassis (Screw, 10-32 x 1/2)
6	Transformer
7	Rectifier, High Voltage (Alternate)
7	Rectifier, High Voltage (Alternate)
8	Bracket, Capacitor
9	Block, Fuse
10	WPL 310629
11	WPL 311466
12	WPW10017410 Whirlpool Fuse
14	Shield, Fuse
16	Guide, Wave (Riveted At Assembly, Not Serviceable)
17	Capacitor (Alternate)
17	Capacitor (Alternate)
18	WPL 311467
19	WP854334 Whirlpool Air Conditioner Sealing Strip
20	Duct, Cooling Air
21	WP965173 Whirlpool Dishwasher Screw
22	Gasket, Magnetron (Use W/Panasonic Magnetron)
23	Flange Nut (4)
24	Magnetron
26	Blade, Fan
27	mount, fan motor
27	Mount, Fan Motor
28	Nut
29	Motor, Fan (Alternate)
29	Motor Fan (Alternate)
30	Reed Relay (Alternate)
30	Relay, Reed
31	Wire, High Voltage (Capacitor)
32	WPW10339879 Whirlpool Wire Tie
33	Deflector, Exhaust
34	Clip (2)
35	Clip (4)
36	Screw
37	Thermostat
38	fastener, speed nut
40	WPL 246134
41	Spacer (2 Req)
42	Hex Nut, 10-32 (2)
43	8528351 Whirlpool Clip
