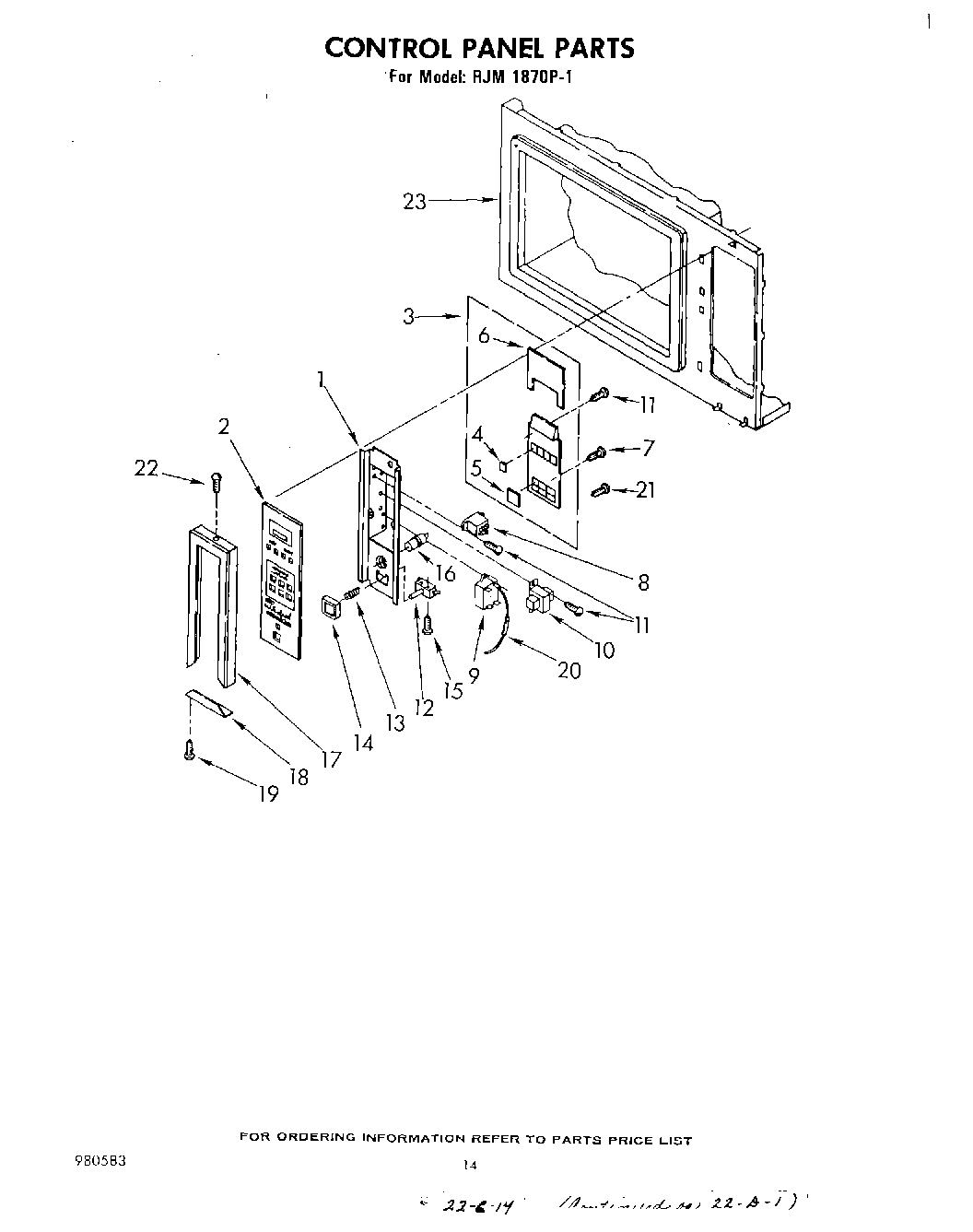

RJM1870P1 09 – SECTION

RJM1870P1 09 – SECTION

Written by

in

RJM1870P1 09 – SECTION

Products

PositionProduct
1Bracket, Control
2Panel, Control
3Microcomputer
4Button, Small
5Button, Large
6Barrier
7Screw, 6-18 x 3/8 (6)
8relay power (12 v.d.c.) (alternate)
8relay power (12 v.d.c.) (alternate)
9Relay, Latching
9Relay, Latching
10Transformer, Control
11WP486754 Whirlpool Compactor Screw
12Switch, Start
13Spring, Compression
14Button, Push To Start
15Screw
16Light, Indicator (On)
17Frame, Control Panel
18End Cap, Control Panel
19Screw, 8-18BT x .88 (2)
20Resistor, 30HM
21Screw, 80 x 5/16
22WP488627 Whirlpool Refrigerator Screw
