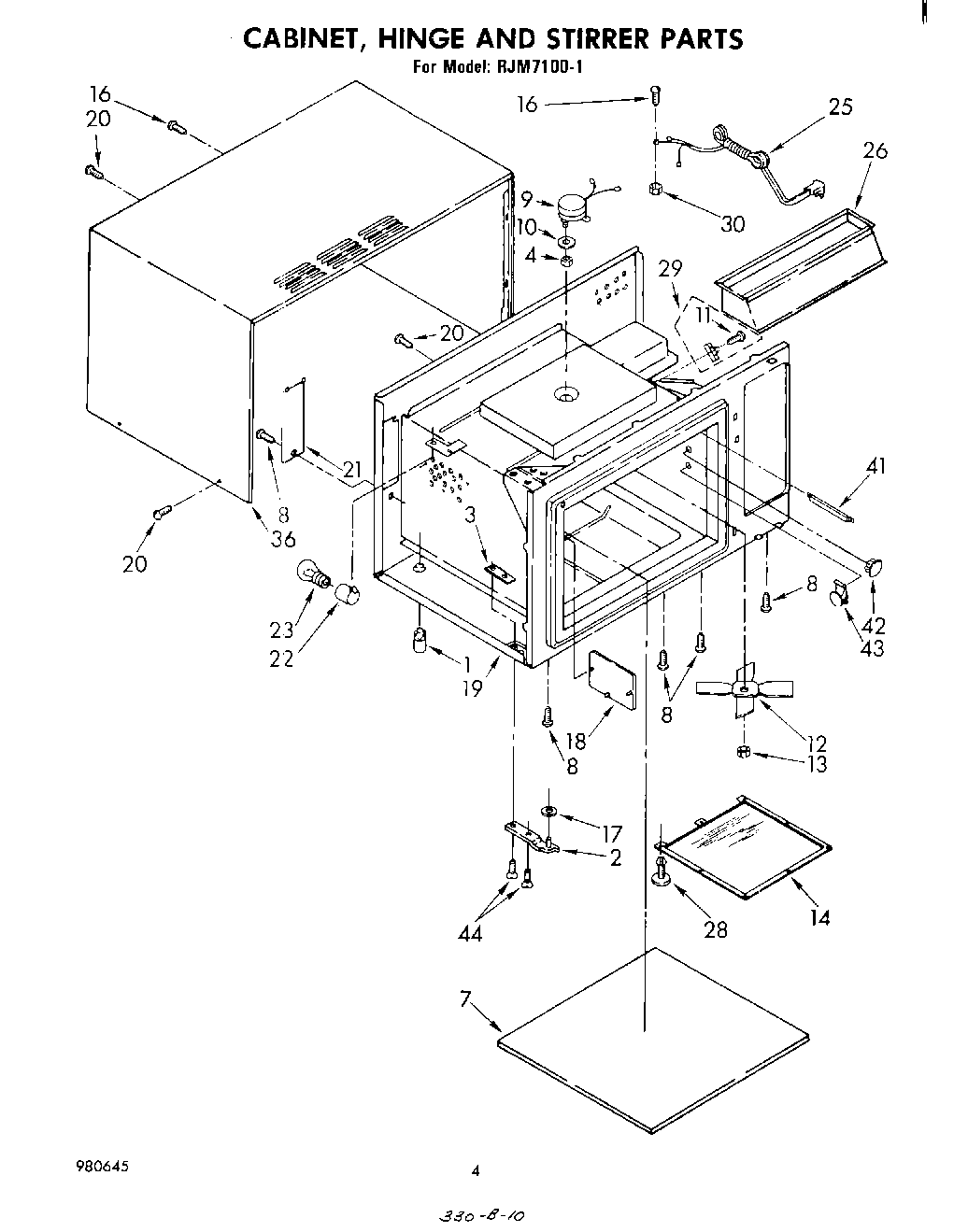

RJM71001 03 – CABINET, HINGE, AND STIRRER , LITERATURE

Products

Position	Product
1	Foot, Mounting
2	hinge door (bottom)
2	hinge door (top)
3	Plate, Hinge (2) (Top & Bottom)
4	Nut
7	Shelf, Microwave (Alt.)
7	Base, Ceramic (Install W/Silastic No. 482338)
8	panel, top (screw, 10a x 3/8 (3))
9	motor, stirrer (alternate)
9	Motor, Stirrer (Alternate)
10	Washer, Internal Lock
11	Screw
12	Stirrer Blade
13	Nut, Hex (1/4-20)
14	Cover, Stirrer
16	Main Chassis (Screw, 10-32 x 1/2)
17	Washer
18	Shield, Exhaust Probe
19	Base & Cavity Assembly (Not Serviceable)
20	Screw, 10A x 1/2 (2) (Black)
21	Cover, Lamp
22	Socket, Snap-In
23	RANGE ONLY 40W 120V APPL BULB
25	Cord, Power (Alternate)
25	cord, power (alternate)
26	Baffle, Air Exhaust
28	Fastener (2)
29	Fuse, Thermal
30	Hex Nut, 10-32 (2)
36	Wrapper, Cabinet
41	Cover, Rivet
42	Plug, Button
43	Plug, Hole (4)
44	Wire (14 Ga. 150 c Brown)
44	Wire (14 Ga. 150 c Blue)
44	242831 Whirlpool Oven Wire
44	screw, oval head (4)
44	WP482338 Whirlpool Refrigerator Adhesive
44	Wire, 25“ Roll (White 14 GA.)
44	WP261869 Whirlpool Microwave Paint
44	WPL 309887
44	WPL 310035
44	WPL 311250
44	WPL 980645
44	Wire, 25` Roll (Red 14 Ga.)
44	Wire (14 Ga. 150 c Green)
44	Wire (14 Ga. 150 c Orange)
44	Browning Tray (Micro)
44	WPL 832763
44	261900 Whirlpool Microwave Spray
44	WPL 591014
44	WPL 307843
44	WPL 261940
44	1
44	Wire (14 Ga. 200 c Brown)
44	WPL 832765
44	Rack, Meat (Micro)
44	WPL 832769
44	18 Ga. 80~c Rating (Red)
44	WPL 832790
44	Wire (12 Ga. 150 c Black)
44	Wire (14 Ga. 150 c Yellow)
44	Wire, 25` Roll (Black 14 Ga.)
