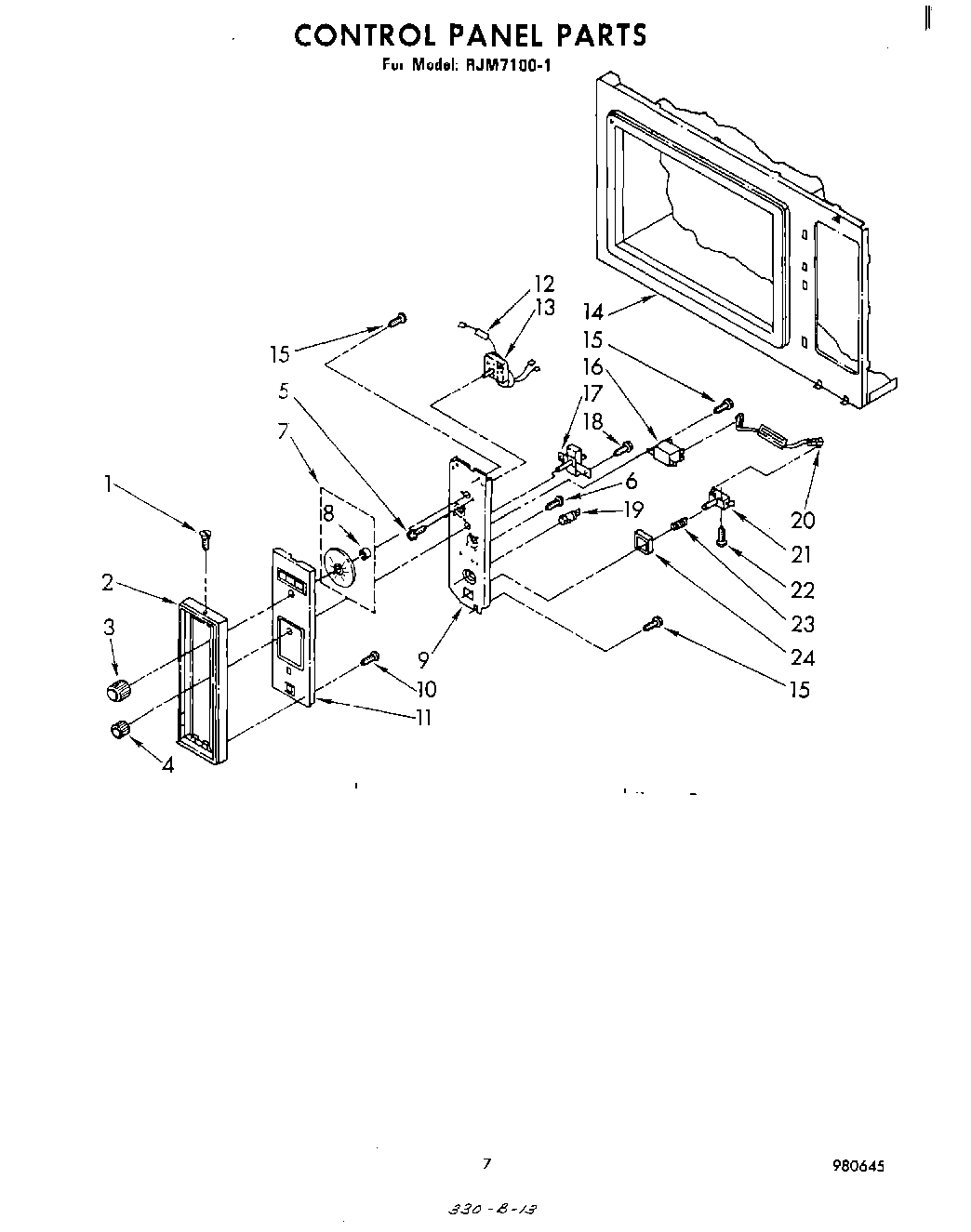

RJM71001 05 – CONTROL PANEL

Products

Position	Product
1	WP488627 Whirlpool Refrigerator Screw
2	Frame, Control Panel
3	Knob, Meal Timer
4	Knob, Cook Defrost
5	Screw,
7	Dial & Ring, Timer
8	Ring, Compression
9	Bracket, Support
10	WP681249 Whirlpool Screw Assembly
11	Panel, Control
12	Resistor & Terminal (Timer To Rotary Switch)
13	Timer, Minute
14	Cabinet (Not A Serviceable Part)
15	Screw
16	Relay, Latching
16	Relay, Latching
17	Switch, Cook Defrost
18	Screw, 10-32 x 1/2
19	Light, Indicator (On)
20	resistor, power (3 ohm)
21	Switch, Push-To-Start
22	Screw
23	Spring, Compression
24	Button, Push To Start
