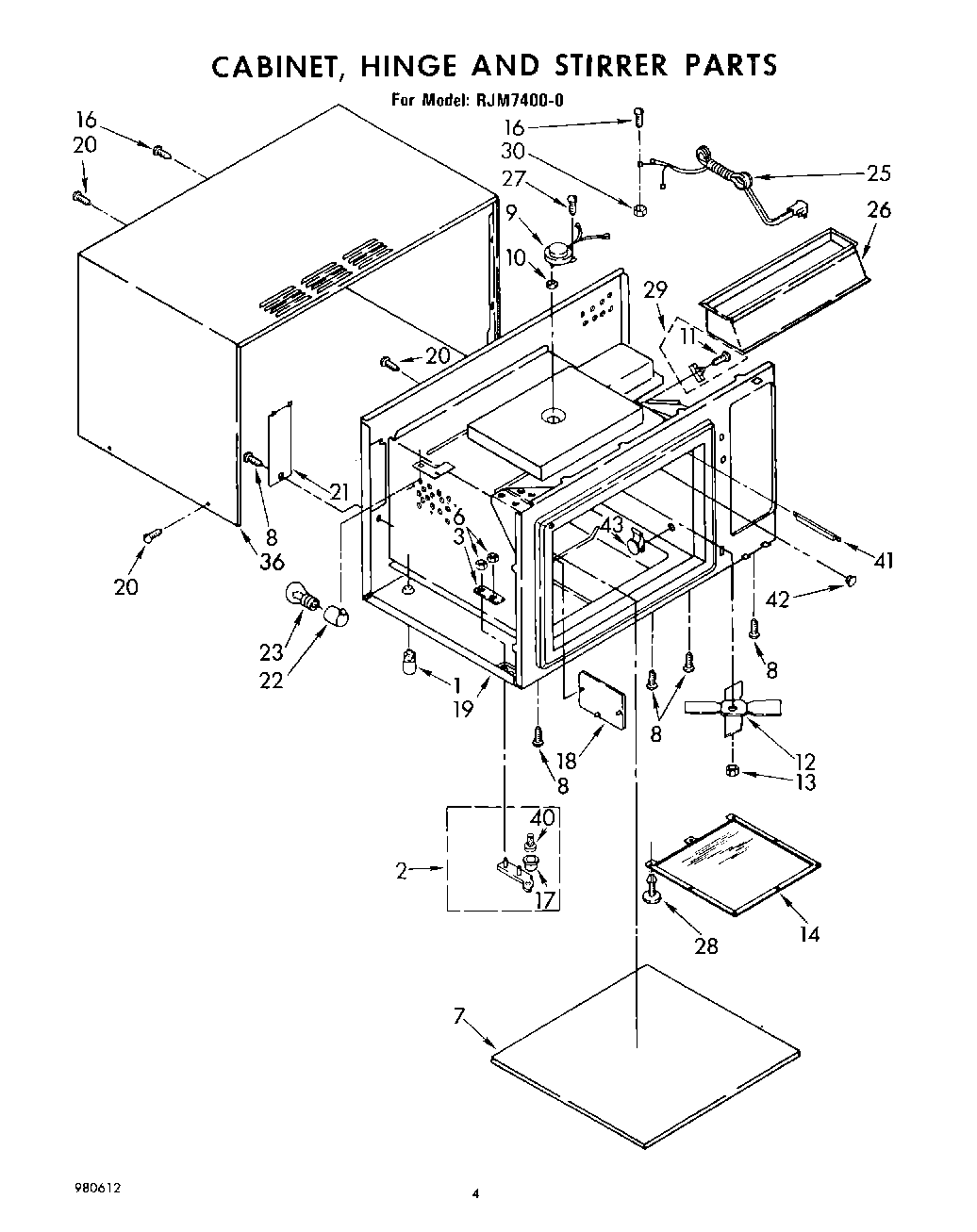

RJM74000 03 – CABINET, HINGE AND STIRRER, LIT/OPTIONAL

Products

Position	Product
1	Foot, Mounting
2	WPL 328127
2	Hinge, Door (Top)
3	Plate, Hinge
6	WP487939 Whirlpool Refrigerator Nut
7	Base, Ceramic (Install W/Silastic No. 482338)
8	panel, top (screw, 10a x 3/8 (3))
9	Motor, Stirrer
10	Gasket, Stirrer Motor
11	Screw
12	Stirrer Blade
13	Nut, Hex (1/4-20)
14	Cover, Stirrer
16	Main Chassis (Screw, 10-32 x 1/2)
17	Bushing
18	Shield, Exhaust Probe
19	Base & Cavity Assembly (Not Serviceable)
20	Screw, 10A x 1/2 (2) (Black)
21	Cover, Lamp
22	Socket, Snap-In
23	RANGE ONLY 40W 120V APPL BULB
25	Cord, Power (Alternate)
26	Baffle, Air Exhaust
27	WP486754 Whirlpool Compactor Screw
28	Fastener (2)
29	Fuse, Thermal
30	Hex Nut, 10-32 (2)
36	Wrapper, Cabinet
40	Pin, Hinge
41	Cover, Rivet
42	Plug, Button
43	rack, oven
43	WPL 832765
43	WPL 832769
43	WPL 310930
43	WPL 832790
43	Plug, Hole (4)
43	WPL 980612
43	WPL 310777
43	WPL 832810
43	WPL 311251
43	WPL 832763
43	Wire (12 Ga. 150 c Black)
43	Wire (14 Ga. 150 c Yellow)
43	Wire (14 Ga. 150 c Orange)
43	Wire (14 Ga. 150 c Green)
43	Wire (14 Ga. 150 c Brown)
43	Wire (14 Ga. 150 c Blue)
43	WP261869 Whirlpool Microwave Paint
43	WP482338 Whirlpool Refrigerator Adhesive
43	Wire, 25“ Roll (White 14 GA.)
43	Wire, 25` Roll (Red 14 Ga.)
43	18 Ga. 80~c Rating (Red)
43	Wire (14 Ga. 200 c Brown)
43	WPL 310847
43	WPL 261940
43	WPL 307843
43	242831 Whirlpool Oven Wire
43	Browning Tray (Micro)
43	Rack, Meat (Micro)
43	Spacer-Oven Door Glass (Lt. or Rt.)
43	261900 Whirlpool Microwave Spray
43	WPL 591014
43	1
43	Wire, 25` Roll (Black 14 Ga.)
