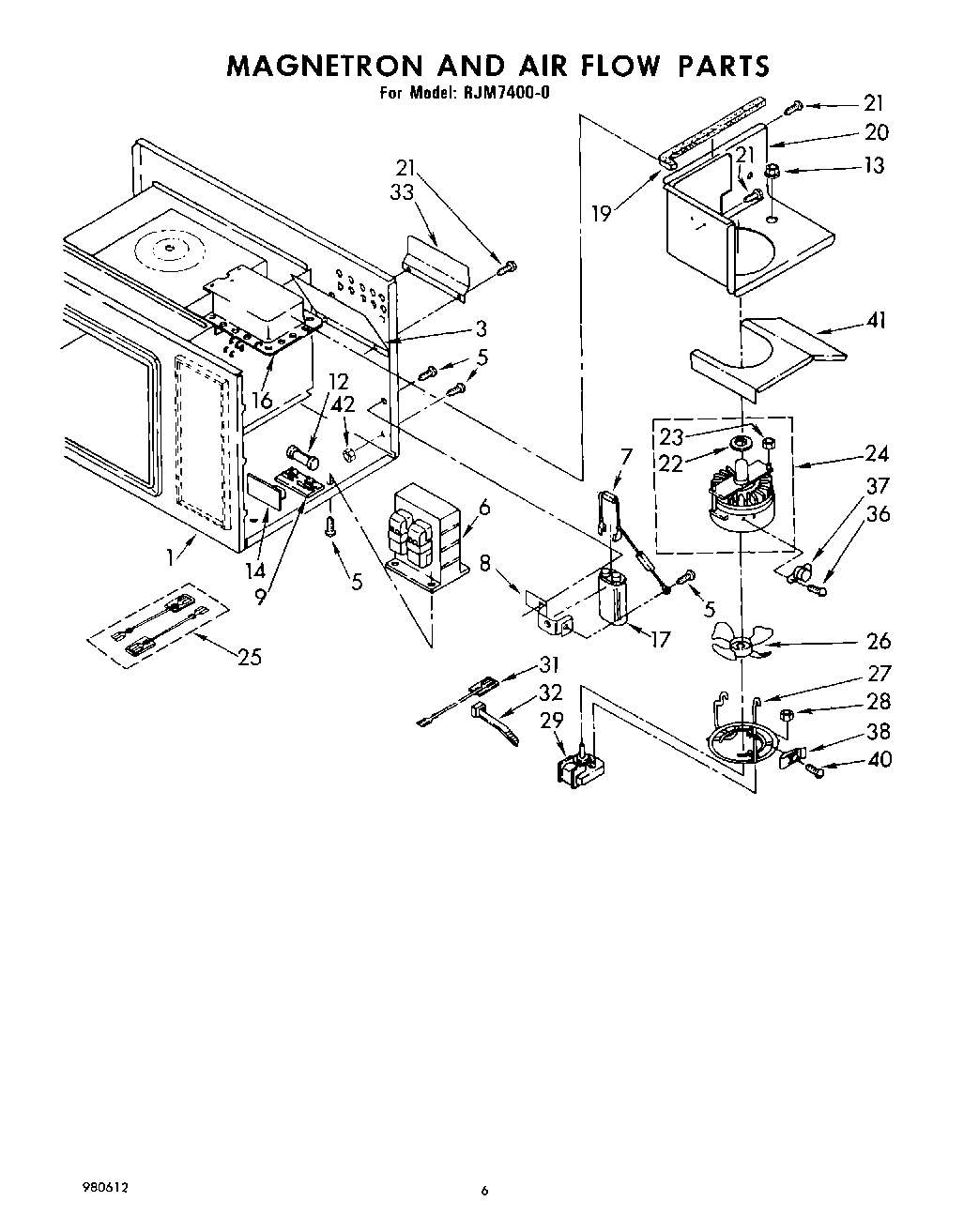

RJM74000 04 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
3	Deflector, Air
5	Main Chassis (Screw, 10-32 x 1/2)
6	Transformer
7	Rectifier, High Voltage (Includes Illus. 15)
8	Bracket, Capacitor
9	Block, Fuse
12	WPW10017410 Whirlpool Fuse
13	Bushing, Wire
14	Shield, Fuse
16	Guide, Wave (Riveted At Assembly, Not Serviceable)
17	Capacitor (Alternate)
17	Cover-Lock
19	WP854334 Whirlpool Air Conditioner Sealing Strip
20	Duct, Cooling Air
21	WP965173 Whirlpool Dishwasher Screw
22	Gasket, Magnetron
23	Flange Nut (4)
24	Magnetron
25	Wire Kit, High Voltage (Magnetron)
26	Blade, Fan
27	Mount, Fan Motor
28	Nut
29	Motor Fan (Alternate)
29	Motor, Fan (Alternate)
31	Wire, High Voltage (Capacitor)
32	WPW10339879 Whirlpool Wire Tie
33	Deflector, Exhaust
36	Screw
37	Thermostat
38	fastener, speed nut
40	WPL 246134
41	Spacer (2 Req)
42	Hex Nut, 10-32 (2)
