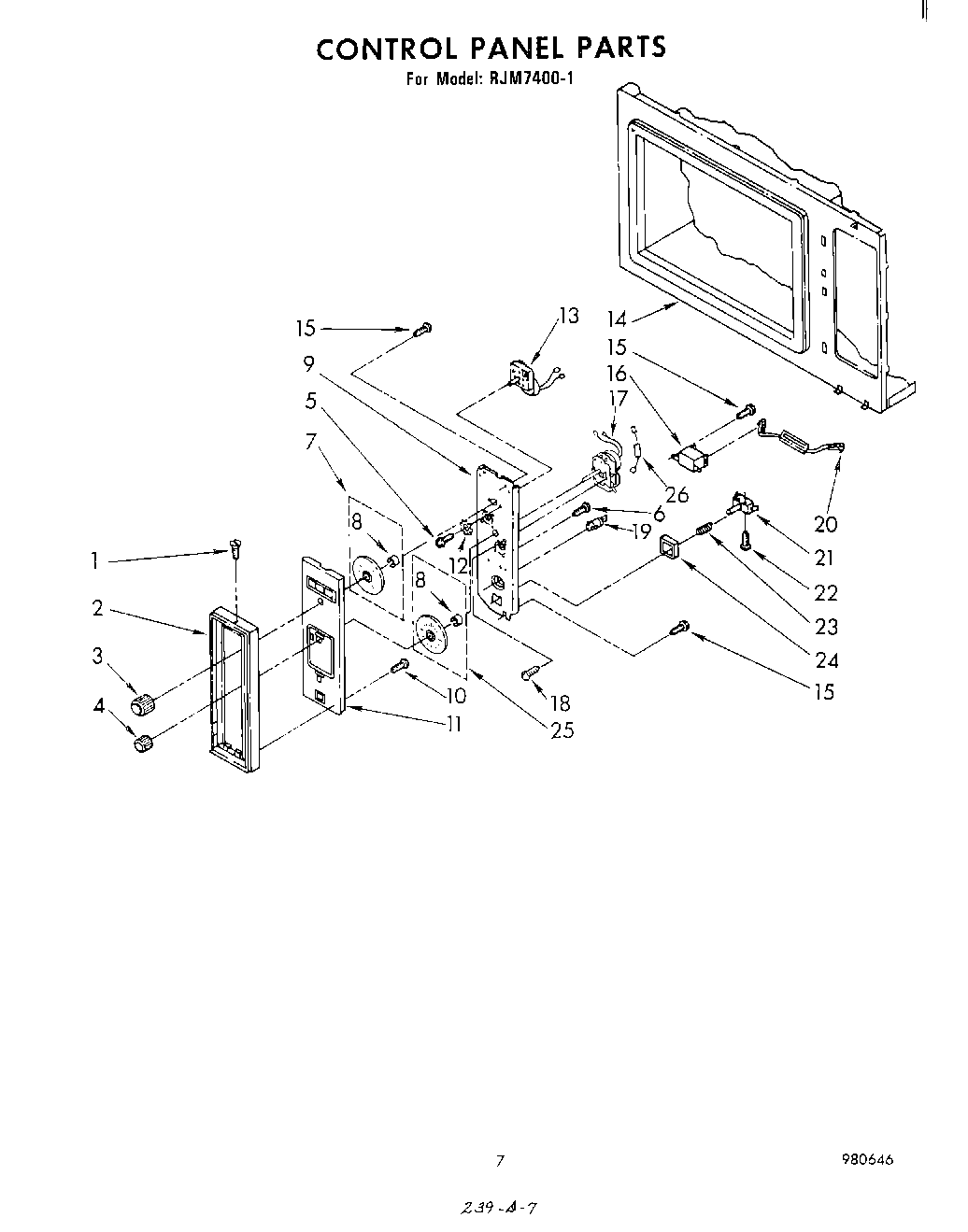

RJM74001 05 – CONTROL PANEL

Products

Position	Product
1	WP488627 Whirlpool Refrigerator Screw
2	Frame, Control Panel
3	Knob, Meal Timer
4	Knob Assembly (2)
5	screw, 6-32 x 1/4 (2)
6	Screw, 10-32 x 1/2
7	Dial, Meal Timer
8	Ring, Compression
9	Bracket, Support
11	Panel, Control
12	Lockwasher
13	Timer, Meal Timer
14	Cabinet (Not A Serviceable Part)
15	Screw
16	Relay, Latching
16	Relay, Latching
17	Timer, Percentage
18	WP681249 Whirlpool Screw Assembly
19	Light, Indicator (On)
20	resistor, power (3 ohm)
21	Switch, Push-To-Start
22	Screw
23	Spring, Compression
24	Button, Push To Start
25	Dial, Percentage Timer
26	Resistor (10 Ohm)
