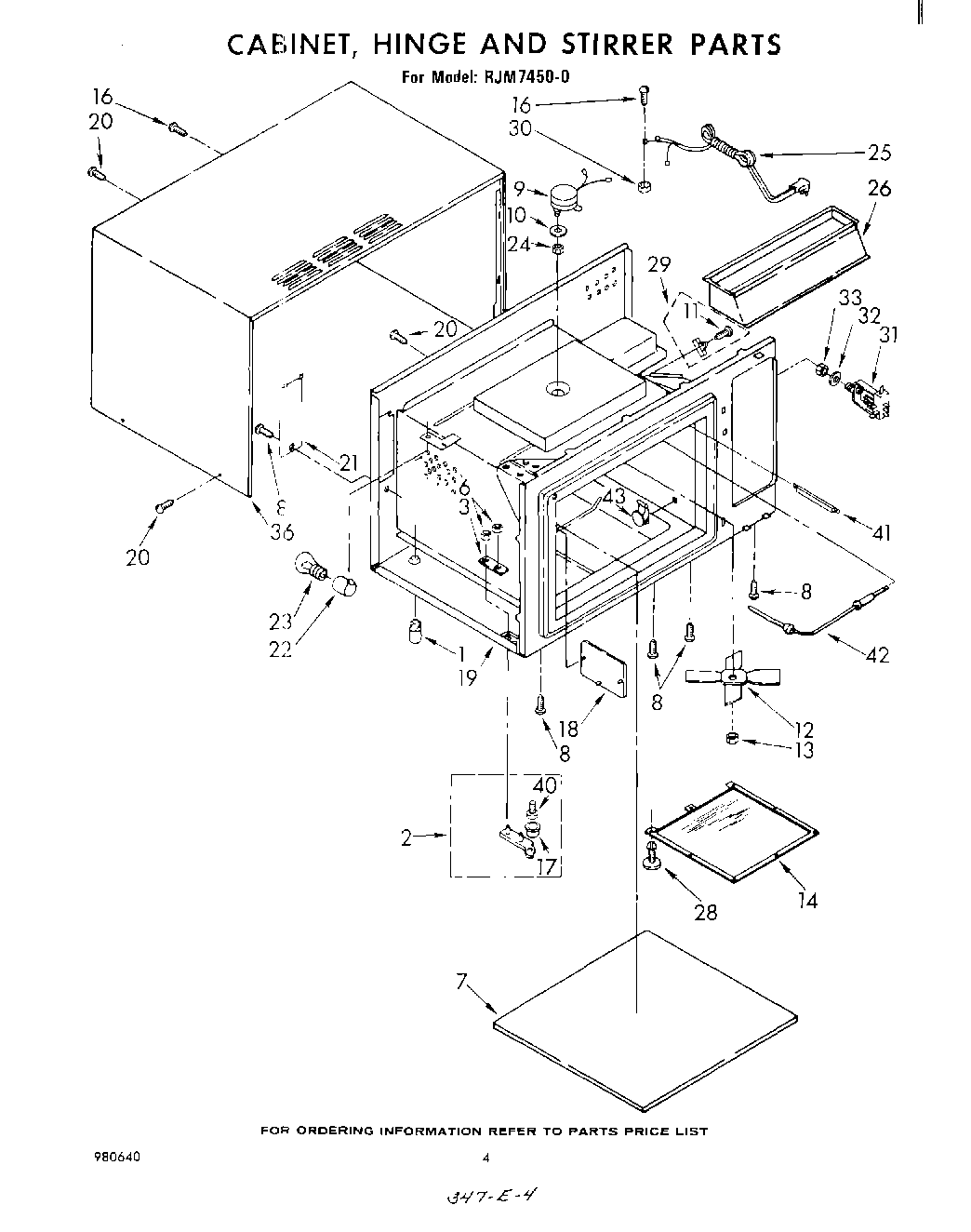

RJM74500 03 – CABINET, HINGE AND STIRRER, LITERATURE

Products

Position	Product
1	Foot, Mounting
2	Hinge, Door (Top)
2	WPL 328127
3	Plate, Hinge
6	WP487939 Whirlpool Refrigerator Nut
7	Base, Ceramic (Install W/Silastic No. 482338)
7	Shelf, Microwave (Alt.)
8	panel, top (screw, 10a x 3/8 (3))
9	Motor, Stirrer (Alternate)
10	Washer, Internal Lock
11	Screw
12	Stirrer Blade
13	Nut, Hex (1/4-20)
14	Cover, Stirrer
16	Main Chassis (Screw, 10-32 x 1/2)
17	Bushing
18	Shield, Exhaust Probe
19	Base & Cavity Assembly (Not Serviceable)
20	Screw, 10A x 1/2 (2) (Black)
21	Cover, Lamp
22	Socket, Snap-In
23	RANGE ONLY 40W 120V APPL BULB
24	Nut
25	Cord, Power (Alternate)
26	Baffle, Air Exhaust
28	Fastener (2)
29	Fuse, Thermal
30	Hex Nut, 10-32 (2)
31	Jack, Probe
32	Washer
33	Nut, Probe Flange
36	Wrapper, Cabinet
40	Pin, Hinge
41	Cover, Rivet
42	Temperature Probe & Plug
43	WPL 980640
43	WPL 832810
43	WPL 311199
43	WPL 311252
43	WPL 832790
43	Plug, Hole (4)
43	WPL 832765
43	WPL 832769
43	rack, oven
43	WPL 310930
43	WPL 310847
43	Wire (12 Ga. 150 c Black)
43	Wire (14 Ga. 150 c Yellow)
43	Wire (14 Ga. 150 c Orange)
43	Wire (14 Ga. 150 c Green)
43	Wire (14 Ga. 150 c Brown)
43	Wire (14 Ga. 150 c Blue)
43	242831 Whirlpool Oven Wire
43	WP482338 Whirlpool Refrigerator Adhesive
43	Wire, 25“ Roll (White 14 GA.)
43	Wire, 25` Roll (Red 14 Ga.)
43	18 Ga. 80~c Rating (Red)
43	Wire (14 Ga. 200 c Brown)
43	WPL 261940
43	WPL 307843
43	WP261869 Whirlpool Microwave Paint
43	Browning Tray (Micro)
43	Rack, Meat (Micro)
43	Spacer-Oven Door Glass (Lt. or Rt.)
43	WPL 832763
43	261900 Whirlpool Microwave Spray
43	WPL 591014
43	1
43	Wire, 25` Roll (Black 14 Ga.)
