RJM74501 04 – MAGNETRON AND AIR FLOW

RJM74501 04 – MAGNETRON AND AIR FLOW

Written by

in

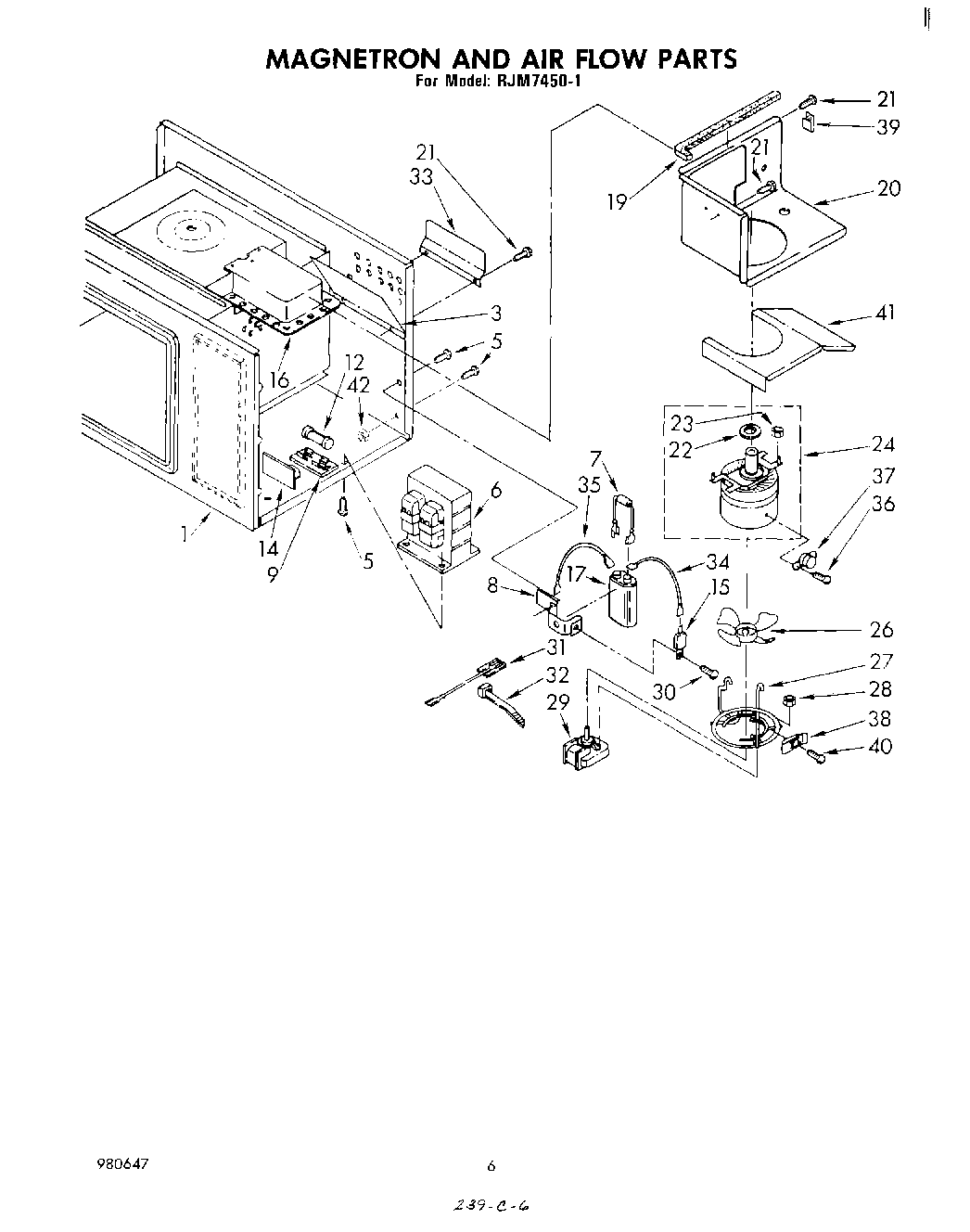

RJM74501 04 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
3Deflector, Air
5Main Chassis (Screw, 10-32 x 1/2)
6Transformer
7resistor (2 watt 10m ohm)
8Bracket, Capacitor
9Block, Fuse
12WPW10017410 Whirlpool Fuse
14Shield, Fuse
15Rectifier, High Voltage (Alternate)
15Rectifier, High Voltage (Alternate)
16Guide, Wave (Riveted At Assembly, Not Serviceable)
17Capacitor (Alternate)
17Capacitor (Alternate)
19WP854334 Whirlpool Air Conditioner Sealing Strip
20Duct, Cooling Air
21WP965173 Whirlpool Dishwasher Screw
22gasket, magnetron
23Flange Nut (4)
24magnetron (alternate)
26Blade, Fan
27mount, fan motor
28Nut
29Transmotor
30WPL 310629
31Wire, High Voltage (Capacitor)
32WPW10339879 Whirlpool Wire Tie
33Deflector, Exhaust
34WPL 311466
35WPL 311467
36Screw
37Thermostat
38fastener, speed nut
39Clip (2)
40SCREW
41Spacer (2 Req)
42Hex Nut, 10-32 (2)
