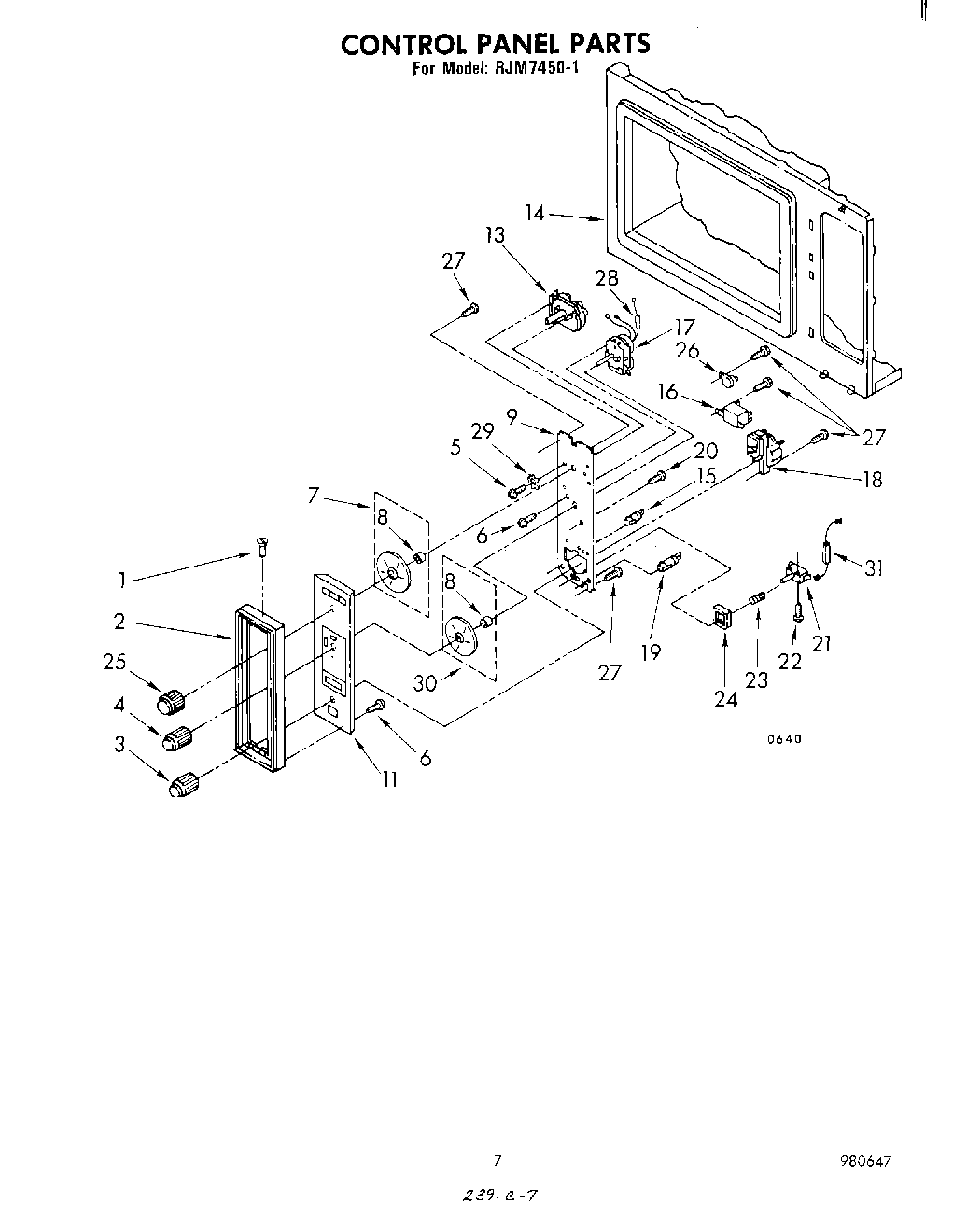

RJM74501 05 – CONTROL PANEL

Products

Position	Product
1	WP488627 Whirlpool Refrigerator Screw
2	Frame, Control Panel
4	Knob Assembly (2)
5	screw, 6-32 x 1/4 (2)
6	WP681249 Whirlpool Screw Assembly
7	Dial, Meal Timer
8	Ring, Compression
9	Bracket, Support
11	Panel, Control
13	Timer, Meal Timer
14	Cabinet (Not A Serviceable Part)
16	WPL 308243
16	Relay, Latching (Alternate)
17	Timer, Percentage
18	Switch, Temperature Control
19	Light, Indicator (On)
20	Screw, 10-32 x 1/2
21	Switch, Push-To-Start
22	Screw
23	Spring, Compression
24	Button, Push To Start
25	Knob, Meal Timer
26	WPL 310351
27	Screw
28	Resistor (10 Ohm)
29	Lockwasher
30	Dial, Percentage Timer
31	resistor, power (3 ohm)
