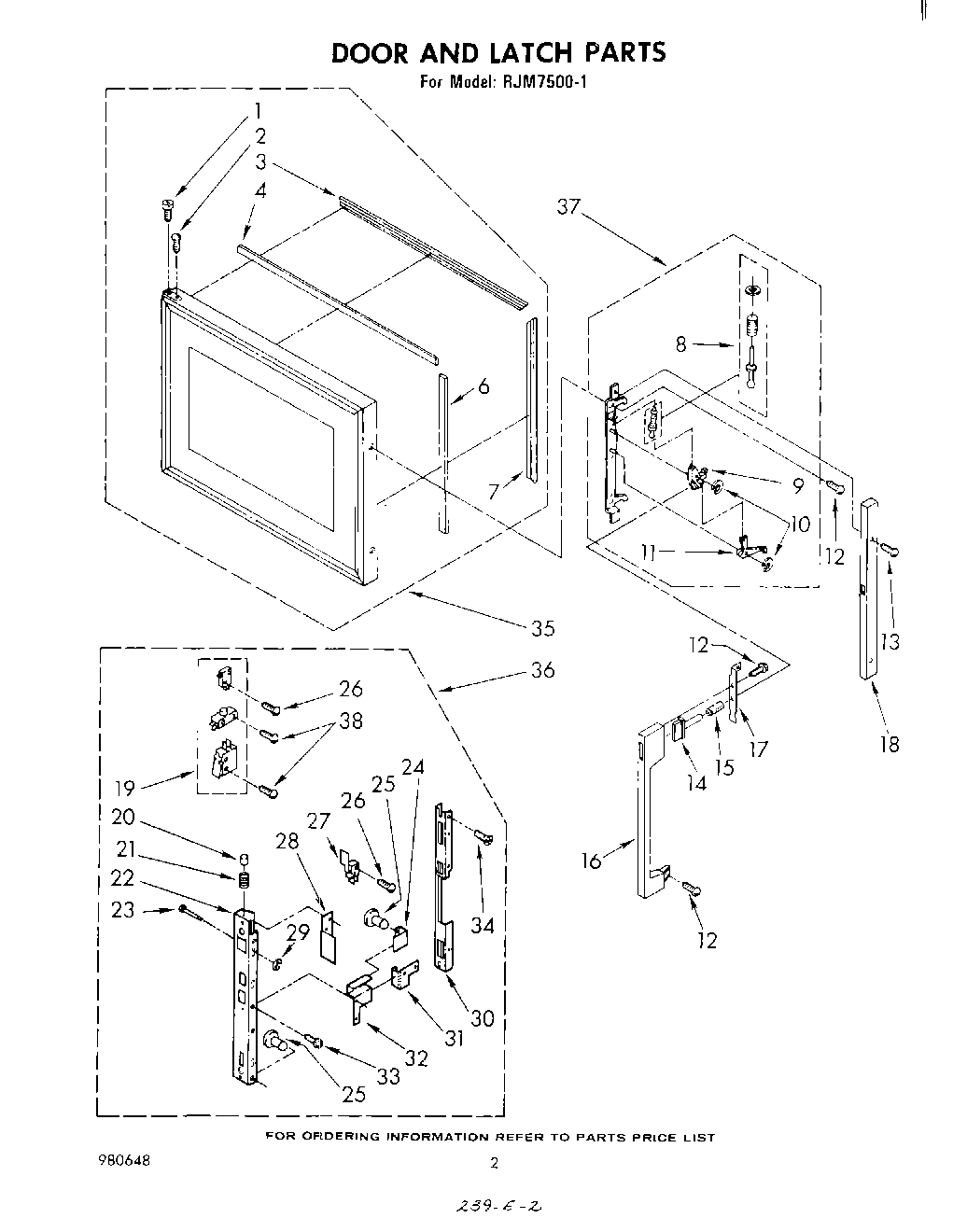

RJM75001 02 – DOOR AND LATCH

Products

Position	Product
1	WPW10068250 Whirlpool Dishwasher Screw
3	Retainer, Top & Bottom Seals (2)
4	Seal, Top & Bottom (2) (Alternate)
4	Seal, Top & Bottom (2) (Alternate)
6	Seal, Sides (Alternate)
6	Seal, Sides (Alternate)
7	Retain, Side Seal (2)
8	plunger, latch
9	Cam
10	WPL 310386
11	WPL 310120
12	WP489128 Whirlpool Refrigerator Screw
13	Screw, 8-32 x 5/16 (2)
14	Button, Door Handle
15	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
16	Handle, Door
17	Bracket, Door Handle
18	End Cap, Door
19	Switch Kit, Door (Kit Contains Primary, Monitor & Secondary Switches. All Three (3) Switches Must Be
20	WPL 310124
21	Rear Top Burner-Rt. or Lt. (Inc`s. 32 & 33)
22	Guide, Interlock (Not a Serviceable Part)
23	Pin, Roller (2)
24	Foam Strip 14`` x 3/8`` x 1/2``xxx
25	WPL 310951
26	Screw, 4-40 x 10 (2)
27	Switch, Light
28	WPL 310154
29	Ring, Retaining (2)
30	Slide, Interlock (Not a Serviceable Part)
31	Insulator, Switch (Top)
32	Bracket, Primary Switch
33	WPL 310629
34	WPL 309080
35	Door, Complete
36	Latch Assm. (Inc`s. Key 7)
37	Latch, Door
38	Screw
