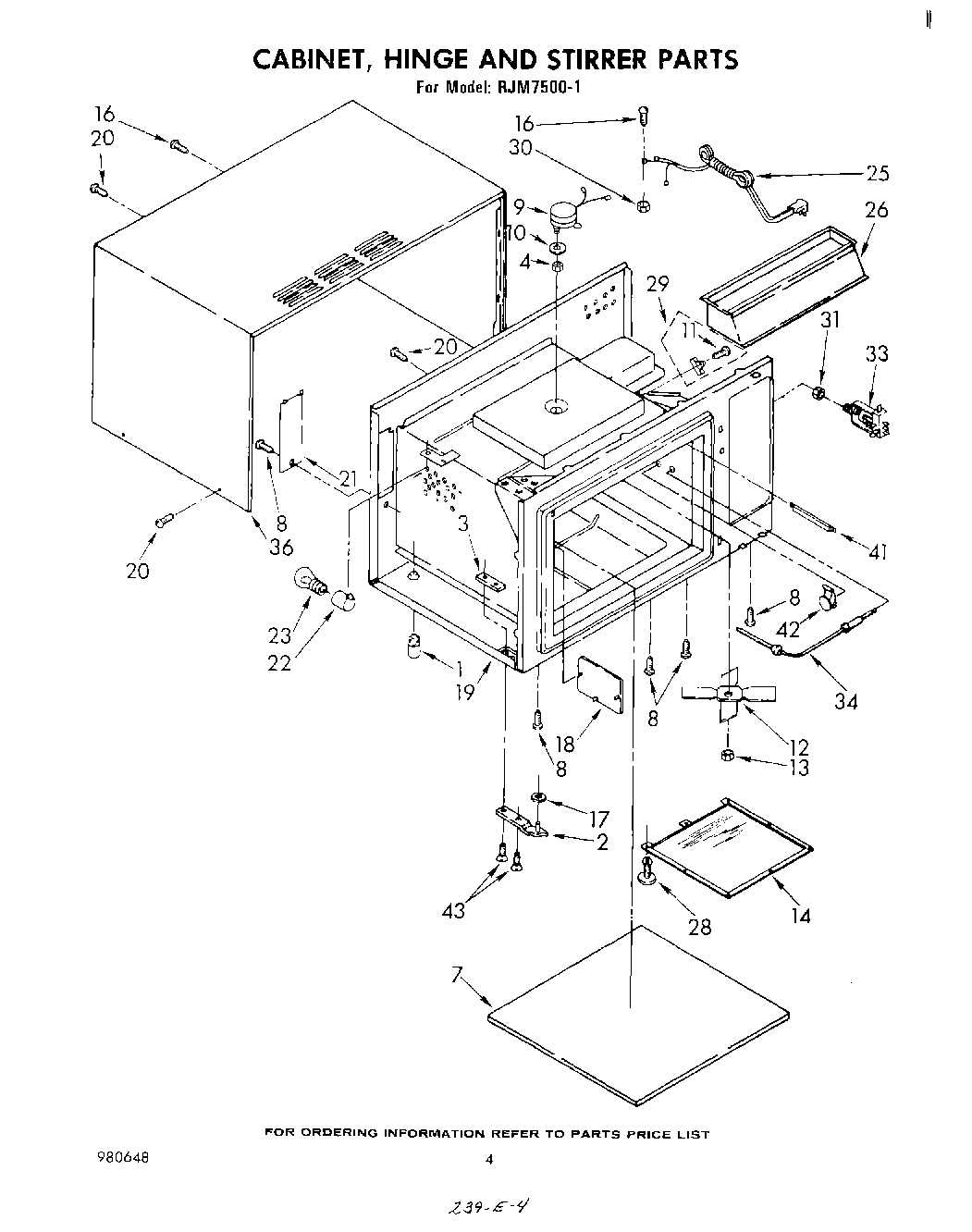

RJM75001 03 – CABINET, HINGE AND STIRRER , LITERATURE

Products

Position	Product
1	Foot, Mounting
2	hinge door (top)
2	hinge door (bottom)
3	Plate, Hinge (2) (Top & Bottom)
4	Nut
7	Base, Ceramic (Install W/Silastic No. 482338)
7	Shelf, Microwave (Alt.)
8	panel, top (screw, 10a x 3/8 (3))
9	motor, stirrer (alternate)
9	Motor, Stirrer (Alternate)
10	Washer, Internal Lock
11	Screw
12	Stirrer Blade
13	Nut, Hex (1/4-20)
14	Cover, Stirrer
16	Main Chassis (Screw, 10-32 x 1/2)
17	Washer
18	Shield, Exhaust Probe
19	Base & Cavity Assembly (Not Serviceable)
20	Screw, 10A x 1/2 (2) (Black)
21	Cover, Lamp
22	Socket, Snap-In
23	RANGE ONLY 40W 120V APPL BULB
25	cord, power (alternate)
25	Cord, Power (Alternate)
26	Baffle, Air Exhaust
28	Fastener (2)
29	Fuse, Thermal
30	Hex Nut, 10-32 (2)
31	Nut, Probe Flange
33	Jack, Probe
34	Temperature Probe & Plug
36	Wrapper, Cabinet
41	Cover, Rivet
42	Plug, Hole (4)
43	WPL 980648
43	WPL 311252
43	WPL 832790
43	WPL 310037
43	WPL 832848
43	WPL 832810
43	Wire (14 Ga. 150 c Blue)
43	screw, oval head (4)
43	WPL 832769
43	Wire (12 Ga. 150 c Black)
43	Wire (14 Ga. 150 c Yellow)
43	Wire (14 Ga. 150 c Orange)
43	Wire (14 Ga. 150 c Green)
43	Wire (14 Ga. 150 c Brown)
43	WP261869 Whirlpool Microwave Paint
43	242831 Whirlpool Oven Wire
43	WP482338 Whirlpool Refrigerator Adhesive
43	Wire, 25“ Roll (White 14 GA.)
43	Wire, 25` Roll (Red 14 Ga.)
43	18 Ga. 80~c Rating (Red)
43	Wire (14 Ga. 200 c Brown)
43	WPL 832765
43	WPL 328022
43	WPL 310847
43	WPL 261940
43	WPL 309600
43	WPL 307843
43	WPL 832763
43	261900 Whirlpool Microwave Spray
43	WPL 591014
43	1
43	Wire, 25` Roll (Black 14 Ga.)
