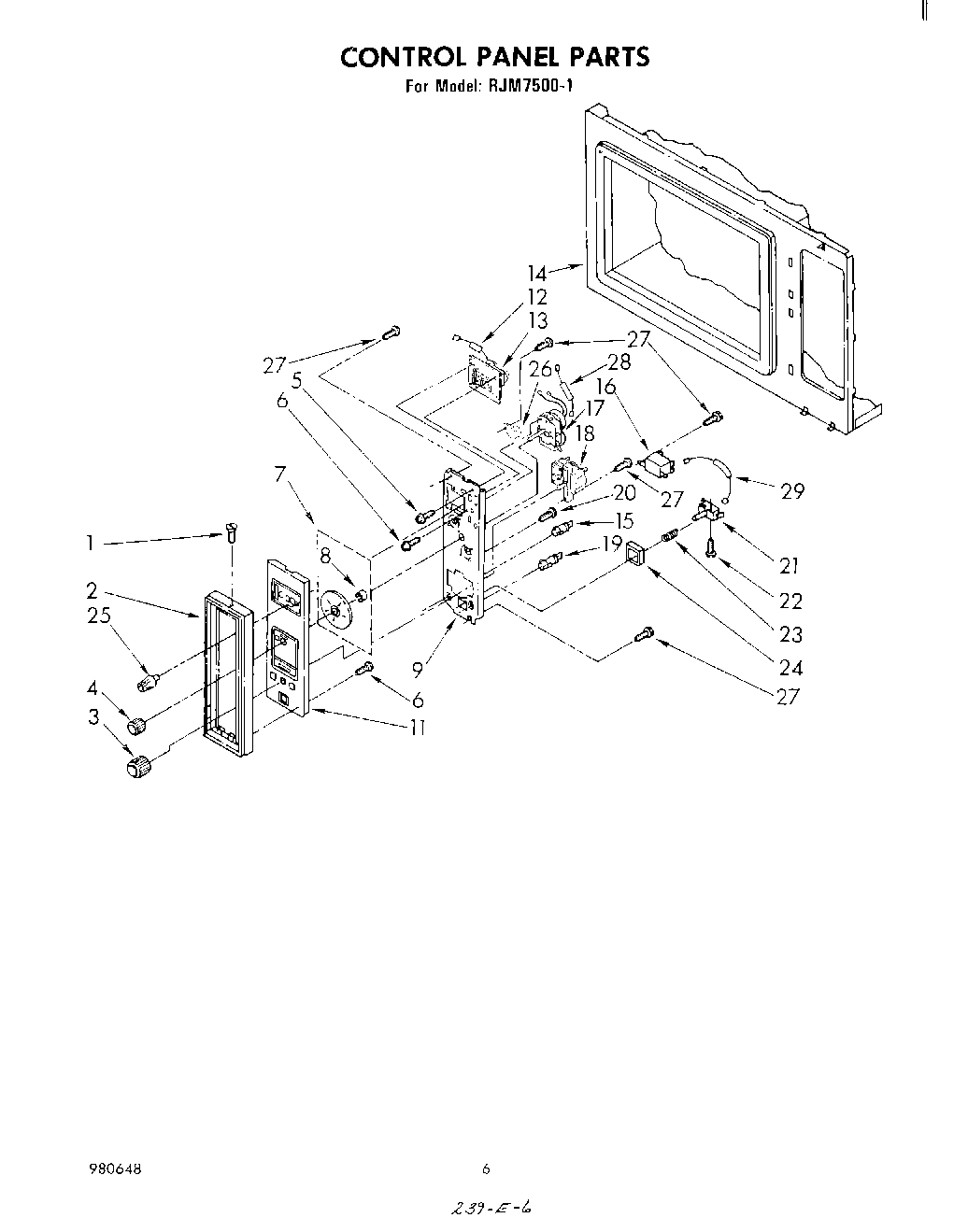

RJM75001 04 – CONTROL PANELadmin2025-04-26T12:05:41+00:00RJM75001 04 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | WP488627 Whirlpool Refrigerator Screw |
| 2 | Frame, Control Panel |
| 4 | Knob Assembly (2) |
| 5 | WP3390631 Whirlpool Screw |
| 6 | WP681249 Whirlpool Screw Assembly |
| 7 | Dial, Percentage Timer |
| 8 | Ring, Compression |
| 9 | Bracket, Support |
| 11 | Panel, Control |
| 12 | Resistor, 30HM |
| 13 | Timer, Digital (Microwave) |
| 14 | Cabinet (Not A Serviceable Part) |
| 16 | WPL 308243 |
| 16 | Relay, Latching (Alternate) |
| 17 | Timer, Percentage |
| 18 | Switch, Temperature Control |
| 19 | Light, Indicator (On) |
| 20 | Screw, 10-32 x 1/2 |
| 21 | Switch, Push-To-Start |
| 22 | Screw |
| 23 | Spring, Compression |
| 24 | Button, Push To Start |
| 25 | Knob, Digital |
| 26 | WPL 310351 |
| 27 | Screw |
| 28 | Resistor (10 Ohm) |
| 29 | resistor, power (3 ohm) |
